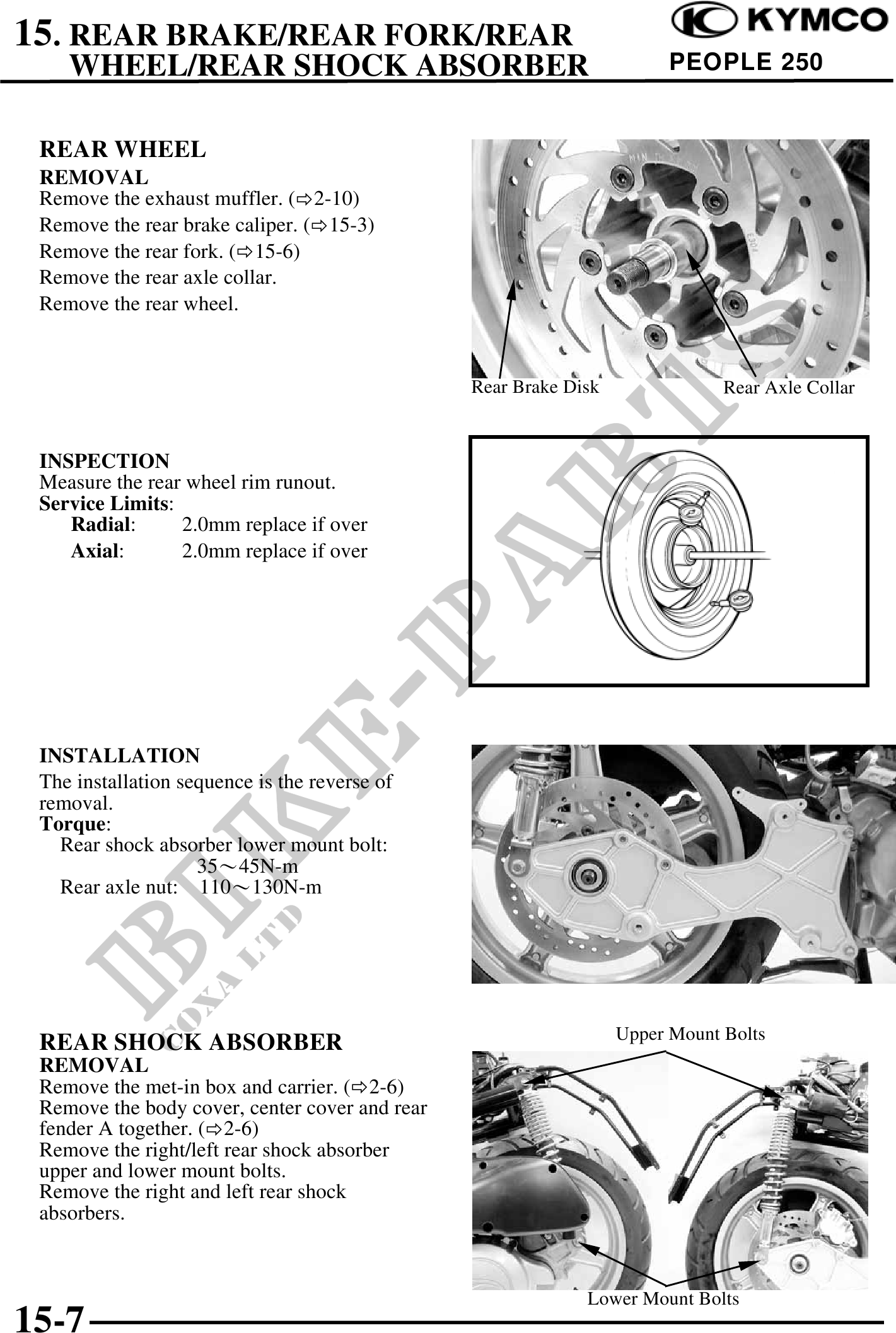

15. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER PEOPLE 250
REAR WHEEL
REMOVAL
Remove the exhaust muffler. ( 2-10)
Remove the rear brake caliper. ( 15-3)
Remove the rear fork. ( 15-6)
Remove the rear axle collar.
Remove the rear wheel.
Rear Brake Disk Rear Axle Collar
INSPECTION
Measure the rear wheel rim runout.
Service Limits:
Radial: 2.0mm replace if over
Axial: 2.0mm replace if over
INSTALLATION
The installation sequence is the reverse of
removal.
Torque:
Rear shock absorber lower mount bolt:
3545N-m
Rear axle nut: 110130N-m
Upper Mount Bolts
REAR SHOCK ABSORBER
REMOVAL
Remove the met-in box and carrier. ( 2-6)
Remove the body cover, center cover and rear
fender A together. ( 2-6)
Remove the right/left rear shock absorber
upper and lower mount bolts.
Remove the right and left rear shock
absorbers.
Lower Mount Bolts
15-7
