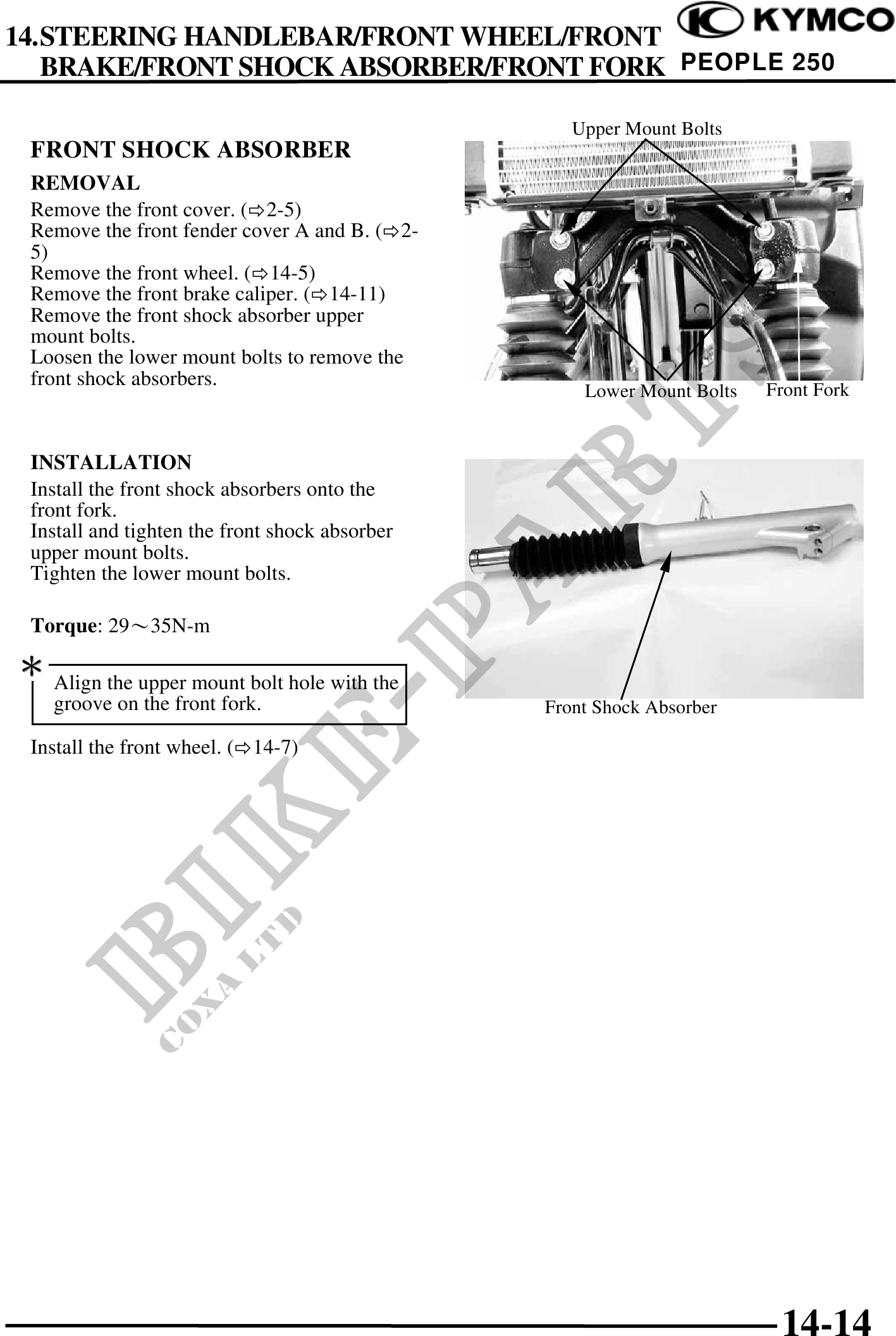

14.STEERING HANDLEBAR/FRONT WHEEL/FRONT
BRAKE/FRONT SHOCK ABSORBER/FRONT FORK PEOPLE 250
Upper Mount Bolts
FRONT SHOCK ABSORBER
REMOVAL
Remove the front cover. ( 2-5)
Remove the front fender cover A and B. ( 2-
5)
Remove the front wheel. ( 14-5)
Remove the front brake caliper. ( 14-11)
Remove the front shock absorber upper
mount bolts.
Loosen the lower mount bolts to remove the
front shock absorbers.
Lower Mount Bolts Front Fork
INSTALLATION
Install the front shock absorbers onto the
front fork.
Install and tighten the front shock absorber
upper mount bolts.
Tighten the lower mount bolts.
Torque: 2935N-m
Align the upper mount bolt hole with the
groove on the front fork. Front Shock Absorber
Install the front wheel. ( 14-7)
14-14
