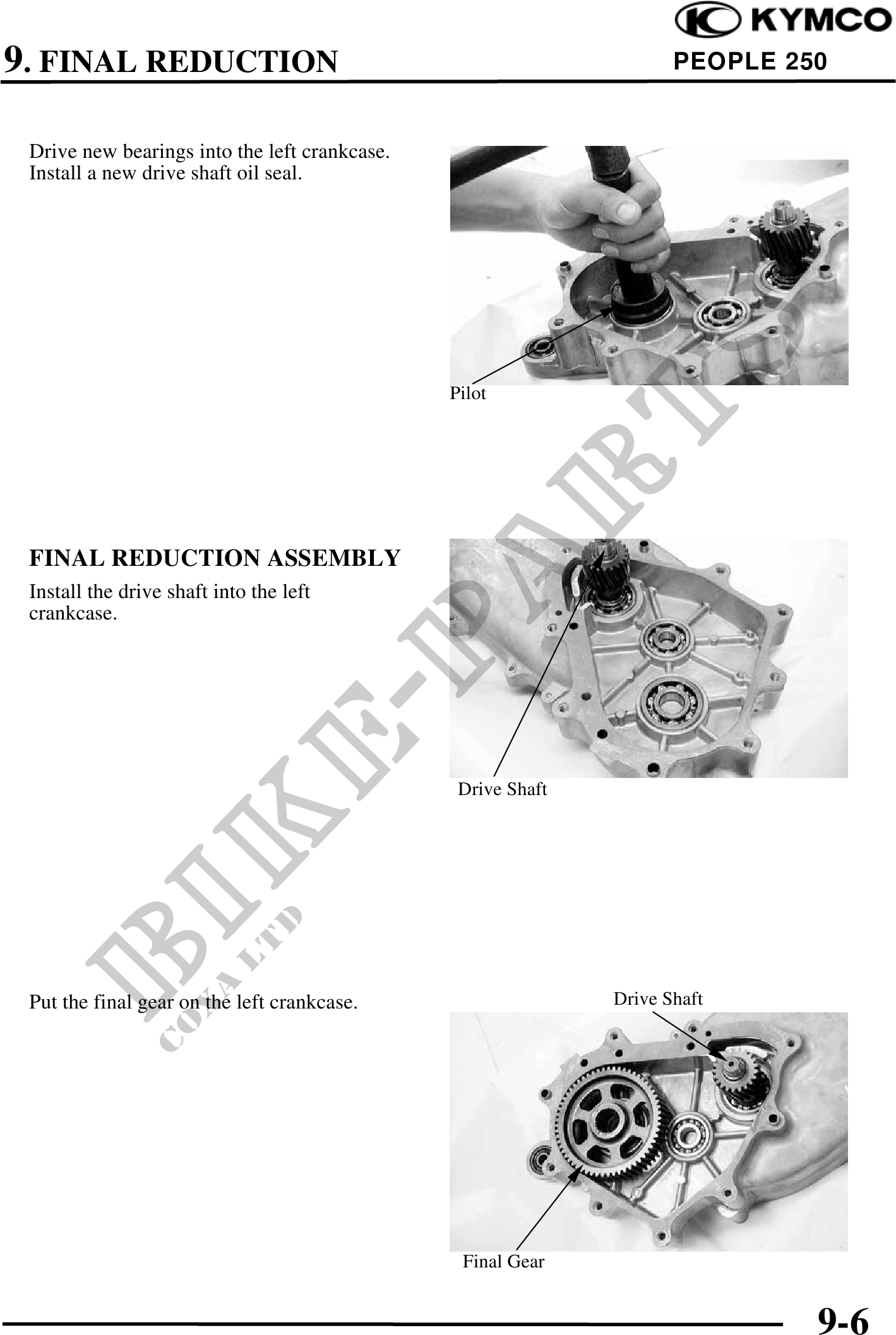

          9. FINAL REDUCTION                                                   PEOPLE 250


 Drive new bearings into the left crankcase.
 Install a new drive shaft oil seal.




                                               Pilot




 FINAL REDUCTION ASSEMBLY
 Install the drive shaft into the left
 crankcase.




                                                Drive Shaft




 Put the final gear on the left crankcase.                    Drive Shaft




                                                Final Gear


                                                                              9-6
