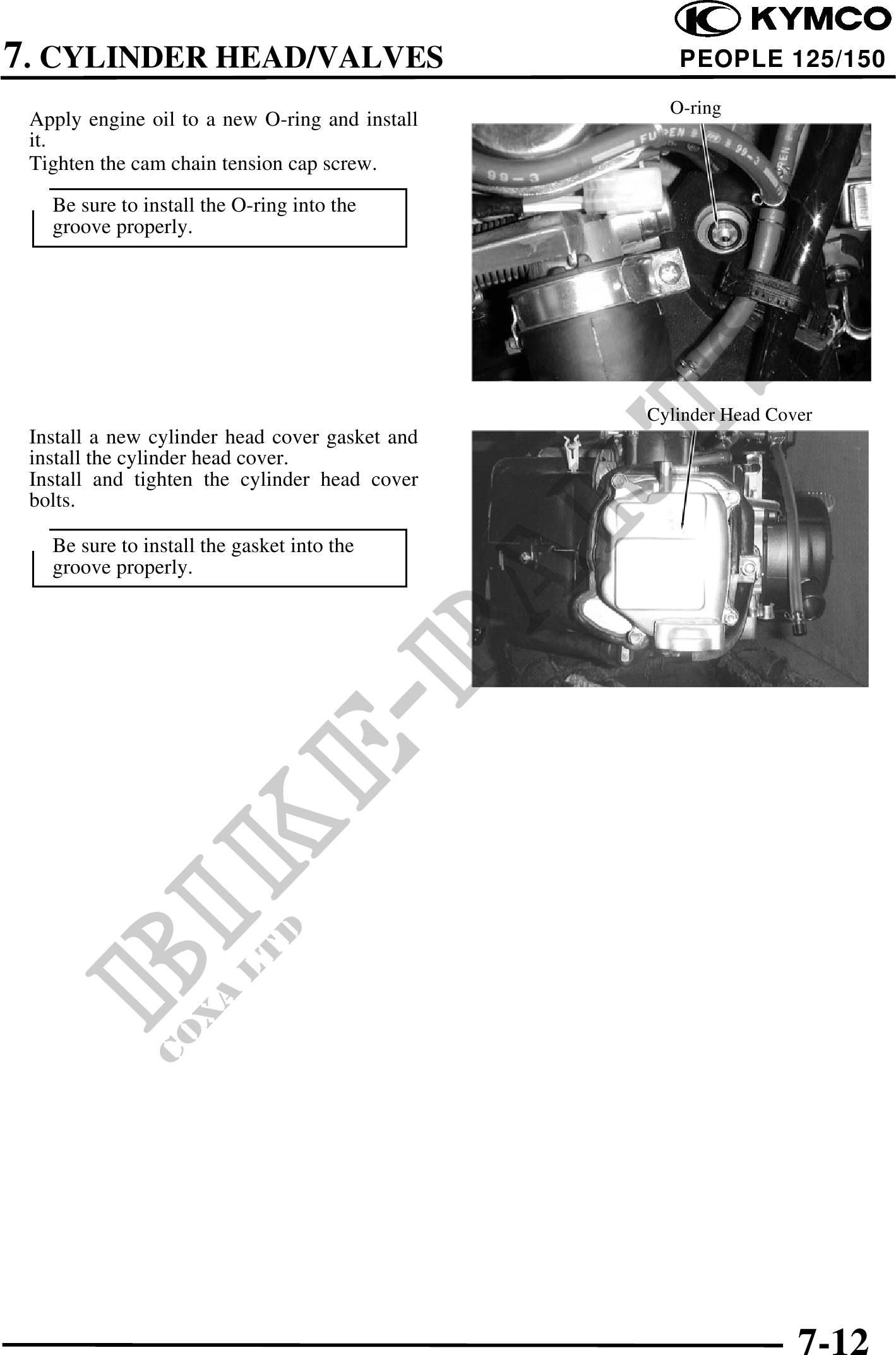

          7. CYLINDER HEAD/VALVES                            PEOPLE 125/150
                                                  O-ring
 Apply engine oil to a new O-ring and install
 it.
 Tighten the cam chain tension cap screw.

   Be sure to install the O-ring into the
   groove properly.




                                                Cylinder Head Cover
 Install a new cylinder head cover gasket and
 install the cylinder head cover.
 Install and tighten the cylinder head cover
 bolts.

   Be sure to install the gasket into the
   groove properly.




                                                                 7-12
