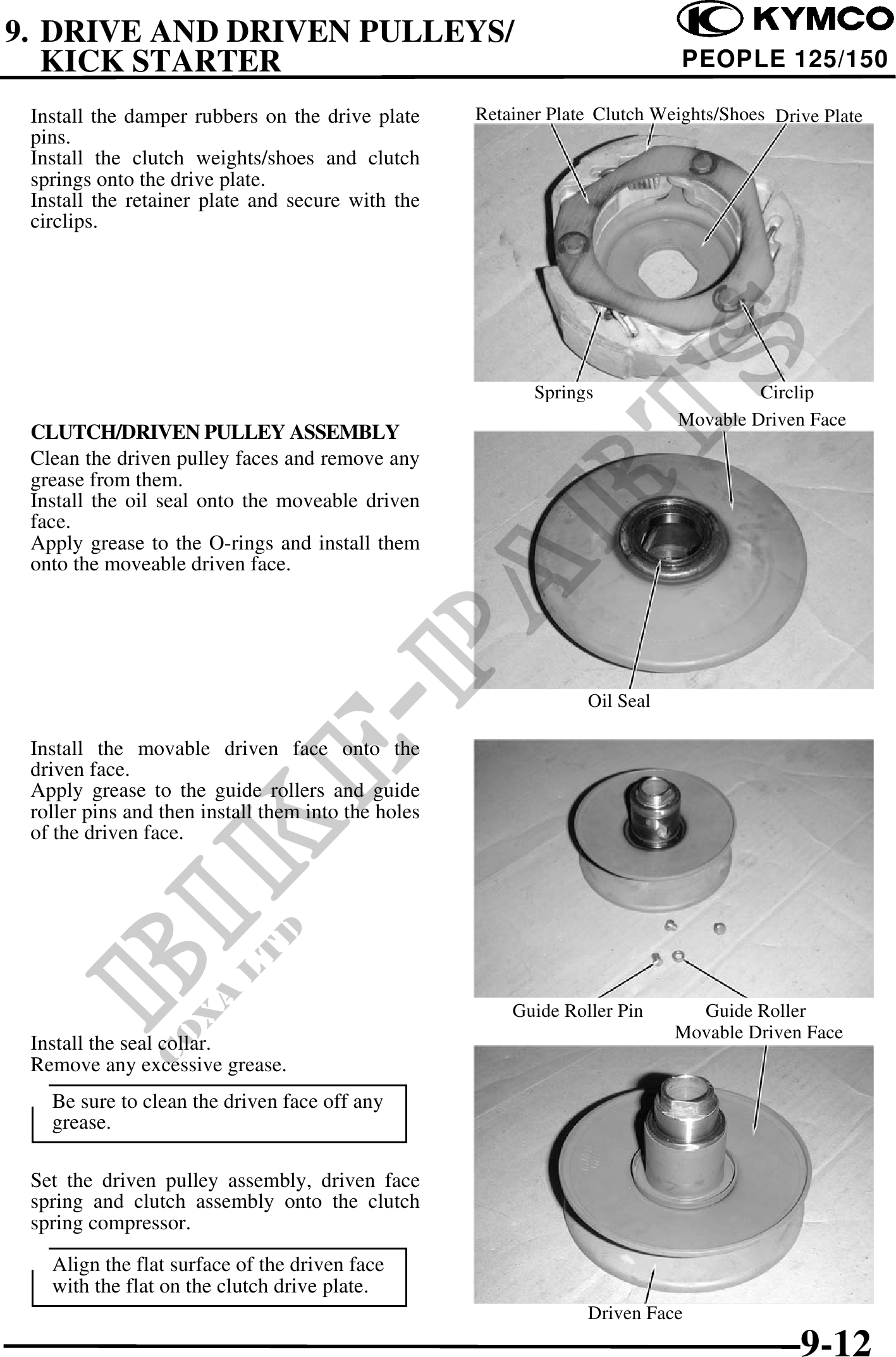

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER PEOPLE 125/150
Install the damper rubbers on the drive plate Retainer Plate Clutch Weights/Shoes Drive Plate
pins.
Install the clutch weights/shoes and clutch
springs onto the drive plate.
Install the retainer plate and secure with the
circlips.
Springs Circlip
Movable Driven Face
CLUTCH/DRIVEN PULLEY ASSEMBLY
Clean the driven pulley faces and remove any
grease from them.
Install the oil seal onto the moveable driven
face.
Apply grease to the O-rings and install them
onto the moveable driven face.
Oil Seal
Install the movable driven face onto the
driven face.
Apply grease to the guide rollers and guide
roller pins and then install them into the holes
of the driven face.
Guide Roller Pin Guide Roller
Movable Driven Face
Install the seal collar.
Remove any excessive grease.
Be sure to clean the driven face off any
grease.
Set the driven pulley assembly, driven face
spring and clutch assembly onto the clutch
spring compressor.
Align the flat surface of the driven face
with the flat on the clutch drive plate.
Driven Face
9-12
