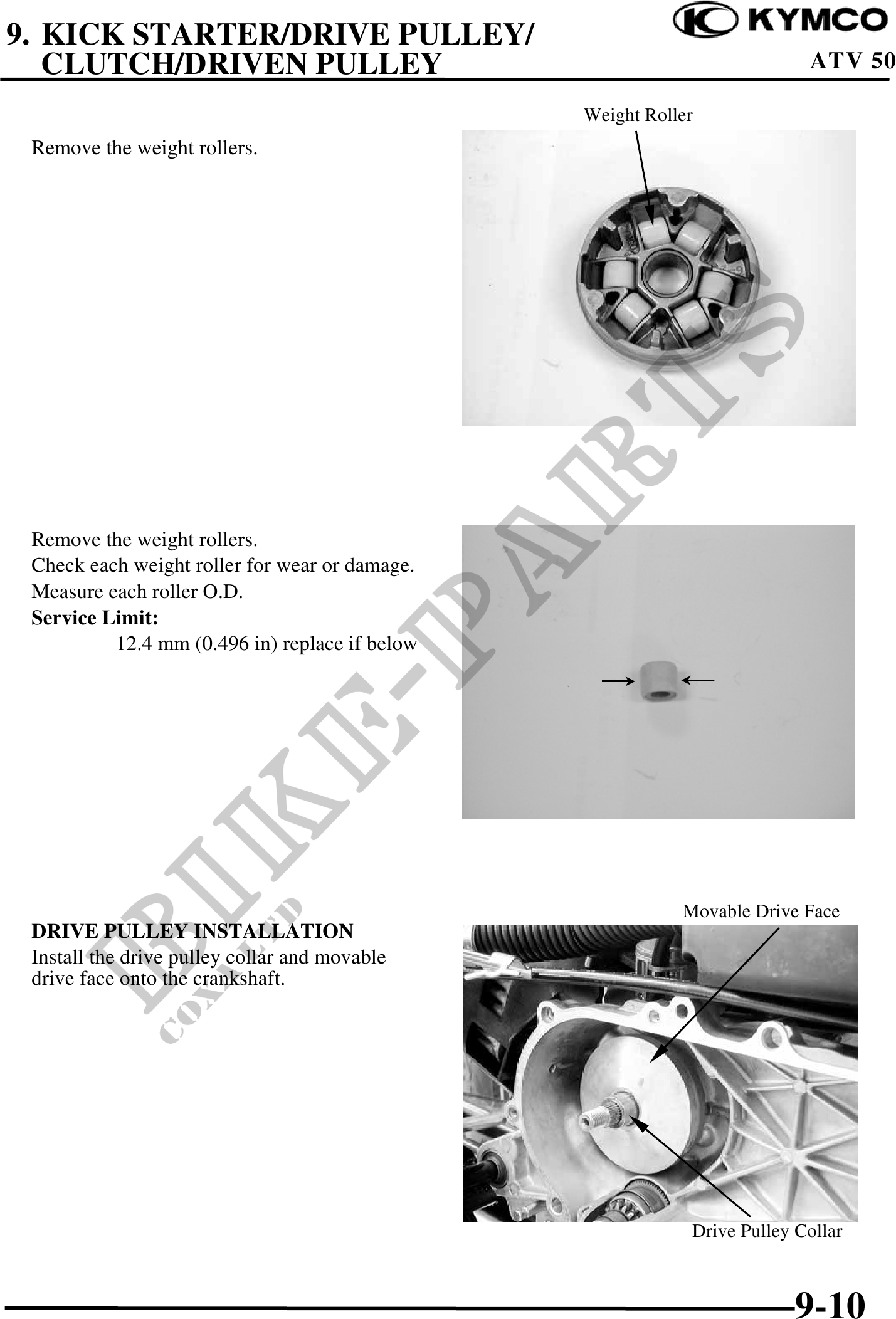

          9. KICK STARTER/DRIVE PULLEY/
   CLUTCH/DRIVEN PULLEY                                                   ATV 50

                                                Weight Roller
 Remove the weight rollers.




 Remove the weight rollers.
 Check each weight roller for wear or damage.
 Measure each roller O.D.
 Service Limit:
          12.4 mm (0.496 in) replace if below




                                                           Movable Drive Face
 DRIVE PULLEY INSTALLATION
 Install the drive pulley collar and movable
 drive face onto the crankshaft.




                                                            Drive Pulley Collar



                                                                         9-10
