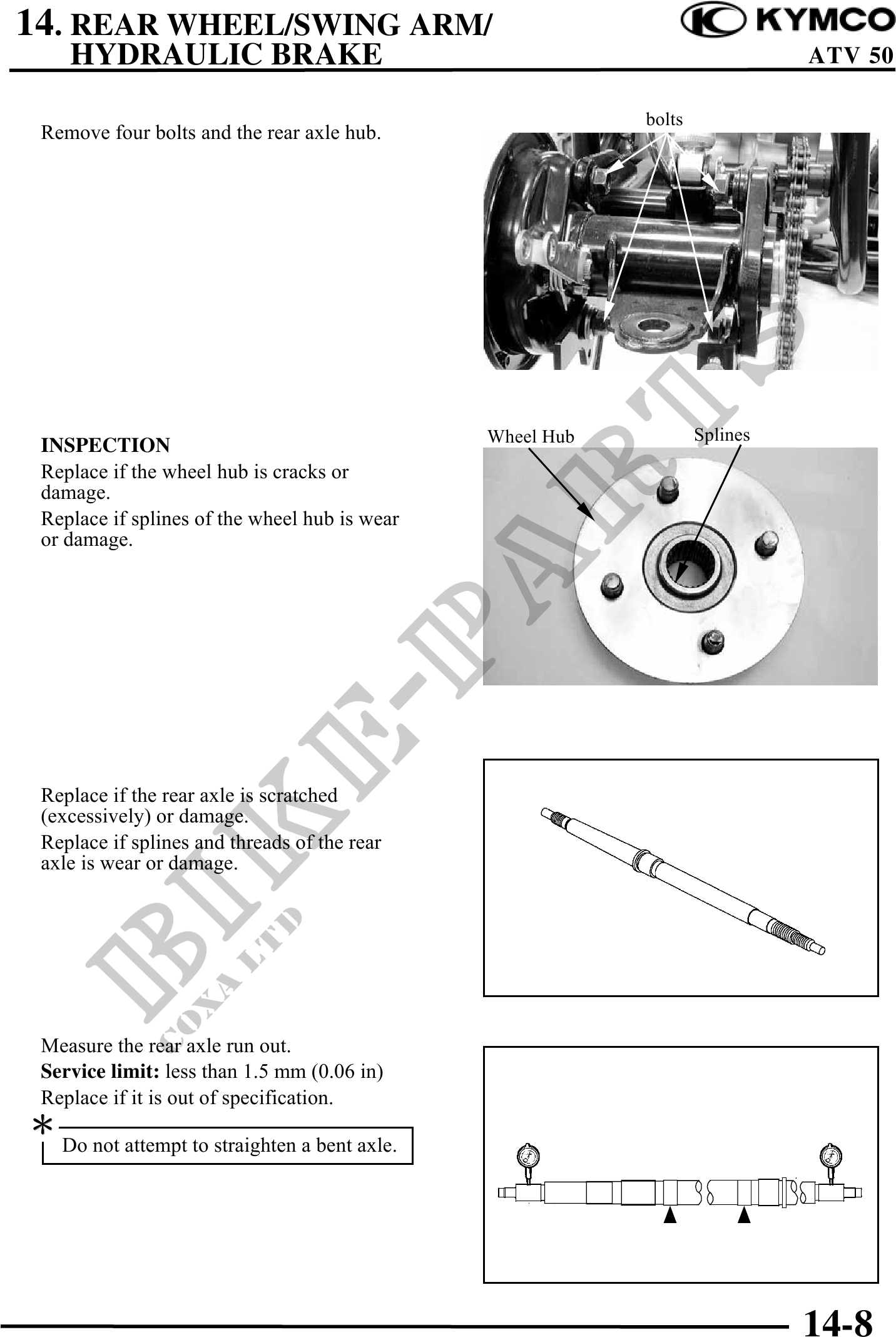

          14. REAR WHEEL/SWING ARM/
    HYDRAULIC BRAKE                                                          ATV 50

                                                           bolts
 Remove four bolts and the rear axle hub.




                                               Wheel Hub           Splines
 INSPECTION
 Replace if the wheel hub is cracks or
 damage.
 Replace if splines of the wheel hub is wear
 or damage.




 Replace if the rear axle is scratched
 (excessively) or damage.
 Replace if splines and threads of the rear
 axle is wear or damage.




 Measure the rear axle run out.
 Service limit: less than 1.5 mm (0.06 in)
 Replace if it is out of specification.

   Do not attempt to straighten a bent axle.




                                                                             14-8
