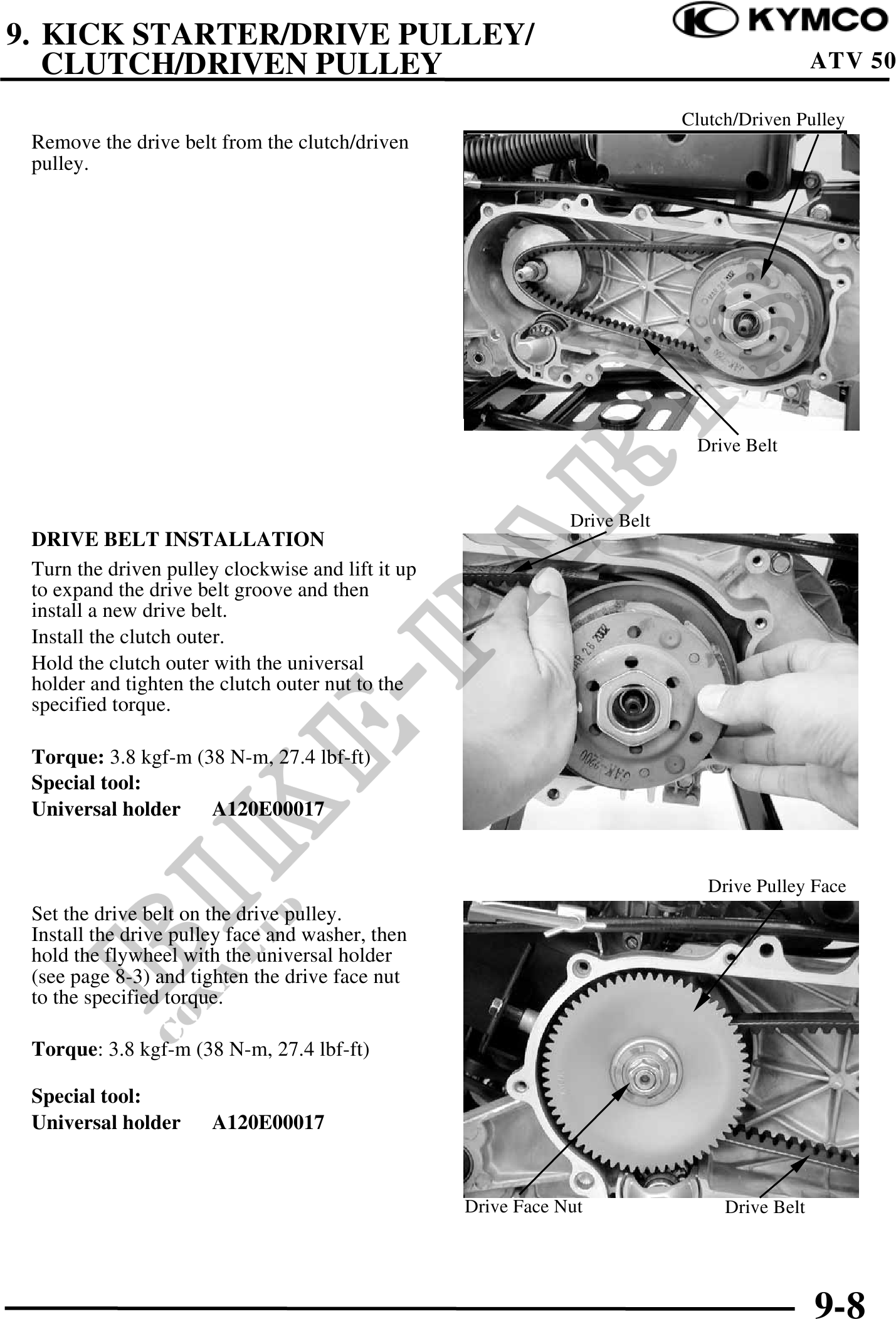

          9. KICK STARTER/DRIVE PULLEY/
   CLUTCH/DRIVEN PULLEY                                                                       ATV 50

                                                                            Clutch/Driven Pulley
 Remove the drive belt from the clutch/driven
 pulley.




                                                                             Drive Belt


                                                               Drive Belt
 DRIVE BELT INSTALLATION
 Turn the driven pulley clockwise and lift it up
 to expand the drive belt groove and then
 install a new drive belt.
 Install the clutch outer.
 Hold the clutch outer with the universal
 holder and tighten the clutch outer nut to the
 specified torque.

 Torque: 3.8 kgf-m (38 N-m, 27.4 lbf-ft)
 Special tool:
 Universal holder    A120E00017


                                                                               Drive Pulley Face
 Set the drive belt on the drive pulley.
 Install the drive pulley face and washer, then
 hold the flywheel with the universal holder
 (see page 8-3) and tighten the drive face nut
 to the specified torque.

 Torque: 3.8 kgf-m (38 N-m, 27.4 lbf-ft)

 Special tool:
 Universal holder      A120E00017


                                                   Drive Face Nut                Drive Belt




                                                                                              9-8
