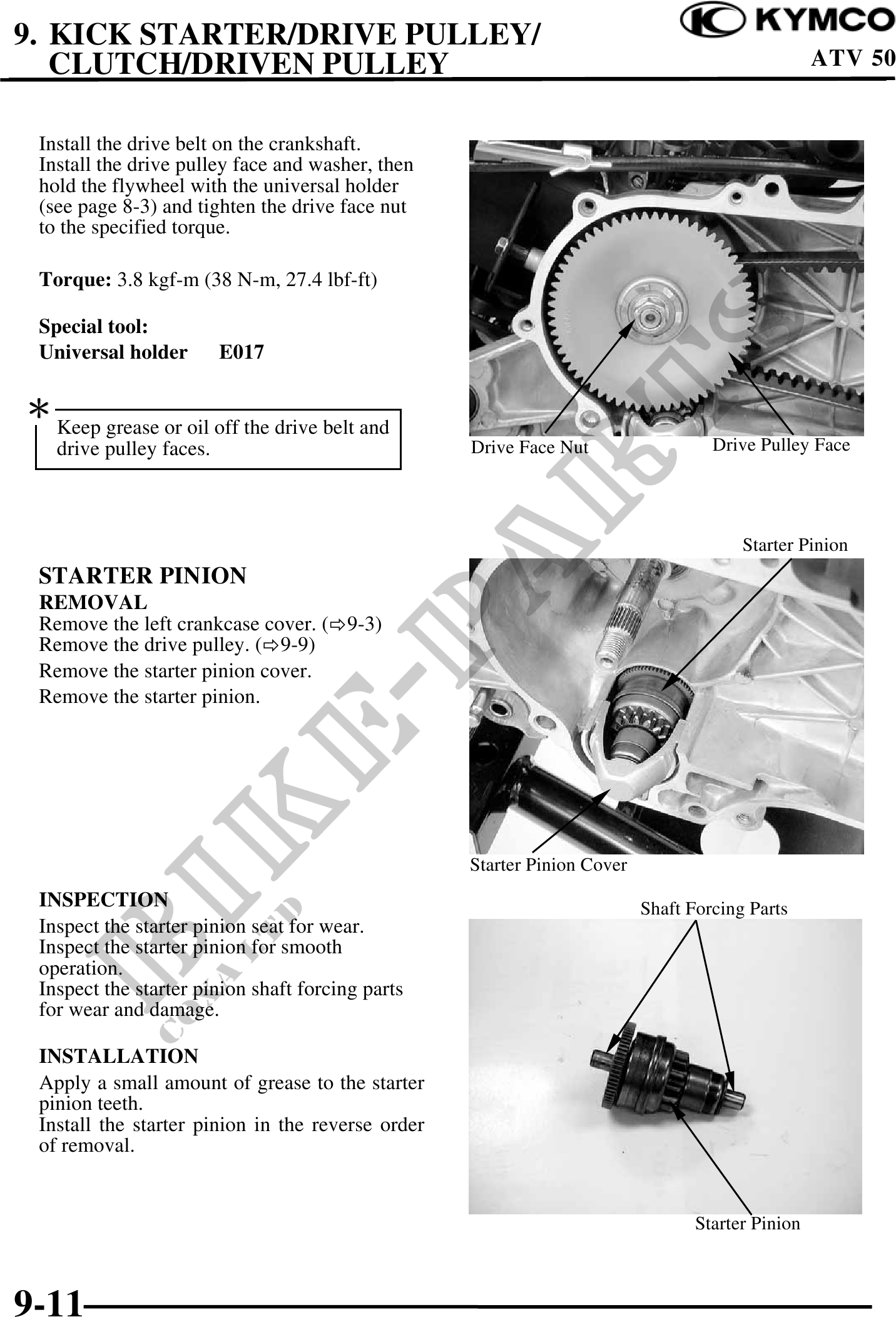

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY ATV 50
Install the drive belt on the crankshaft.
Install the drive pulley face and washer, then
hold the flywheel with the universal holder
(see page 8-3) and tighten the drive face nut
to the specified torque.
Torque: 3.8 kgf-m (38 N-m, 27.4 lbf-ft)
Special tool:
Universal holder E017
Keep grease or oil off the drive belt and
drive pulley faces. Drive Face Nut Drive Pulley Face
Starter Pinion
STARTER PINION
REMOVAL
Remove the left crankcase cover. ( 9-3)
Remove the drive pulley. ( 9-9)
Remove the starter pinion cover.
Remove the starter pinion.
Starter Pinion Cover
INSPECTION Shaft Forcing Parts
Inspect the starter pinion seat for wear.
Inspect the starter pinion for smooth
operation.
Inspect the starter pinion shaft forcing parts
for wear and damage.
INSTALLATION
Apply a small amount of grease to the starter
pinion teeth.
Install the starter pinion in the reverse order
of removal.
Starter Pinion
