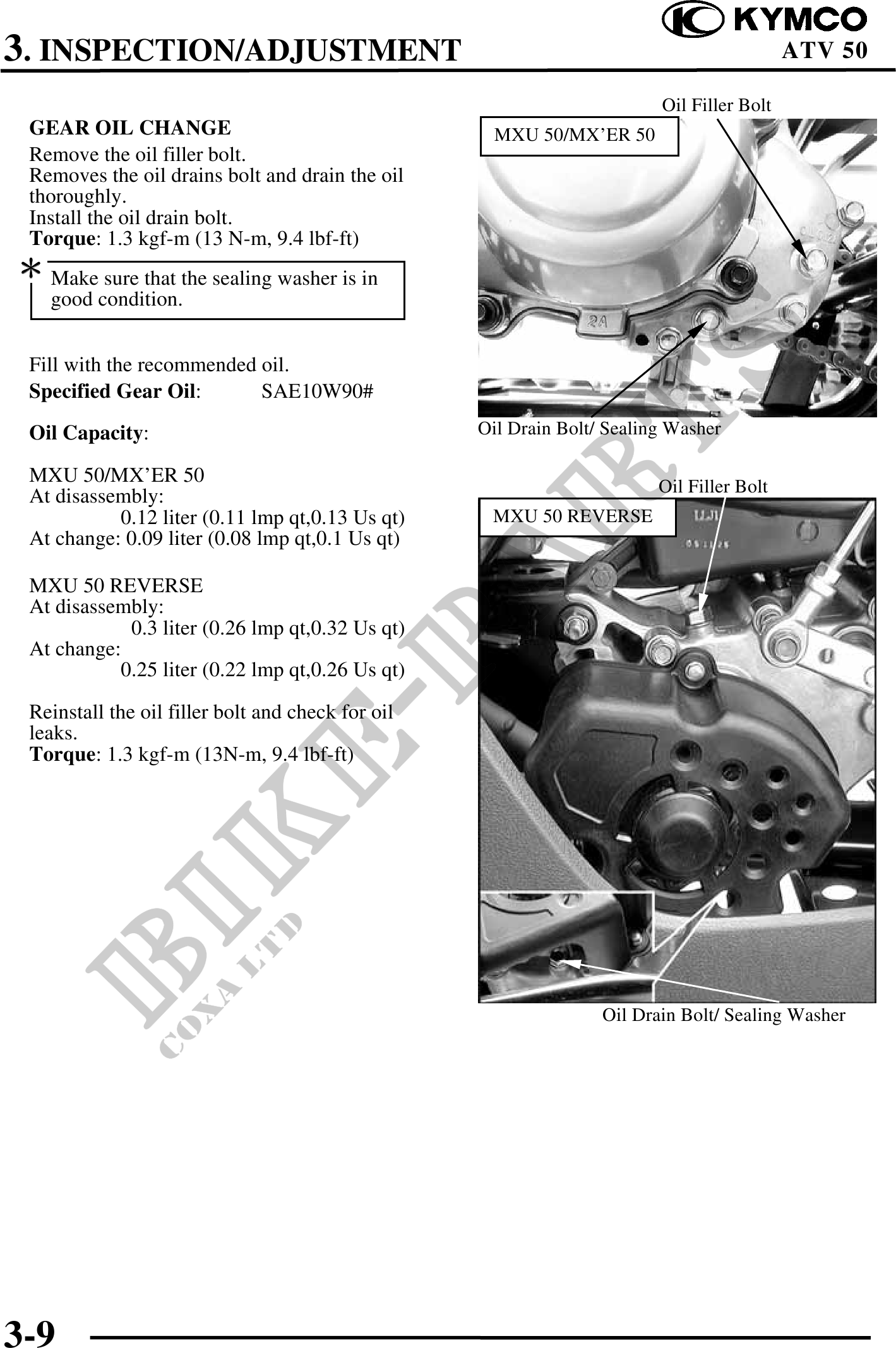

          3. INSPECTION/ADJUSTMENT                                                                   ATV 50

                                                                         Oil Filler Bolt
 GEAR OIL CHANGE                                     MXU 50/MX'ER 50
 Remove the oil filler bolt.
 Removes the oil drains bolt and drain the oil
 thoroughly.
 Install the oil drain bolt.
 Torque: 1.3 kgf-m (13 N-m, 9.4 lbf-ft)
 Make sure that the sealing washer is in
   good condition.


 Fill with the recommended oil.
 Specified Gear Oil:       SAE10W90#

 Oil Capacity:                                     Oil Drain Bolt/ Sealing Washer

 MXU 50/MX'ER 50
                                                                         Oil Filler Bolt
 At disassembly:
           0.12 liter (0.11 lmp qt,0.13 Us qt)      MXU 50 REVERSE
 At change: 0.09 liter (0.08 lmp qt,0.1 Us qt)

 MXU 50 REVERSE
 At disassembly:
            0.3 liter (0.26 lmp qt,0.32 Us qt)
 At change:
           0.25 liter (0.22 lmp qt,0.26 Us qt)

 Reinstall the oil filler bolt and check for oil
 leaks.
 Torque: 1.3 kgf-m (13N-m, 9.4 lbf-ft)




                                                                  Oil Drain Bolt/ Sealing Washer
