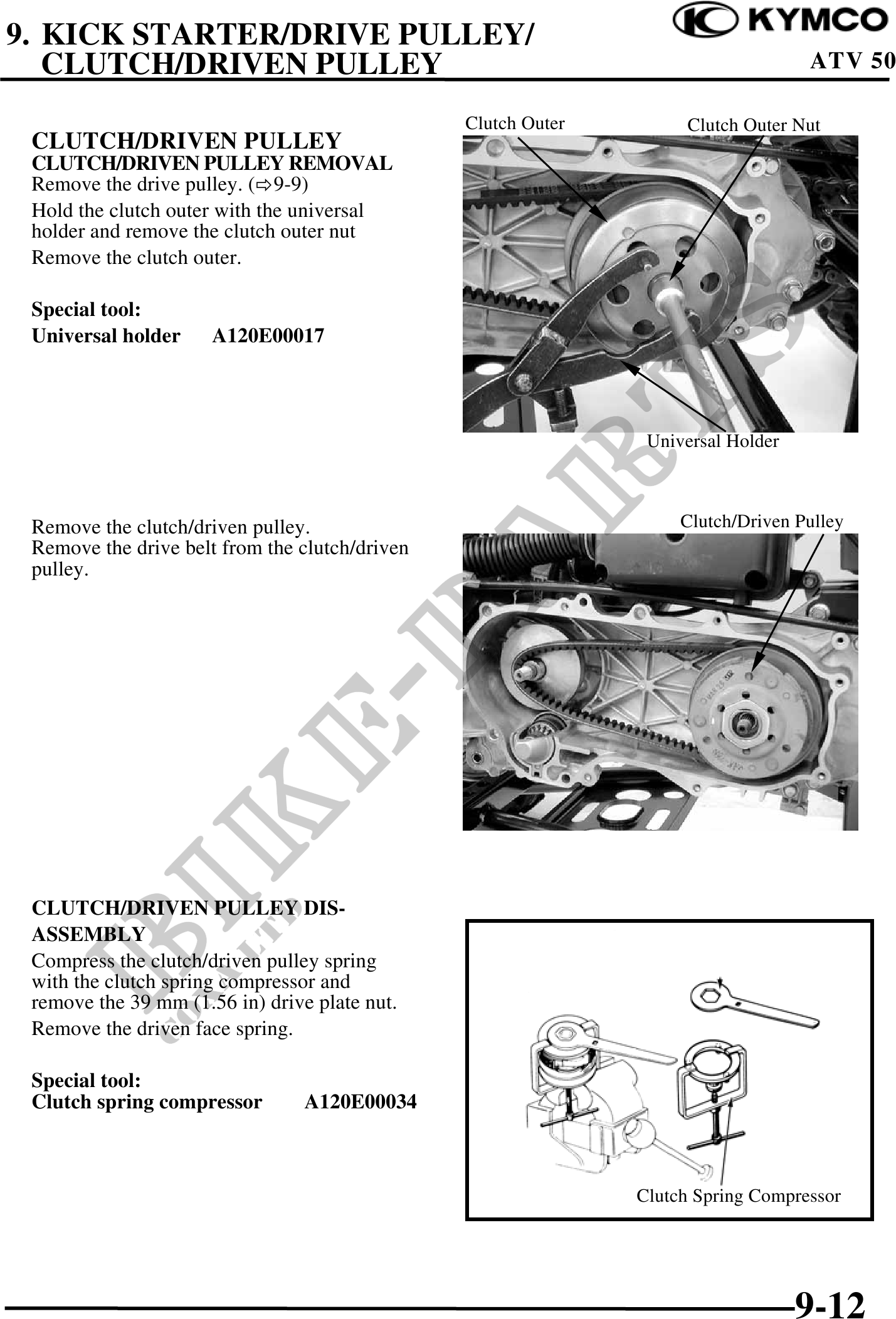

          9. KICK STARTER/DRIVE PULLEY/
   CLUTCH/DRIVEN PULLEY                                                            ATV 50

                                                Clutch Outer        Clutch Outer Nut
 CLUTCH/DRIVEN PULLEY
 CLUTCH/DRIVEN PULLEY REMOVAL
 Remove the drive pulley. ( 9-9)
 Hold the clutch outer with the universal
 holder and remove the clutch outer nut
 Remove the clutch outer.

 Special tool:
 Universal holder     A120E00017




                                                                Universal Holder



 Remove the clutch/driven pulley.                                   Clutch/Driven Pulley
 Remove the drive belt from the clutch/driven
 pulley.




 CLUTCH/DRIVEN PULLEY DIS-
 ASSEMBLY
 Compress the clutch/driven pulley spring
 with the clutch spring compressor and
 remove the 39 mm (1.56 in) drive plate nut.
 Remove the driven face spring.

 Special tool:
 Clutch spring compressor        A120E00034



                                                               Clutch Spring Compressor




                                                                                   9-12
