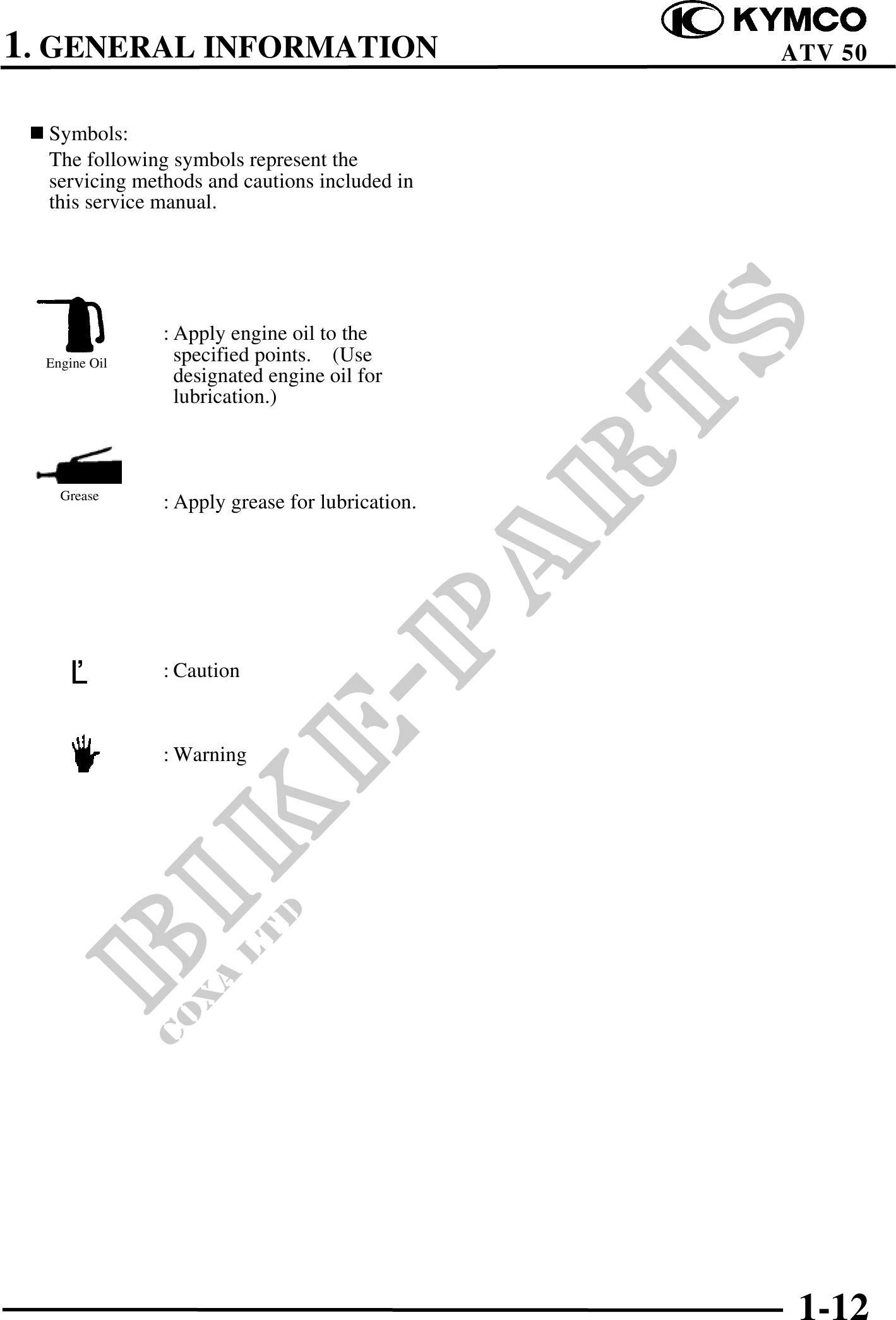

          1. GENERAL INFORMATION                           ATV 50


  Symbols:
  The following symbols represent the
  servicing methods and cautions included in
  this service manual.




               : Apply engine oil to the
  Engine Oil     specified points. (Use
                 designated engine oil for
                 lubrication.)



    Grease
               : Apply grease for lubrication.


   Special




               : Caution



               : Warning




                                                  1-12
