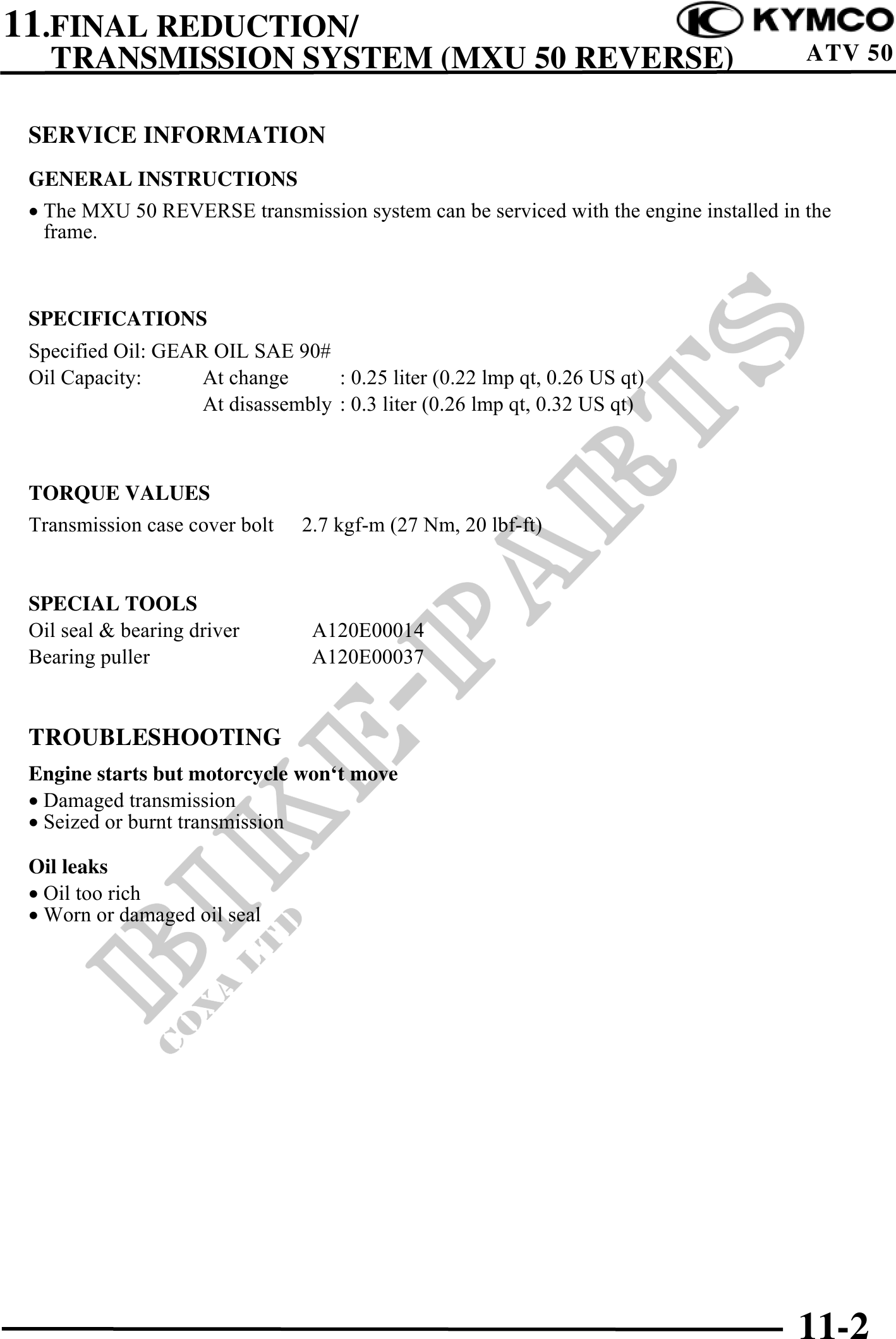

11.FINAL REDUCTION/
TRANSMISSION SYSTEM (MXU 50 REVERSE) ATV 50
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· The MXU 50 REVERSE transmission system can be serviced with the engine installed in the
frame.
SPECIFICATIONS
Specified Oil: GEAR OIL SAE 90#
Oil Capacity: At change : 0.25 liter (0.22 lmp qt, 0.26 US qt)
At disassembly : 0.3 liter (0.26 lmp qt, 0.32 US qt)
TORQUE VALUES
Transmission case cover bolt 2.7 kgf-m (27 Nm, 20 lbf-ft)
SPECIAL TOOLS
Oil seal & bearing driver A120E00014
Bearing puller A120E00037
TROUBLESHOOTING
Engine starts but motorcycle won`t move
· Damaged transmission
· Seized or burnt transmission
Oil leaks
· Oil too rich
· Worn or damaged oil seal
11-2
