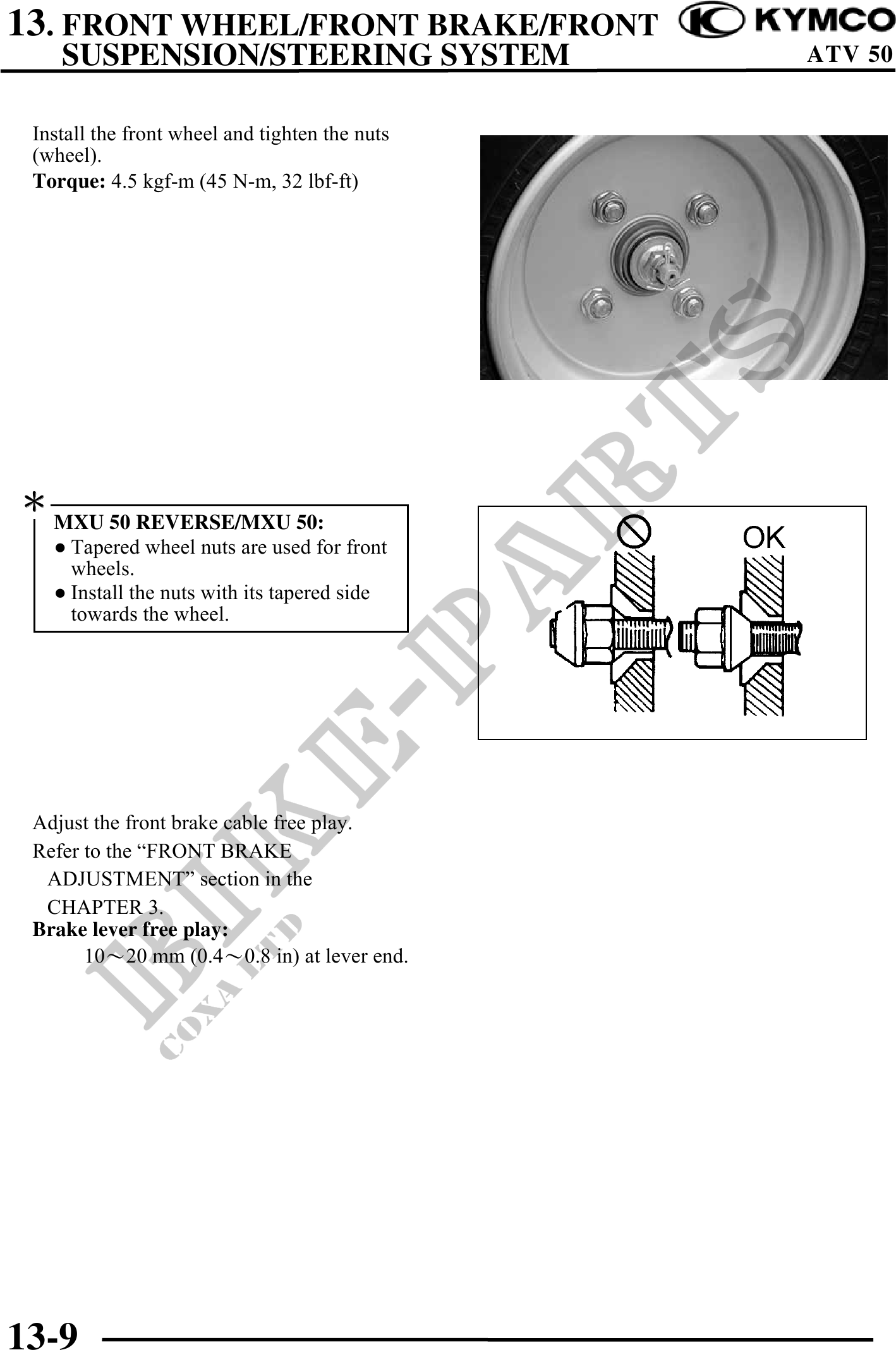

          13. FRONT WHEEL/FRONT BRAKE/FRONT
    SUSPENSION/STEERING SYSTEM                  ATV 50


 Install the front wheel and tighten the nuts
 (wheel).
 Torque: 4.5 kgf-m (45 N-m, 32 lbf-ft)





   MXU 50 REVERSE/MXU 50:
    Tapered wheel nuts are used for front
    wheels.
    Install the nuts with its tapered side
    towards the wheel.




 Adjust the front brake cable free play.
 Refer to the "FRONT BRAKE
  ADJUSTMENT" section in the
  CHAPTER 3.
 Brake lever free play:
       1020 mm (0.40.8 in) at lever end.




13-9
