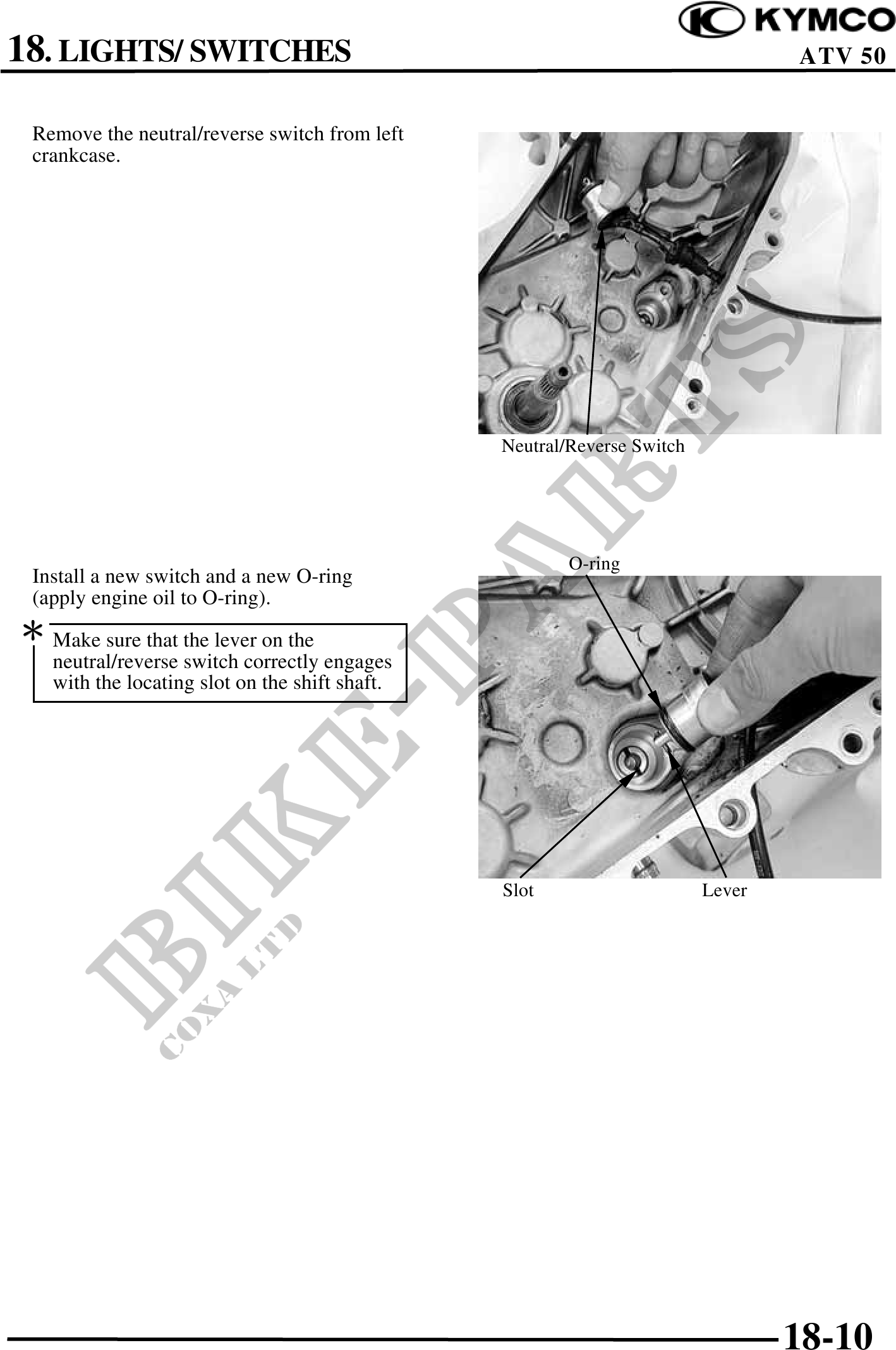

          18. LIGHTS/ SWITCHES                                                             ATV 50


 Remove the neutral/reverse switch from left
 crankcase.




                                                Neutral/Reverse Switch




                                                        O-ring
 Install a new switch and a new O-ring
 (apply engine oil to O-ring).
 Make sure that the lever on the
   neutral/reverse switch correctly engages
   with the locating slot on the shift shaft.




                                                Slot                     Lever




                                                                                 18-10
