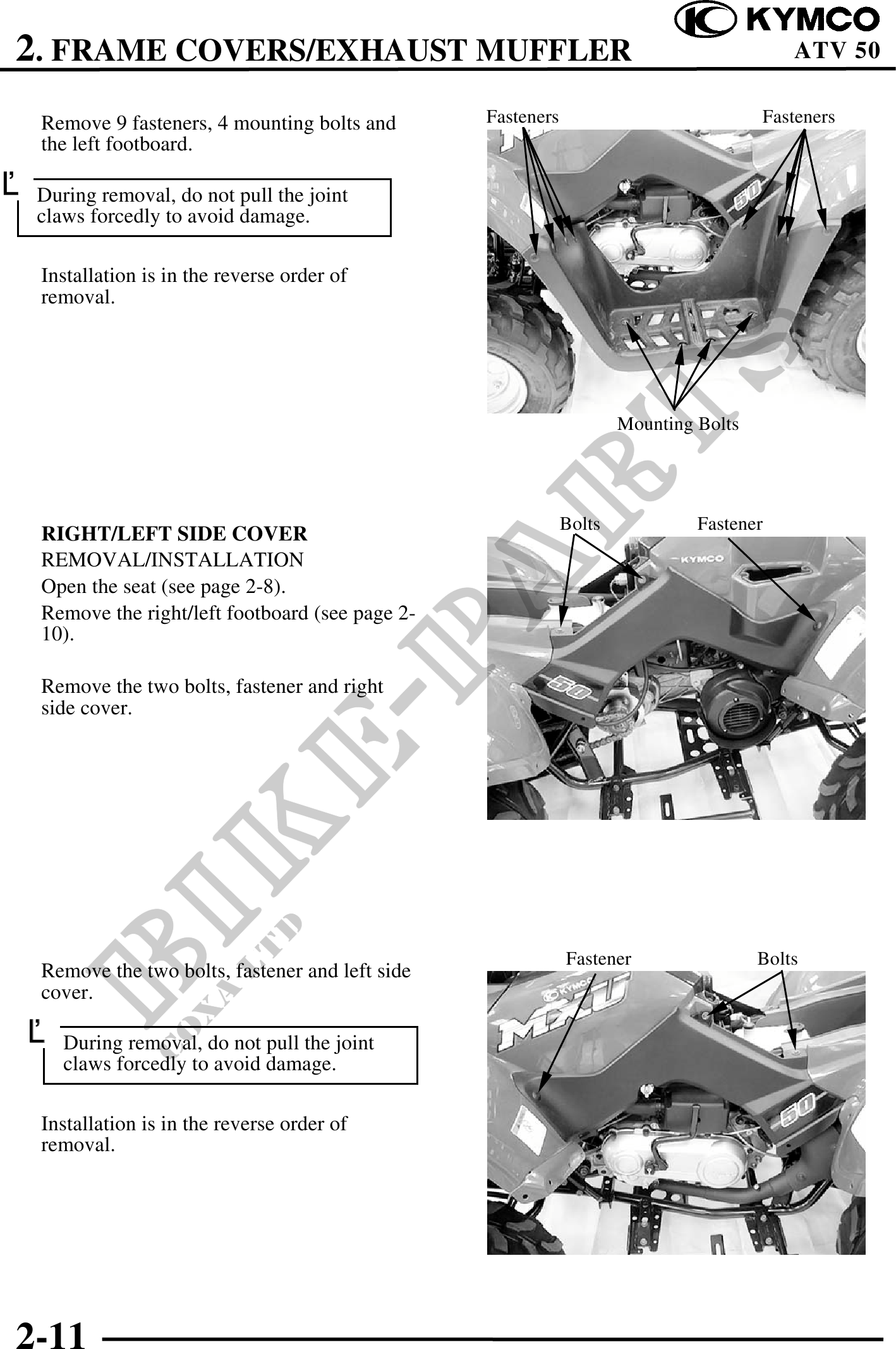

           2. FRAME COVERS/EXHAUST MUFFLER                                                            ATV 50

    Remove 9 fasteners, 4 mounting bolts and       Fasteners                            Fasteners
    the left footboard.

 During removal, do not pull the joint
   claws forcedly to avoid damage.

    Installation is in the reverse order of
    removal.




                                                                       Mounting Bolts




                                                               Bolts            Fastener
    RIGHT/LEFT SIDE COVER
    REMOVAL/INSTALLATION
    Open the seat (see page 2-8).
    Remove the right/left footboard (see page 2-
    10).

    Remove the two bolts, fastener and right
    side cover.




                                                               Fastener                 Bolts
    Remove the two bolts, fastener and left side
    cover.

   During removal, do not pull the joint
      claws forcedly to avoid damage.

    Installation is in the reverse order of
    removal.




 2-11
