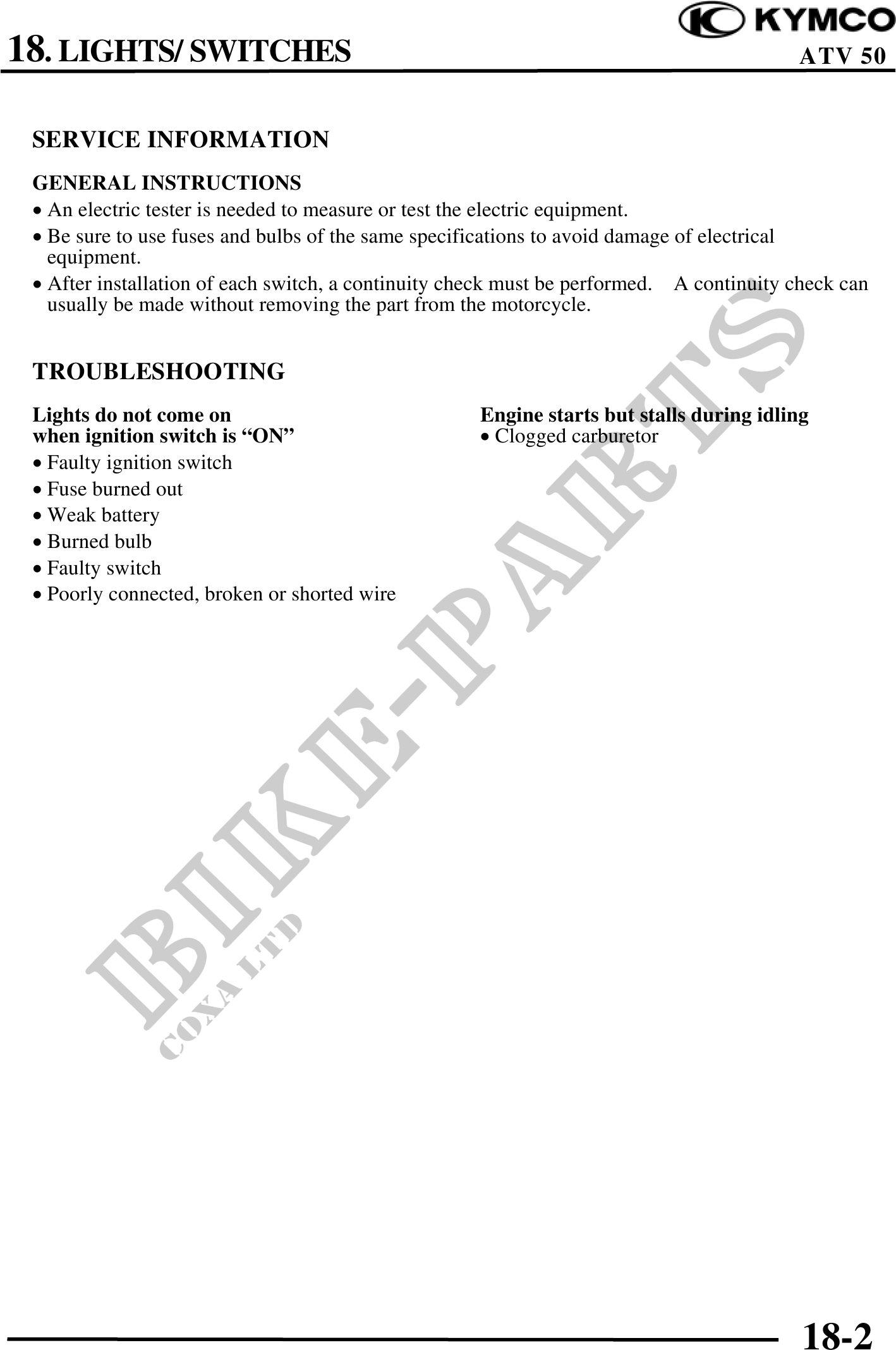

18. LIGHTS/ SWITCHES ATV 50
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· An electric tester is needed to measure or test the electric equipment.
· Be sure to use fuses and bulbs of the same specifications to avoid damage of electrical
equipment.
· After installation of each switch, a continuity check must be performed. A continuity check can
usually be made without removing the part from the motorcycle.
TROUBLESHOOTING
Lights do not come on Engine starts but stalls during idling
when ignition switch is "ON" · Clogged carburetor
· Faulty ignition switch
· Fuse burned out
· Weak battery
· Burned bulb
· Faulty switch
· Poorly connected, broken or shorted wire
18-2
