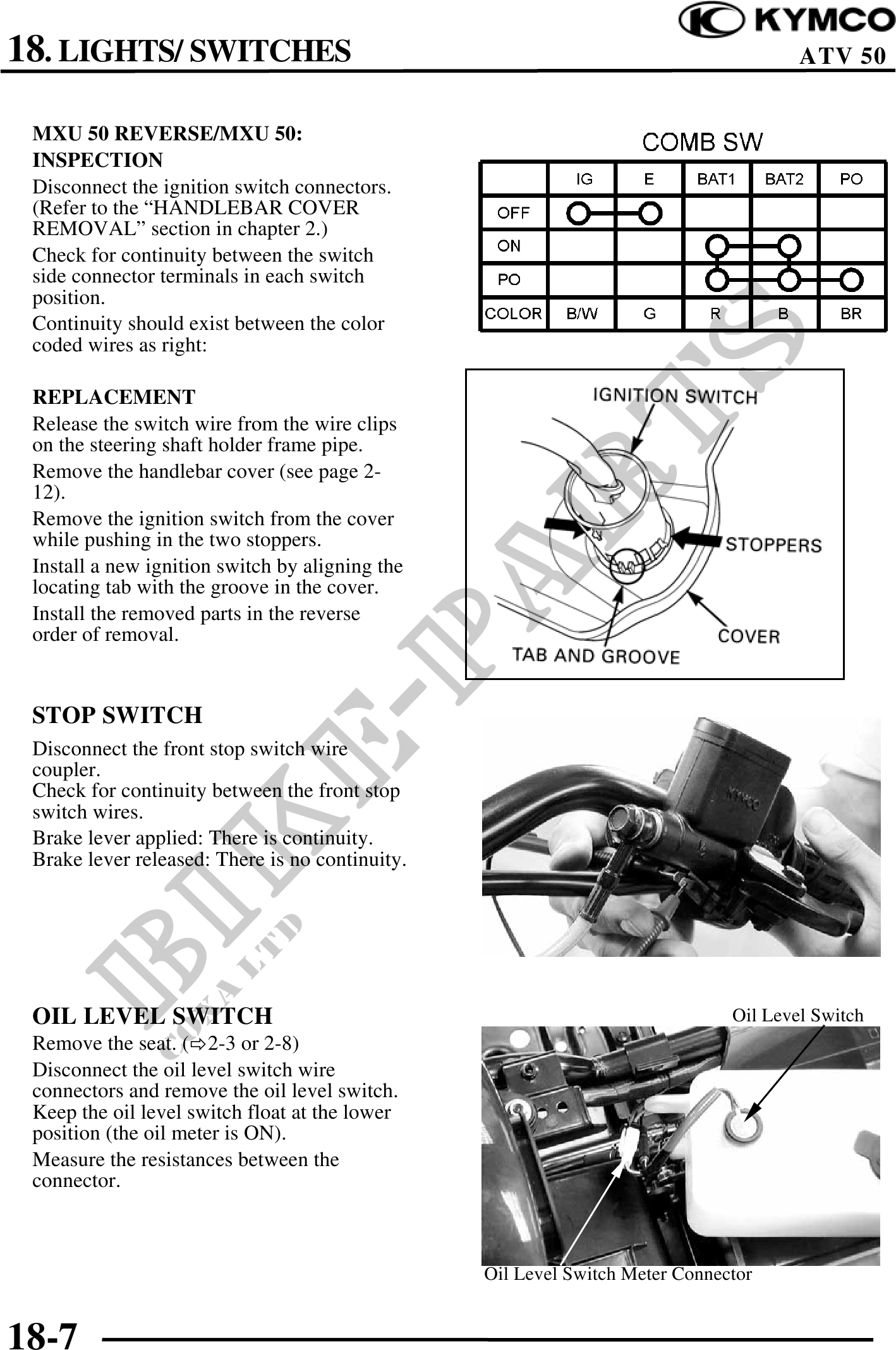

          18. LIGHTS/ SWITCHES                                                                  ATV 50


 MXU 50 REVERSE/MXU 50:
 INSPECTION
 Disconnect the ignition switch connectors.
 (Refer to the "HANDLEBAR COVER
 REMOVAL" section in chapter 2.)
 Check for continuity between the switch
 side connector terminals in each switch
 position.
 Continuity should exist between the color
 coded wires as right:

 REPLACEMENT
 Release the switch wire from the wire clips
 on the steering shaft holder frame pipe.
 Remove the handlebar cover (see page 2-
 12).
 Remove the ignition switch from the cover
 while pushing in the two stoppers.
 Install a new ignition switch by aligning the
 locating tab with the groove in the cover.
 Install the removed parts in the reverse
 order of removal.


 STOP SWITCH
 Disconnect the front stop switch wire
 coupler.
 Check for continuity between the front stop
 switch wires.
 Brake lever applied: There is continuity.
 Brake lever released: There is no continuity.




 OIL LEVEL SWITCH                                                             Oil Level Switch
 Remove the seat. ( 2-3 or 2-8)
 Disconnect the oil level switch wire
 connectors and remove the oil level switch.
 Keep the oil level switch float at the lower
 position (the oil meter is ON).
 Measure the resistances between the
 connector.



                                                 Oil Level Switch Meter Connector


18-7
