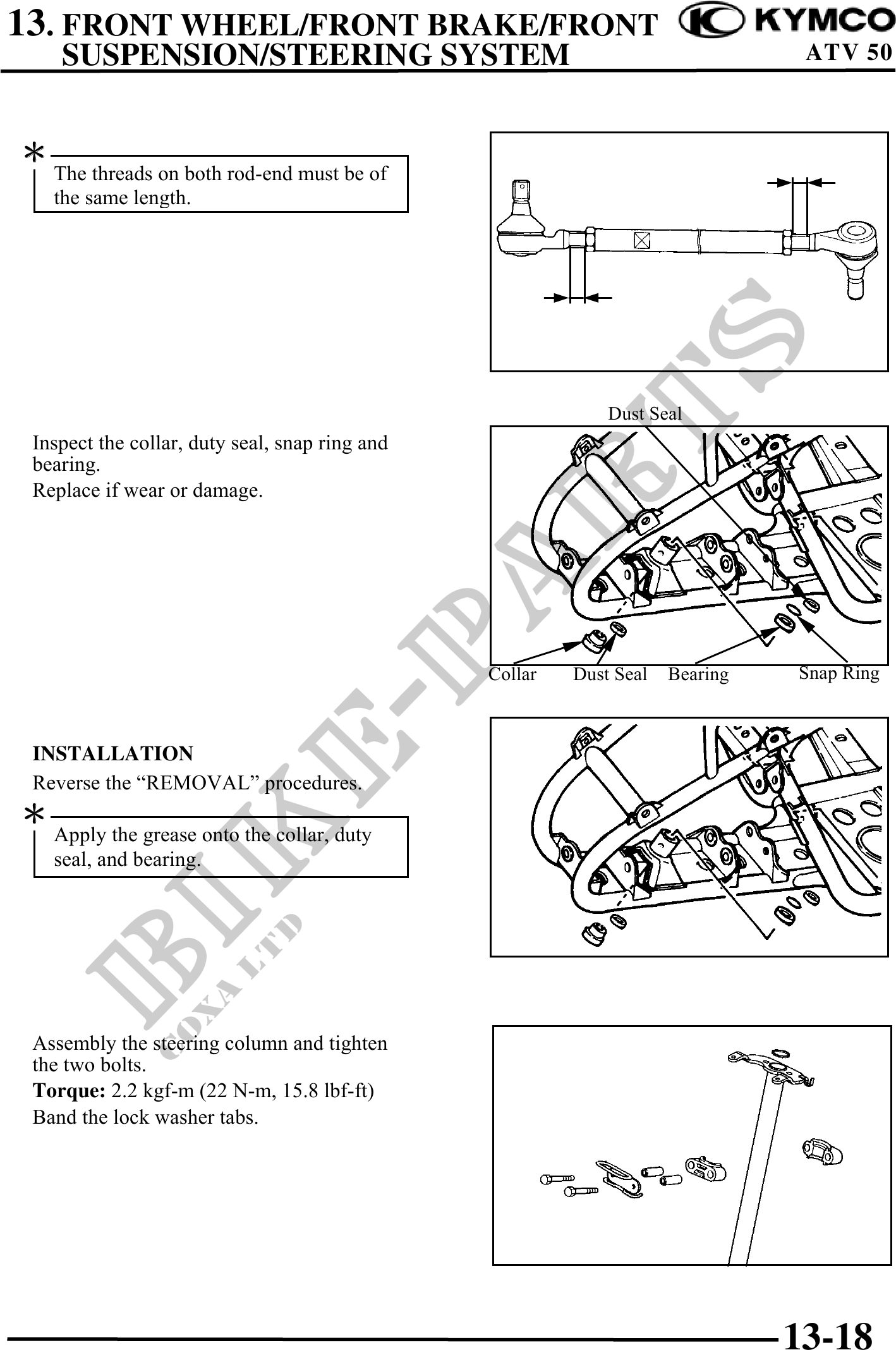

13. FRONT WHEEL/FRONT BRAKE/FRONT SUSPENSION/STEERING SYSTEM ATV 50 The threads on both rod-end must be of the same length. Dust Seal Inspect the collar, duty seal, snap ring and bearing. Replace if wear or damage. Collar Dust Seal Bearing Snap Ring INSTALLATION Reverse the "REMOVAL" procedures. Apply the grease onto the collar, duty seal, and bearing. Assembly the steering column and tighten the two bolts. Torque: 2.2 kgf-m (22 N-m, 15.8 lbf-ft) Band the lock washer tabs. 13-18
