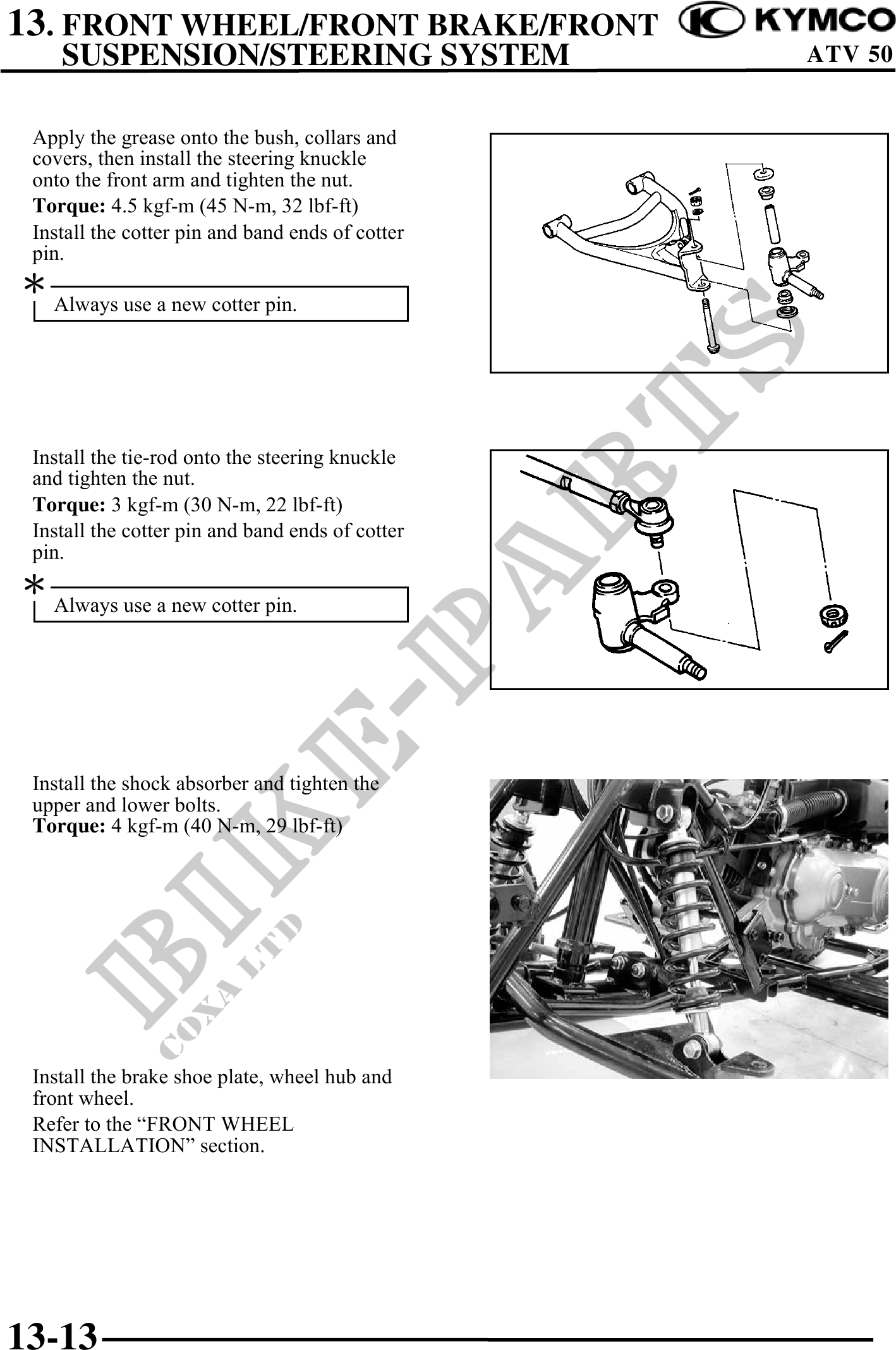

13. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM ATV 50
Apply the grease onto the bush, collars and
covers, then install the steering knuckle
onto the front arm and tighten the nut.
Torque: 4.5 kgf-m (45 N-m, 32 lbf-ft)
Install the cotter pin and band ends of cotter
pin.
Always use a new cotter pin.
Install the tie-rod onto the steering knuckle
and tighten the nut.
Torque: 3 kgf-m (30 N-m, 22 lbf-ft)
Install the cotter pin and band ends of cotter
pin.
Always use a new cotter pin.
Install the shock absorber and tighten the
upper and lower bolts.
Torque: 4 kgf-m (40 N-m, 29 lbf-ft)
Install the brake shoe plate, wheel hub and
front wheel.
Refer to the "FRONT WHEEL
INSTALLATION" section.
