          1. GENERAL INFORMATION                                                                                                                               DINK50/125

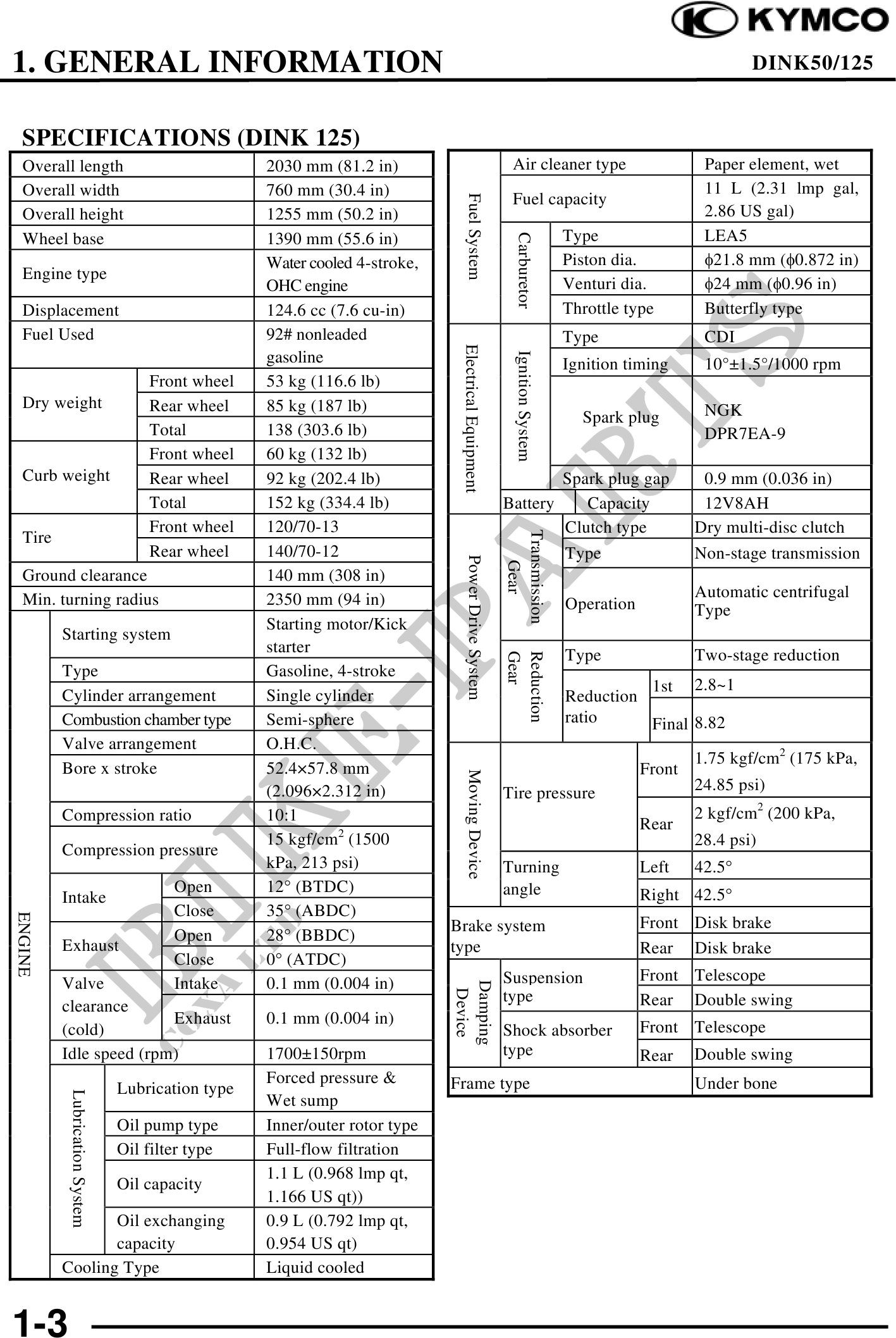

  SPECIFICATIONS (DINK 125)
  Overall length                                  2030 mm (81.2 in)                                   Air cleaner type                        Paper element, wet
  Overall width                                   760 mm (30.4 in)                                                                            11 L (2.31 lmp gal,
                                                                                                      Fuel capacity




                                                                               Fuel System
  Overall height                                  1255 mm (50.2 in)                                                                           2.86 US gal)
  Wheel base                                      1390 mm (55.6 in)                                                      Type                 LEA5




                                                                                                       Carburetor
                                                  Water cooled 4-stroke,                                                 Piston dia.          21.8 mm (0.872 in)
  Engine type
                                                  OHC engine                                                             Venturi dia.         24 mm (0.96 in)
  Displacement                                    124.6 cc (7.6 cu-in)                                                   Throttle type        Butterfly type
  Fuel Used                                       92# nonleaded                                                          Type                 CDI




                                                                            Electrical Equipment

                                                                                                       Ignition System
                                                  gasoline                                                               Ignition timing      10°1.5°/1000 rpm
                                   Front wheel    53 kg (116.6 lb)
  Dry weight                       Rear wheel     85 kg (187 lb)                                                                              NGK
                                                                                                                           Spark plug
                                   Total          138 (303.6 lb)                                                                              DPR7EA-9
                                   Front wheel    60 kg (132 lb)
  Curb weight                      Rear wheel     92 kg (202.4 lb)                                                       Spark plug gap       0.9 mm (0.036 in)
                                   Total          152 kg (334.4 lb)                                 Battery                 Capacity          12V8AH
                                   Front wheel    120/70-13                                                              Clutch type         Dry multi-disc clutch
                                                                                                    Transmission
  Tire
                                   Rear wheel     140/70-12                                                              Type                Non-stage transmission
                                                                               Power Drive System

                                                                                                        Gear

  Ground clearance                                140 mm (308 in)
  Min. turning radius                             2350 mm (94 in)                                                                            Automatic centrifugal
                                                                                                                         Operation           Type
                                                  Starting motor/Kick
         Starting system
                                                  starter                                                                Type                Two-stage reduction
                                                                                                    Gear
                                                                                                    Reduction




         Type                                     Gasoline, 4-stroke
                                                                                                                                   1st 2.8~1
         Cylinder arrangement                     Single cylinder                                                        Reduction
         Combustion chamber type                  Semi-sphere                                                            ratio     Final 8.82
         Valve arrangement                        O.H.C.
                                                                                                                                             1.75 kgf/cm2 (175 kPa,
         Bore x stroke                            52.4×57.8 mm                                                                       Front
                                                                               Moving Device




                                                  (2.096×2.312 in)                                  Tire pressure                            24.85 psi)
         Compression ratio                        10:1                                                                                       2 kgf/cm2 (200 kPa,
                                                                                                                                     Rear
                                                  15 kgf/cm2 (1500                                                                           28.4 psi)
         Compression pressure
                                                  kPa, 213 psi)                                     Turning                          Left    42.5°
                                       Open       12° (BTDC)                                        angle                            Right 42.5°
         Intake
                                       Close      35° (ABDC)
ENGINE




                                                                           Brake system                                              Front Disk brake
                                       Open       28° (BBDC)
         Exhaust                                                           type                                                      Rear Disk brake
                                       Close      0° (ATDC)
         Valve                         Intake     0.1 mm (0.004 in)                                 Suspension                       Front Telescope
                                                                           Damping
                                                                            Device




                                                                                                    type                             Rear Double swing
         clearance
                        Exhaust                   0.1 mm (0.004 in)
         (cold)                                                                                     Shock absorber                   Front Telescope
         Idle speed (rpm)                         1700150rpm                                        type                             Rear    Double swing
                                                  Forced pressure &        Frame type                                                        Under bone
                               Lubrication type
          Lubrication System




                                                  Wet sump
                               Oil pump type      Inner/outer rotor type
                               Oil filter type    Full-flow filtration
                                                  1.1 L (0.968 lmp qt,
                               Oil capacity
                                                  1.166 US qt))
                Oil exchanging                    0.9 L (0.792 lmp qt,
                capacity                          0.954 US qt)
         Cooling Type                             Liquid cooled


1-3
