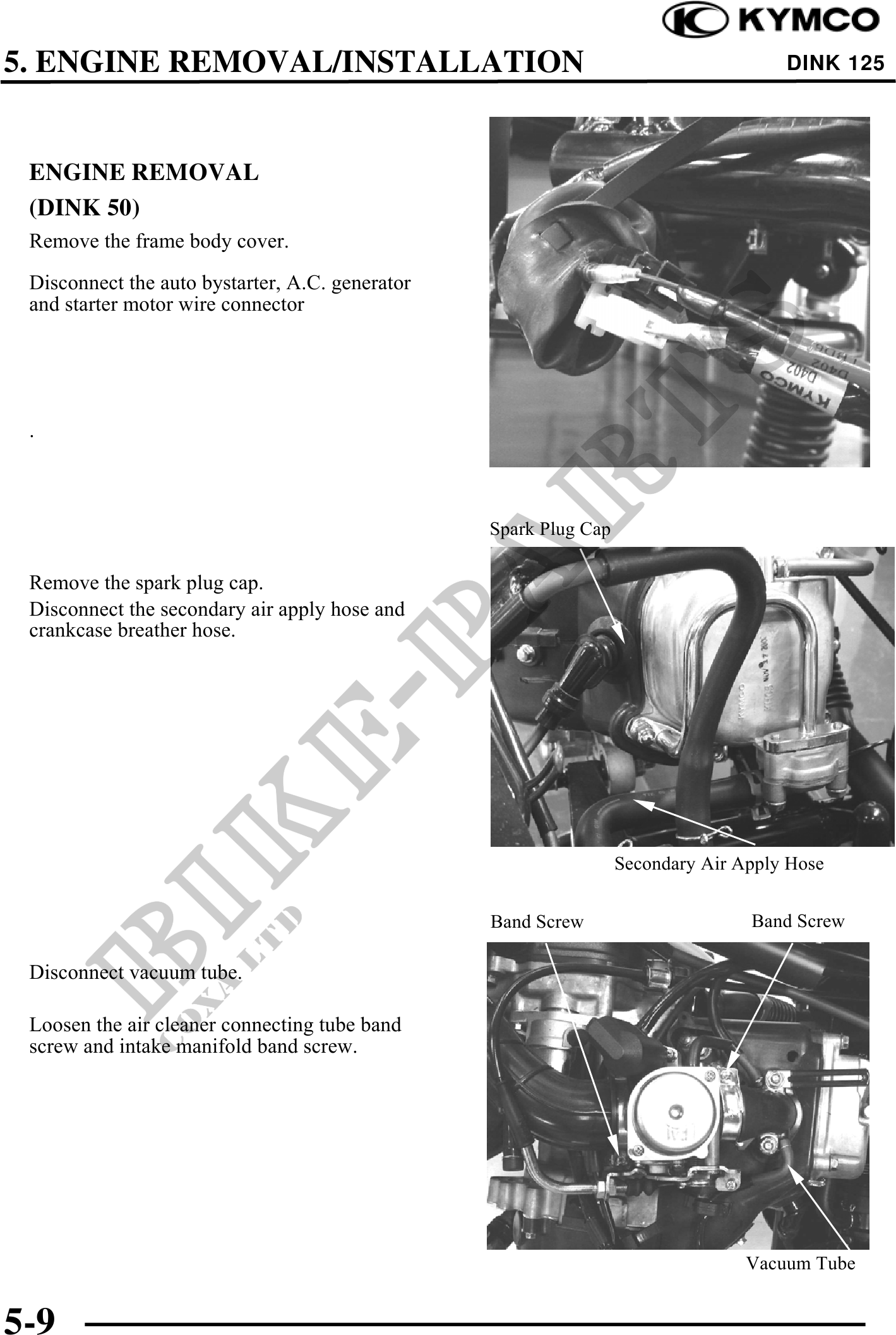

          5. ENGINE REMOVAL/INSTALLATION                                                       DINK 125




 ENGINE REMOVAL
 (DINK 50)
 Remove the frame body cover.

 Disconnect the auto bystarter, A.C. generator
 and starter motor wire connector




 .



                                                 Spark Plug Cap

 Remove the spark plug cap.
 Disconnect the secondary air apply hose and
 crankcase breather hose.




                                                                  Secondary Air Apply Hose

                                                 Band Screw                      Band Screw

 Disconnect vacuum tube.

 Loosen the air cleaner connecting tube band
 screw and intake manifold band screw.




                                                                                 Vacuum Tube


5-9
