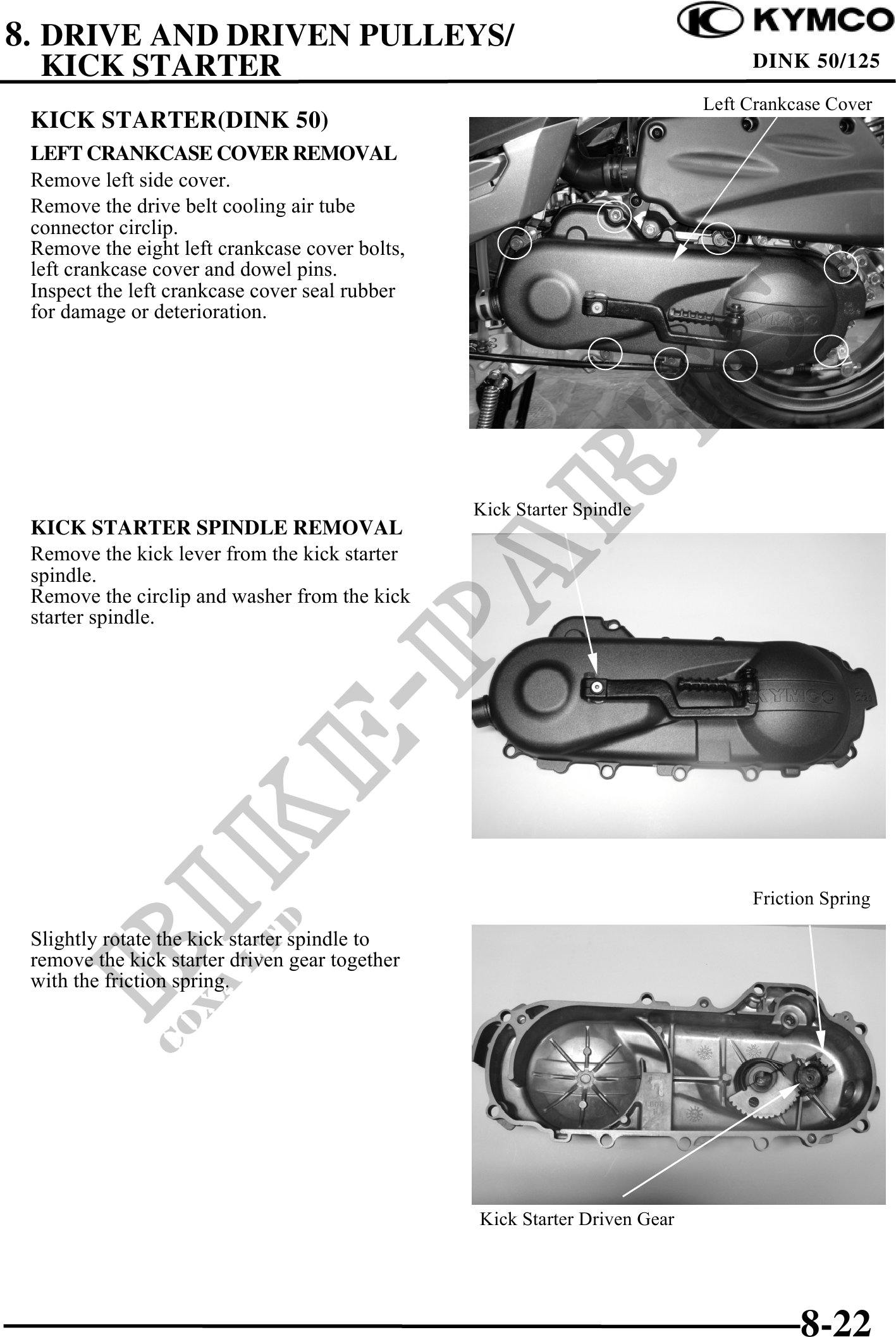

8. DRIVE AND DRIVEN PULLEYS/
KICK STARTER DINK 50/125
Left Crankcase Cover
KICK STARTER(DINK 50)
LEFT CRANKCASE COVER REMOVAL
Remove left side cover.
Remove the drive belt cooling air tube
connector circlip.
Remove the eight left crankcase cover bolts,
left crankcase cover and dowel pins.
Inspect the left crankcase cover seal rubber
for damage or deterioration.
Kick Starter Spindle
KICK STARTER SPINDLE REMOVAL
Remove the kick lever from the kick starter
spindle.
Remove the circlip and washer from the kick
starter spindle.
Friction Spring
Slightly rotate the kick starter spindle to
remove the kick starter driven gear together
with the friction spring.
Kick Starter Driven Gear
8-22
