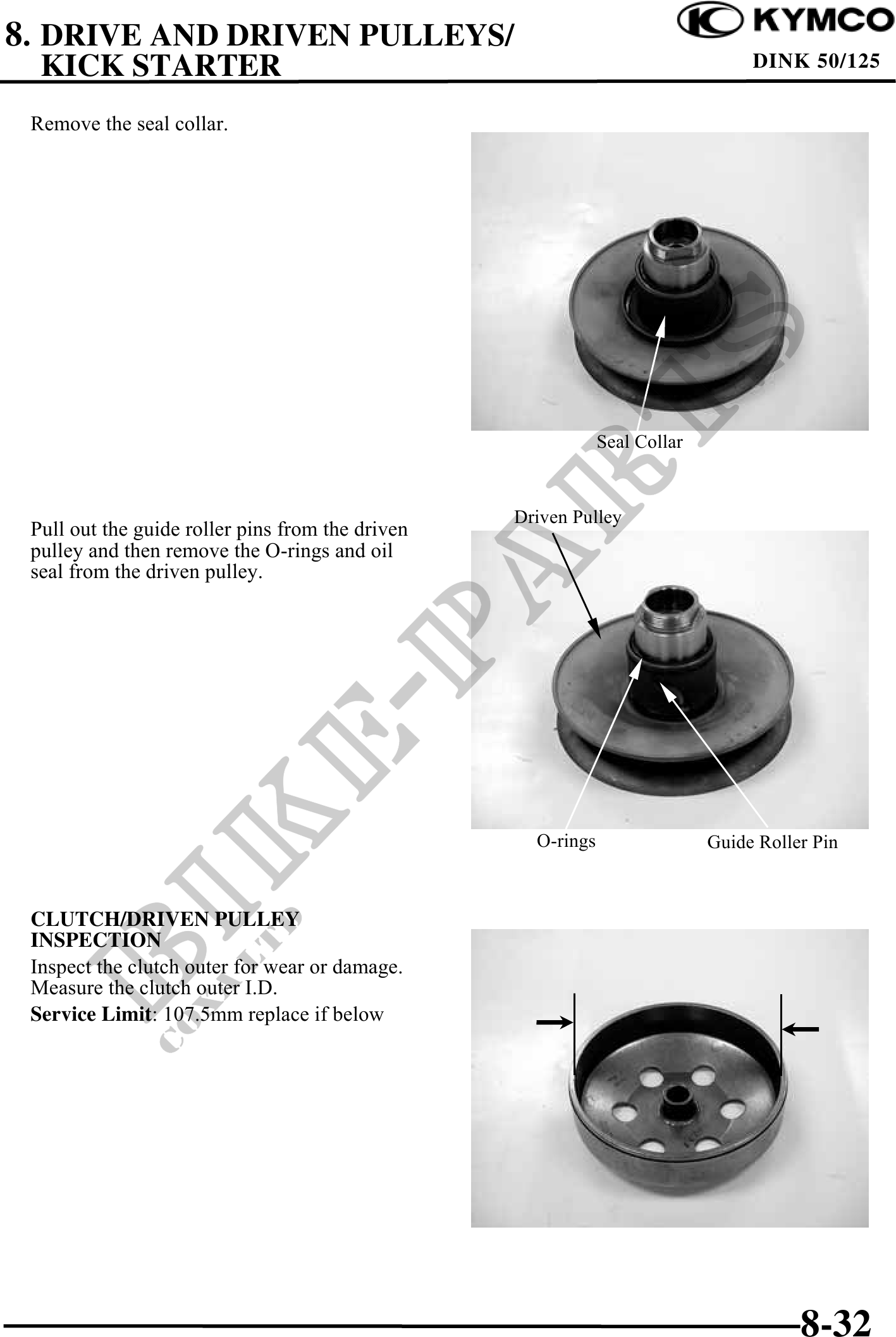

          8. DRIVE AND DRIVEN PULLEYS/
  KICK STARTER                                                                   DINK 50/125

 Remove the seal collar.




                                                              Seal Collar


                                                  Driven Pulley
 Pull out the guide roller pins from the driven
 pulley and then remove the O-rings and oil
 seal from the driven pulley.




                                                    O-rings                 Guide Roller Pin



 CLUTCH/DRIVEN PULLEY
 INSPECTION
 Inspect the clutch outer for wear or damage.
 Measure the clutch outer I.D.
 Service Limit: 107.5mm replace if below




                                                                                       8-32
