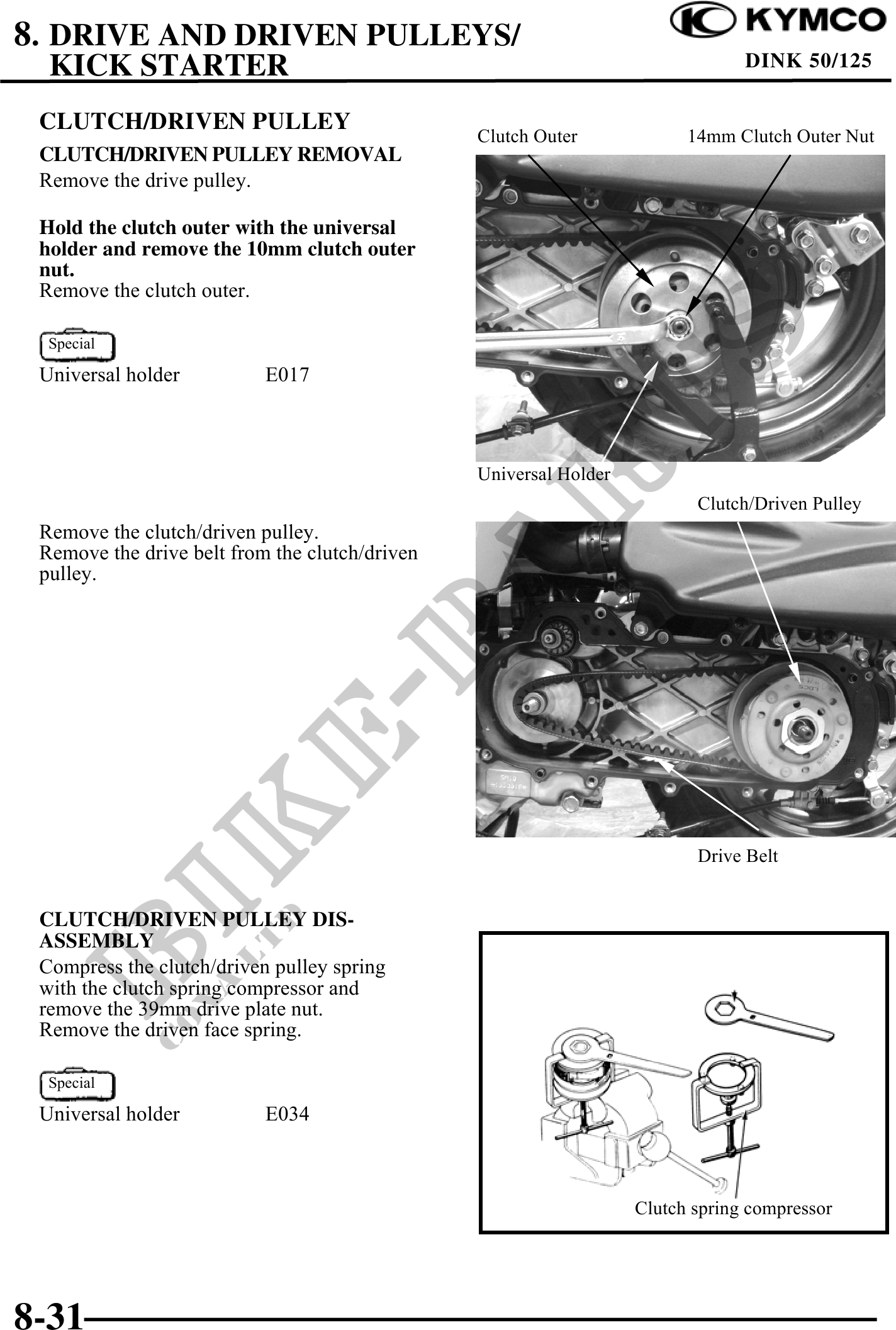

          8. DRIVE AND DRIVEN PULLEYS/
  KICK STARTER                                                                  DINK 50/125

 CLUTCH/DRIVEN PULLEY
                                                Clutch Outer             14mm Clutch Outer Nut
 CLUTCH/DRIVEN PULLEY REMOVAL
 Remove the drive pulley.

 Hold the clutch outer with the universal
 holder and remove the 10mm clutch outer
 nut.
 Remove the clutch outer.

  Special

 Universal holder          E017



                                                Universal Holder
                                                                          Clutch/Driven Pulley
 Remove the clutch/driven pulley.
 Remove the drive belt from the clutch/driven
 pulley.




                                                                          Drive Belt


 CLUTCH/DRIVEN PULLEY DIS-
 ASSEMBLY
 Compress the clutch/driven pulley spring
 with the clutch spring compressor and
 remove the 39mm drive plate nut.
 Remove the driven face spring.

  Special

 Universal holder          E034



                                                                   Clutch spring compressor




8-31
