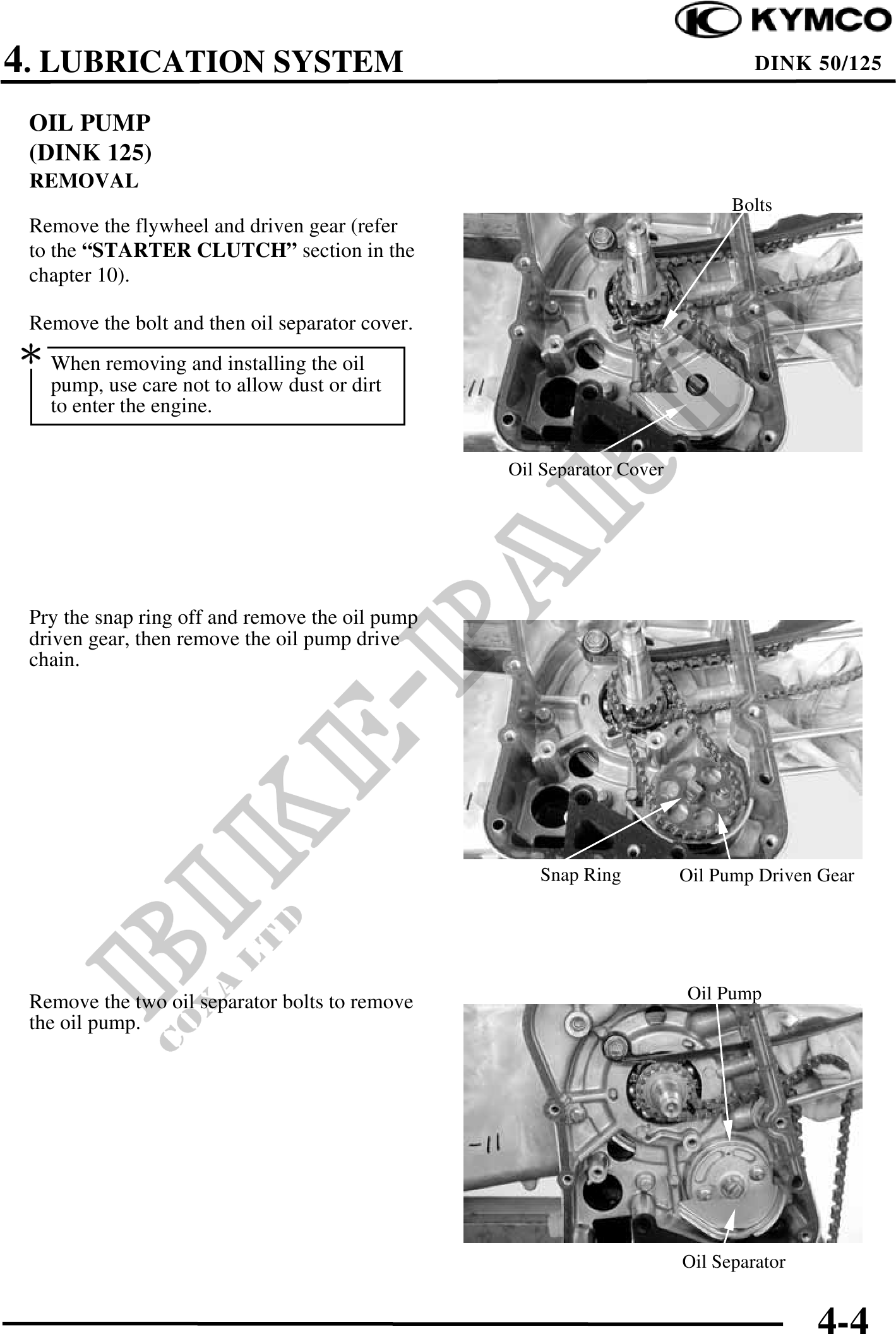

          4. LUBRICATION SYSTEM                                                           DINK 50/125

 OIL PUMP
 (DINK 125)
 REMOVAL
                                                                             Bolts
 Remove the flywheel and driven gear (refer
 to the "STARTER CLUTCH" section in the
 chapter 10).

 Remove the bolt and then oil separator cover.
 When removing and installing the oil
   pump, use care not to allow dust or dirt
   to enter the engine.

                                                 Oil Separator Cover




 Pry the snap ring off and remove the oil pump
 driven gear, then remove the oil pump drive
 chain.




                                                    Snap Ring          Oil Pump Driven Gear




 Remove the two oil separator bolts to remove                          Oil Pump
 the oil pump.




                                                                       Oil Separator


                                                                                       4-4
