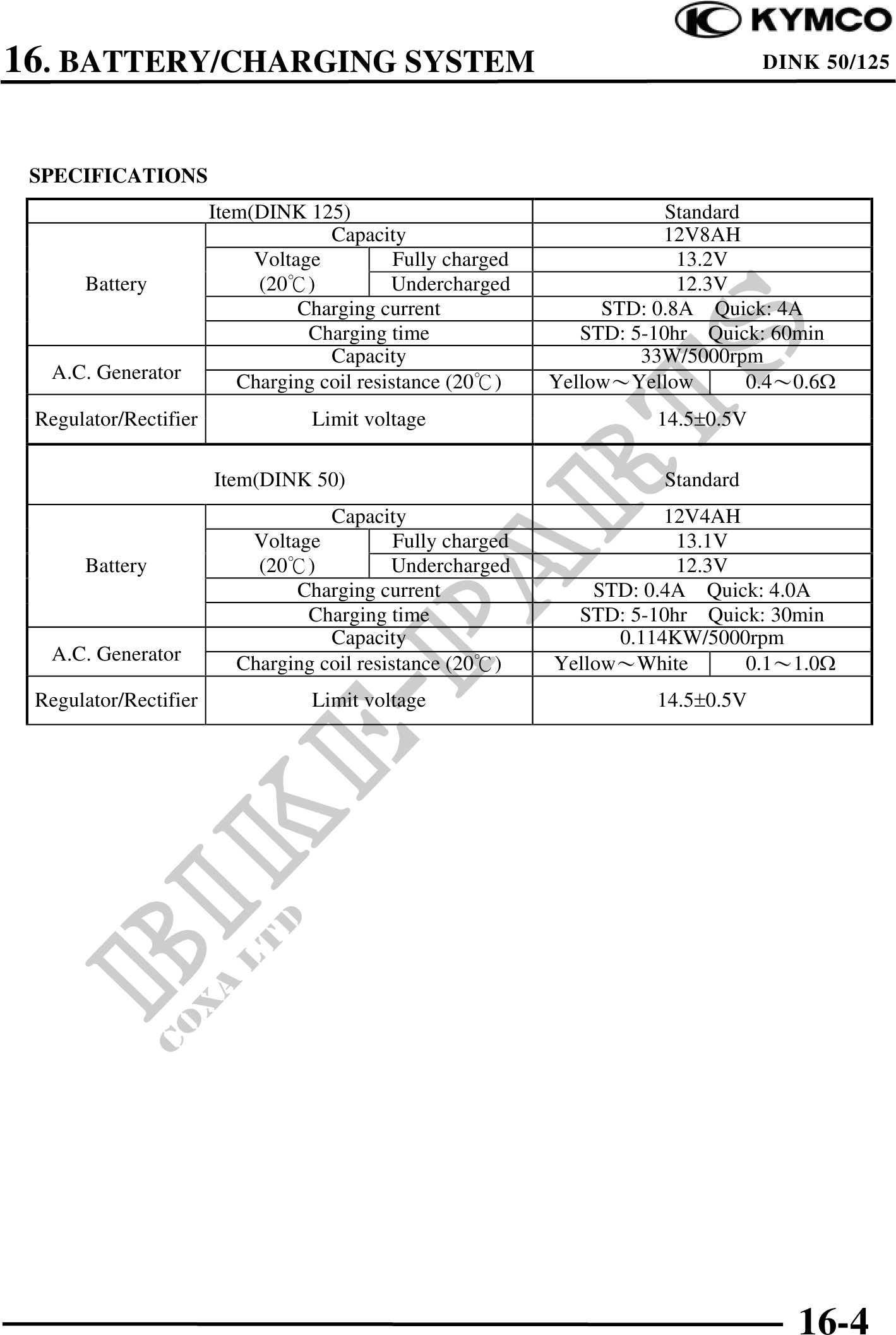

          16. BATTERY/CHARGING SYSTEM                                                       DINK 50/125




 SPECIFICATIONS
                       Item(DINK 125)                                    Standard
                                    Capacity                            12V8AH
                            Voltage          Fully charged                13.2V
      Battery               (20)            Undercharged                  12.3V
                                 Charging current                 STD: 0.8A Quick: 4A
                                  Charging time                 STD: 5-10hr Quick: 60min
                                    Capacity                          33W/5000rpm
  A.C. Generator          Charging coil resistance (20)      YellowYellow         0.40.6
 Regulator/Rectifier              Limit voltage                        14.50.5V

                       Item(DINK 50)                                   Standard
                                    Capacity                            12V4AH
                           Voltage           Fully charged               13.1V
      Battery               (20)            Undercharged                 12.3V
                                Charging current                 STD: 0.4A Quick: 4.0A
                                 Charging time                 STD: 5-10hr Quick: 30min
                                    Capacity                       0.114KW/5000rpm
  A.C. Generator          Charging coil resistance (20)      YellowWhite       0.11.0
 Regulator/Rectifier              Limit voltage                        14.50.5V




                                                                                     16-4
