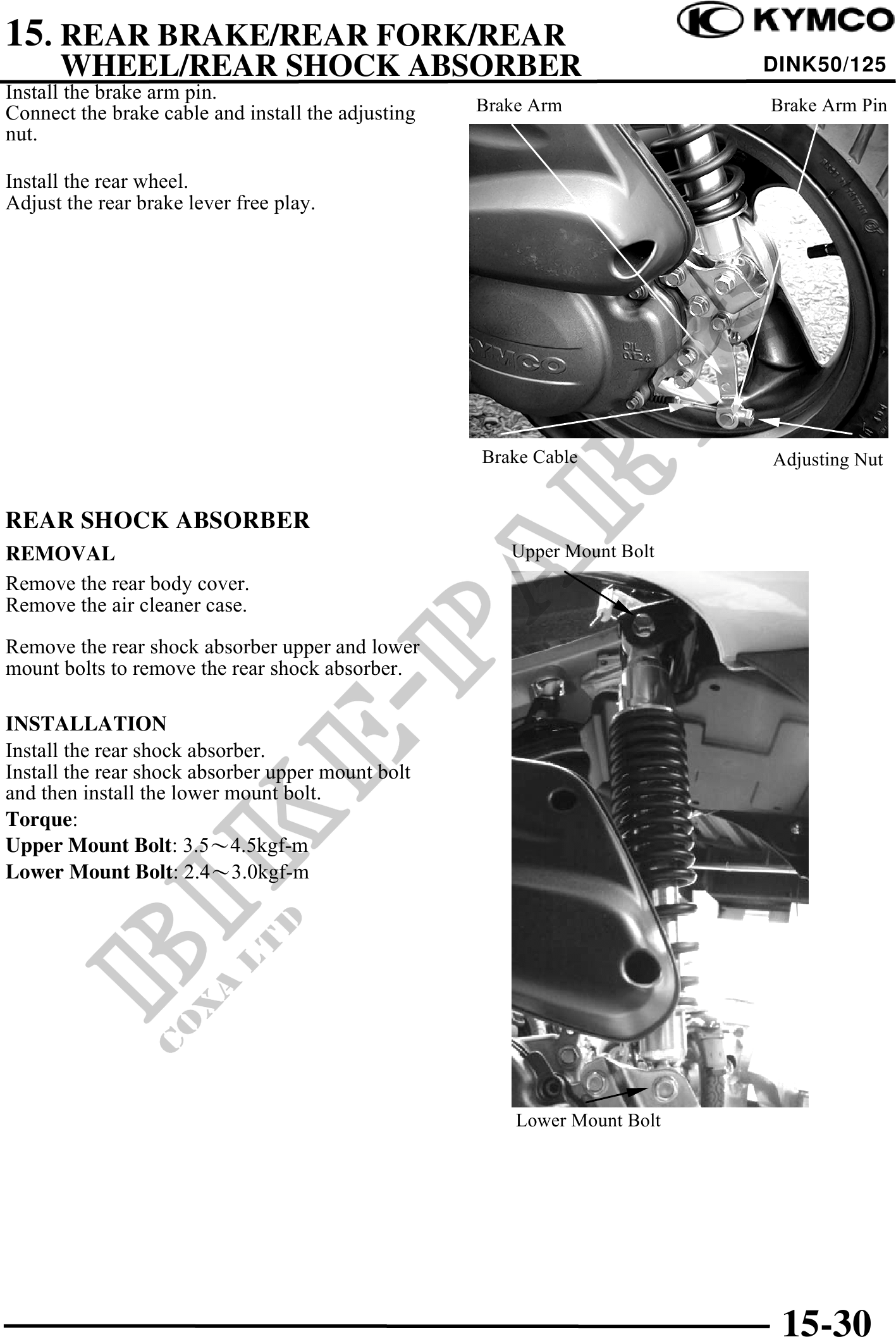

15. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER DINK50/125
Install the brake arm pin.
Connect the brake cable and install the adjusting Brake Arm Brake Arm Pin
nut.
Install the rear wheel.
Adjust the rear brake lever free play.
Brake Cable Adjusting Nut
REAR SHOCK ABSORBER
REMOVAL Upper Mount Bolt
Remove the rear body cover.
Remove the air cleaner case.
Remove the rear shock absorber upper and lower
mount bolts to remove the rear shock absorber.
INSTALLATION
Install the rear shock absorber.
Install the rear shock absorber upper mount bolt
and then install the lower mount bolt.
Torque:
Upper Mount Bolt: 3.54.5kgf-m
Lower Mount Bolt: 2.43.0kgf-m
Lower Mount Bolt
15-30
