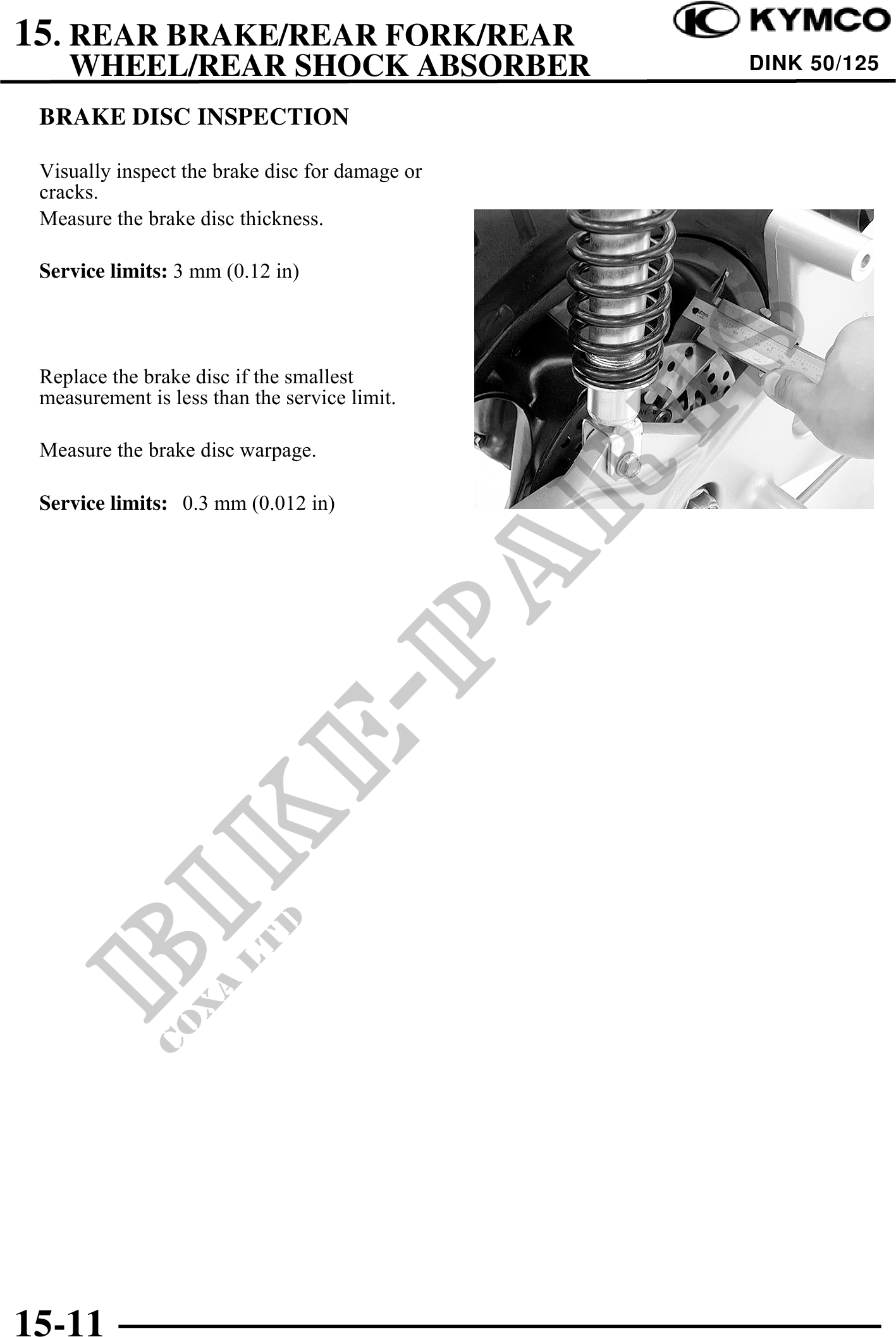

          15. REAR BRAKE/REAR FORK/REAR
    WHEEL/REAR SHOCK ABSORBER                    DINK 50/125

 BRAKE DISC INSPECTION

 Visually inspect the brake disc for damage or
 cracks.
 Measure the brake disc thickness.

 Service limits: 3 mm (0.12 in)




 Replace the brake disc if the smallest
 measurement is less than the service limit.

 Measure the brake disc warpage.

 Service limits: 0.3 mm (0.012 in)
