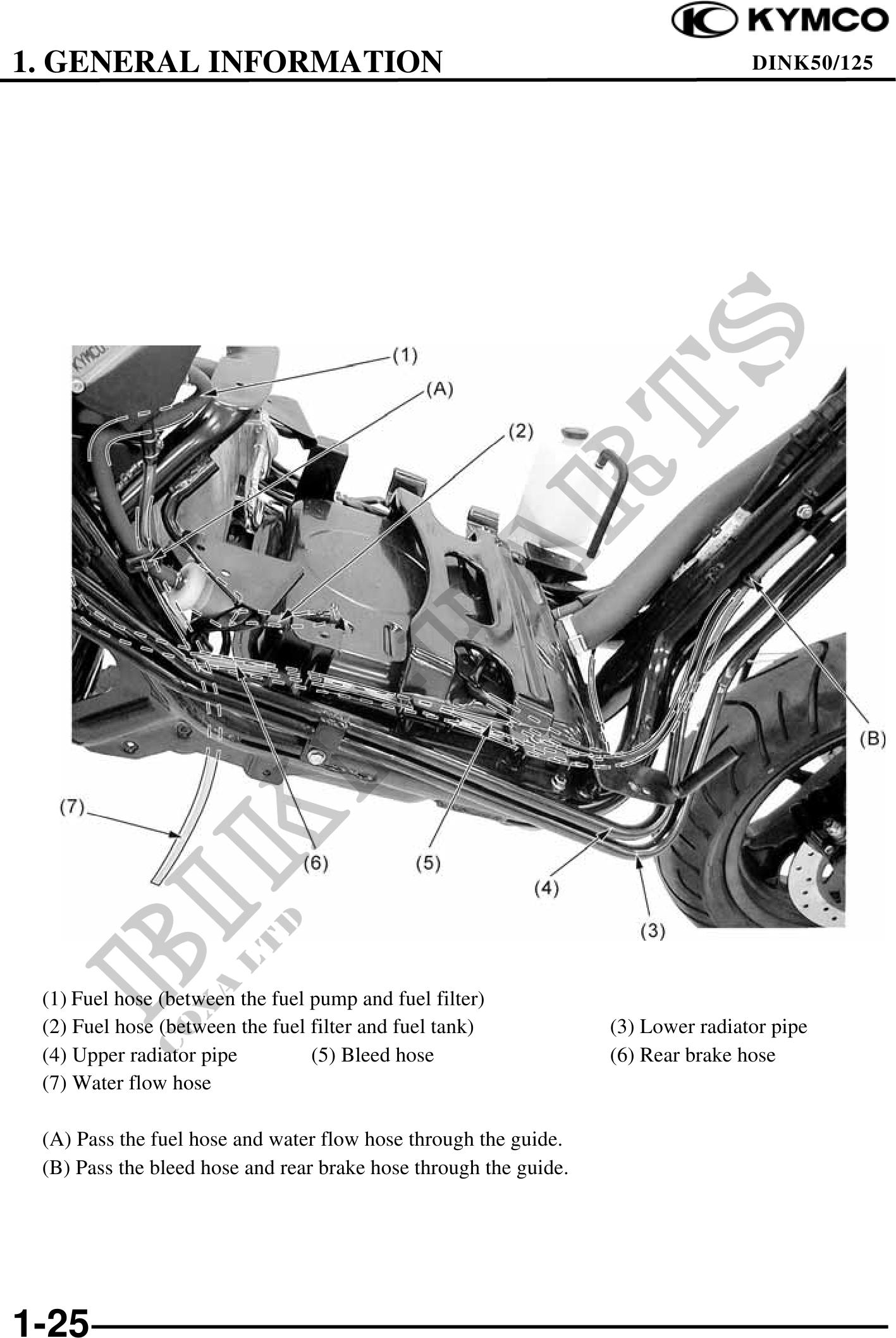

          1. GENERAL INFORMATION                                                            DINK50/125




 (1) Fuel hose (between the fuel pump and fuel filter)
 (2) Fuel hose (between the fuel filter and fuel tank)            (3) Lower radiator pipe
 (4) Upper radiator pipe         (5) Bleed hose                   (6) Rear brake hose
 (7) Water flow hose

 (A) Pass the fuel hose and water flow hose through the guide.
 (B) Pass the bleed hose and rear brake hose through the guide.




1-25
