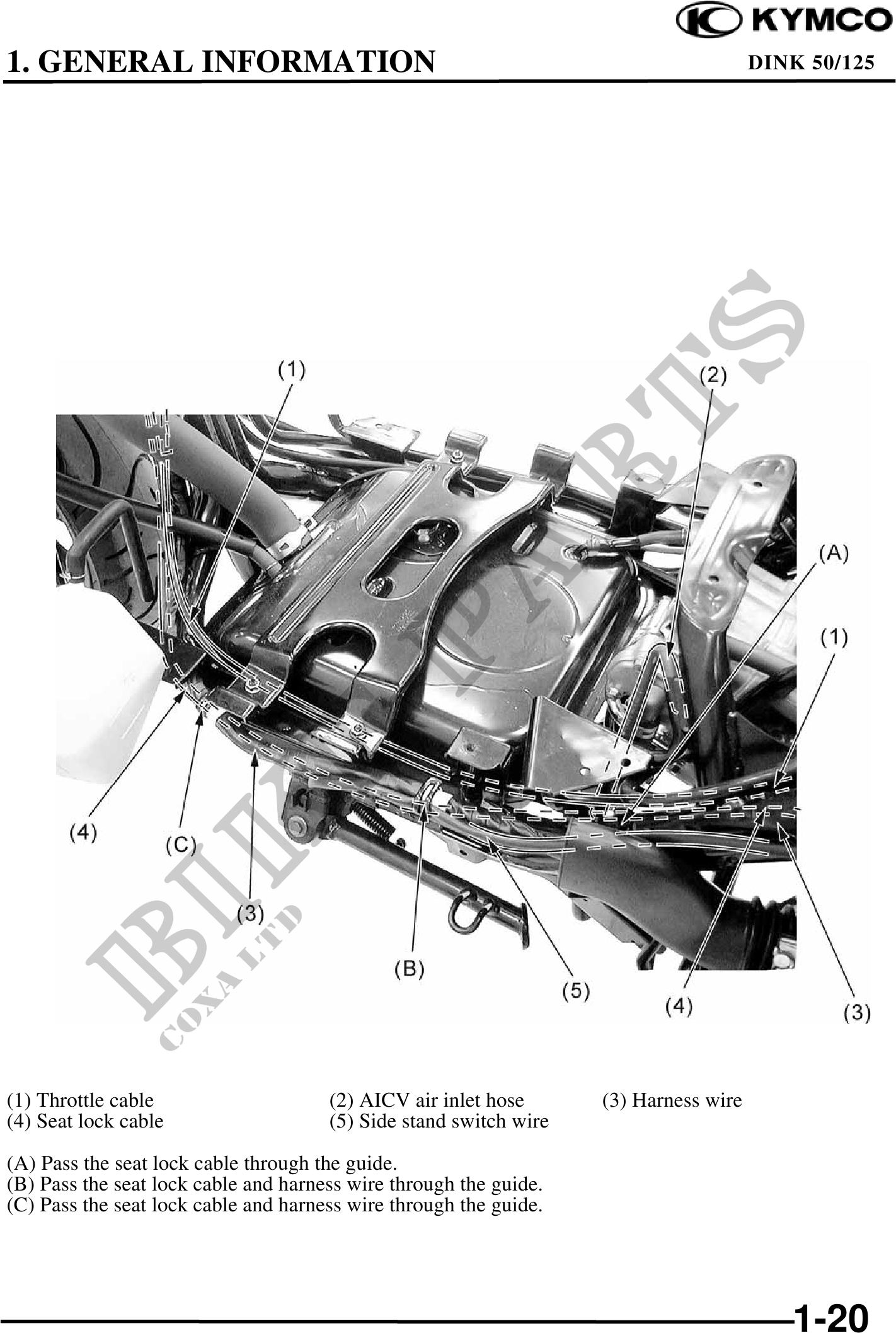

          1. GENERAL INFORMATION                                                                DINK 50/125




(1) Throttle cable                    (2) AICV air inlet hose      (3) Harness wire
(4) Seat lock cable                   (5) Side stand switch wire

(A) Pass the seat lock cable through the guide.
(B) Pass the seat lock cable and harness wire through the guide.
(C) Pass the seat lock cable and harness wire through the guide.
