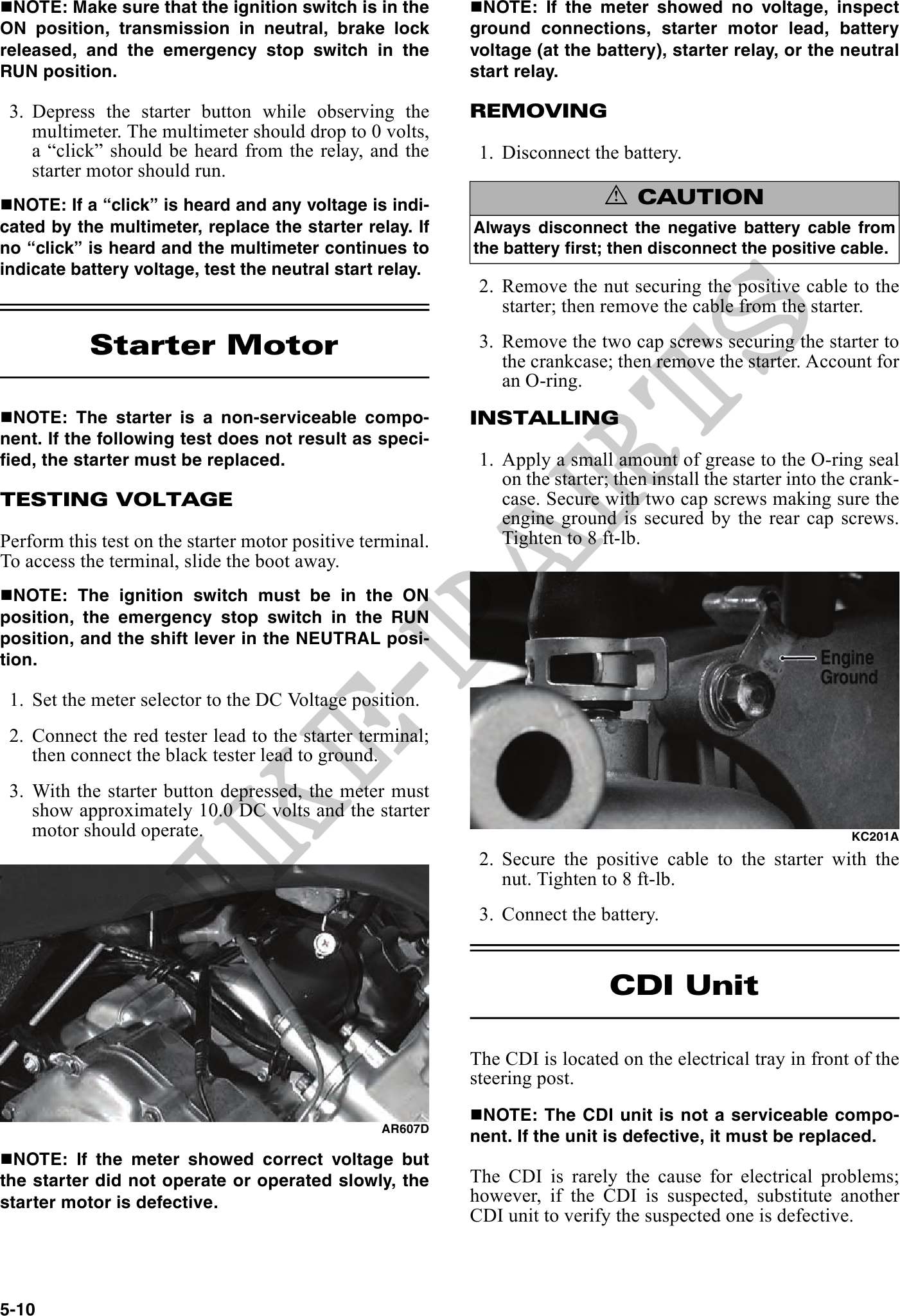

            NOTE: Make sure that the ignition switch is in the          NOTE: If the meter showed no voltage, inspect
ON position, transmission in neutral, brake lock            ground connections, starter motor lead, battery
released, and the emergency stop switch in the              voltage (at the battery), starter relay, or the neutral
RUN position.                                               start relay.

 3. Depress the starter button while observing the          REMOVING
    multimeter. The multimeter should drop to 0 volts,
    a "click" should be heard from the relay, and the        1. Disconnect the battery.
    starter motor should run.
  NOTE: If a "click" is heard and any voltage is indi-                        ! CAUTION
cated by the multimeter, replace the starter relay. If      Always disconnect the negative battery cable from
no "click" is heard and the multimeter continues to         the battery first; then disconnect the positive cable.
indicate battery voltage, test the neutral start relay.
                                                             2. Remove the nut securing the positive cable to the
                                                                starter; then remove the cable from the starter.

           Starter Motor                                     3. Remove the two cap screws securing the starter to
                                                                the crankcase; then remove the starter. Account for
                                                                an O-ring.
  NOTE: The starter is a non-serviceable compo-             INSTALLING
nent. If the following test does not result as speci-
fied, the starter must be replaced.                          1. Apply a small amount of grease to the O-ring seal
                                                                on the starter; then install the starter into the crank-
TESTING VOLTAGE                                                 case. Secure with two cap screws making sure the
                                                                engine ground is secured by the rear cap screws.
Perform this test on the starter motor positive terminal.       Tighten to 8 ft-lb.
To access the terminal, slide the boot away.
  NOTE: The ignition switch must be in the ON
position, the emergency stop switch in the RUN
position, and the shift lever in the NEUTRAL posi-
tion.

 1. Set the meter selector to the DC Voltage position.
 2. Connect the red tester lead to the starter terminal;
    then connect the black tester lead to ground.
 3. With the starter button depressed, the meter must
    show approximately 10.0 DC volts and the starter
    motor should operate.                                                                                        KC201A
                                                             2. Secure the positive cable to the starter with the
                                                                nut. Tighten to 8 ft-lb.
                                                             3. Connect the battery.


                                                                               CDI Unit

                                                            The CDI is located on the electrical tray in front of the
                                                            steering post.
                                                             NOTE: The CDI unit is not a serviceable compo-
                                                  AR607D
                                                            nent. If the unit is defective, it must be replaced.
  NOTE: If the meter showed correct voltage but
the starter did not operate or operated slowly, the         The CDI is rarely the cause for electrical problems;
starter motor is defective.                                 however, if the CDI is suspected, substitute another
                                                            CDI unit to verify the suspected one is defective.
