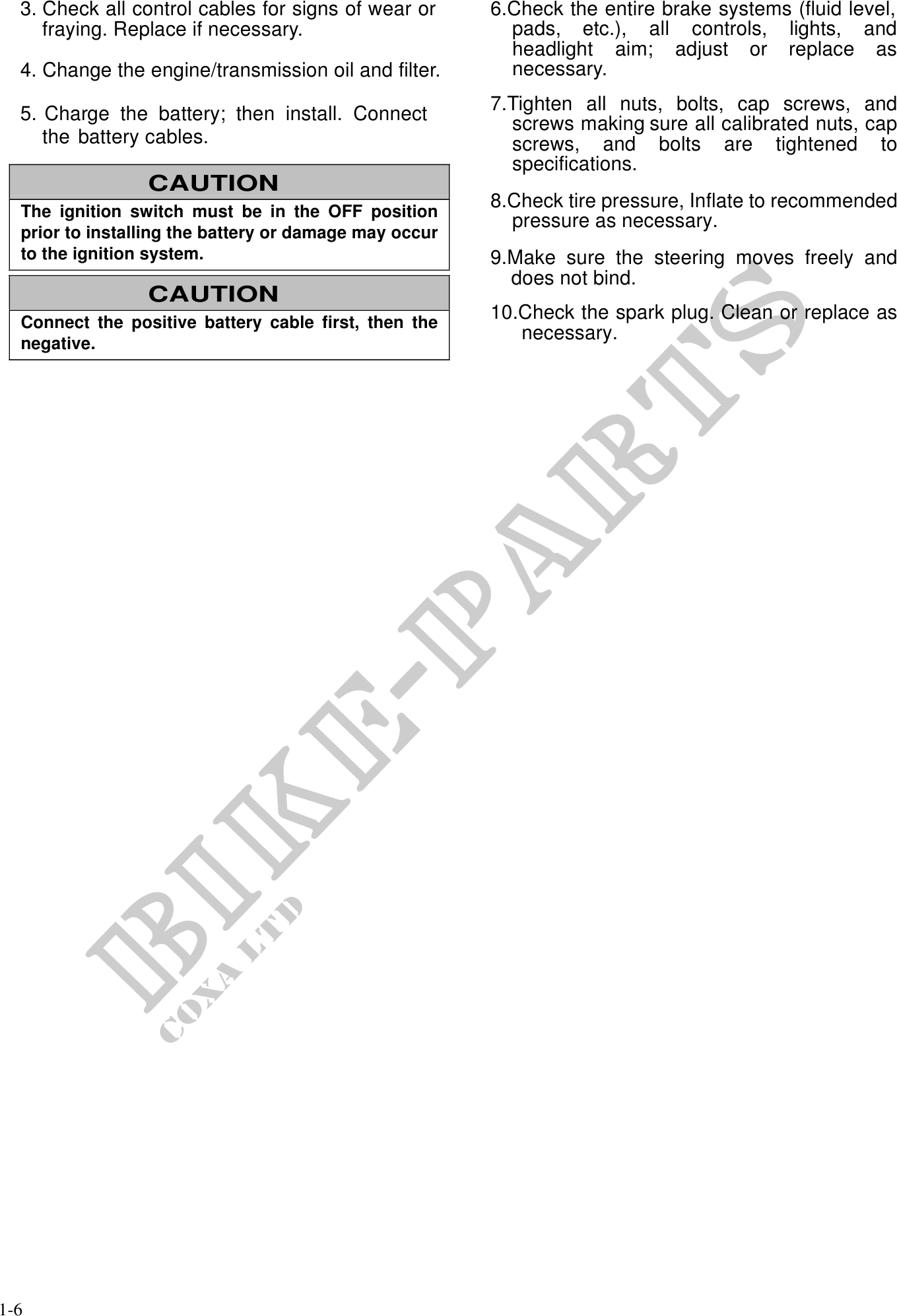

            3. Check all control cables for signs of wear or      6.Check the entire brake systems (fluid level,
     fraying. Replace if necessary.                       pads, etc.), all controls, lights, and
                                                          headlight aim; adjust or replace as
  4. Change the engine/transmission oil and filter.       necessary.

  5. Charge the battery; then install. Connect          7.Tighten all nuts, bolts, cap screws, and
                                                          screws making sure all calibrated nuts, cap
     the battery cables.                                  screws, and bolts are tightened to
                                                          specifications.
                 CAUTION
                                                        8.Check tire pressure, Inflate to recommended
  The ignition switch must be in the OFF position
                                                          pressure as necessary.
  prior to installing the battery or damage may occur
  to the ignition system.                               9.Make sure the steering moves freely and
                                                          does not bind.
                 CAUTION
  Connect the positive battery cable first, then the
                                                        10.Check the spark plug. Clean or replace as
                                                           necessary.
  negative.




1-6
