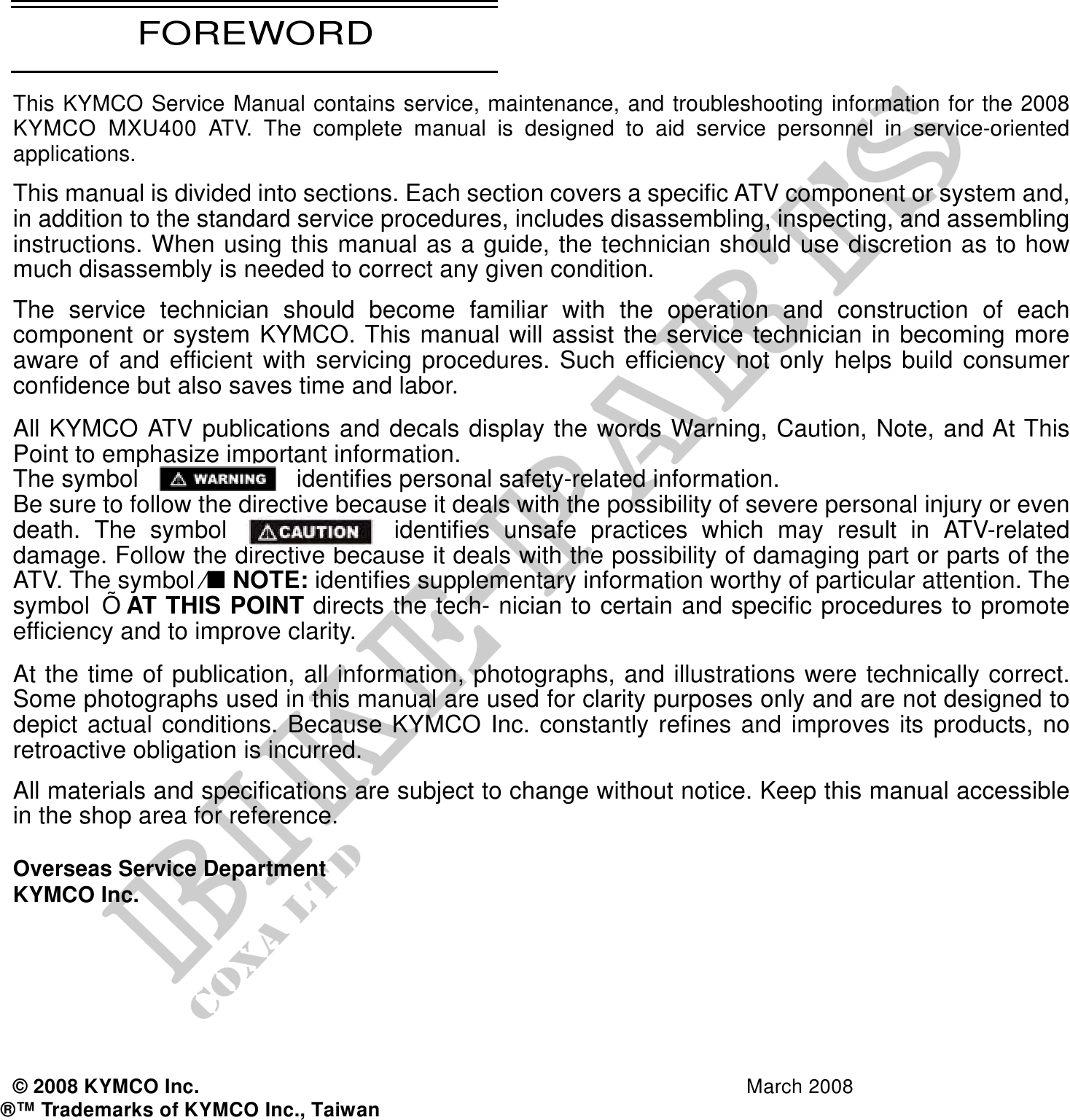

                       FOREWORD

 This KYMCO Service Manual contains service, maintenance, and troubleshooting information for the 2008
 KYMCO MXU400 ATV. The complete manual is designed to aid service personnel in service-oriented
 applications.
 This manual is divided into sections. Each section covers a specific ATV component or system and,
 in addition to the standard service procedures, includes disassembling, inspecting, and assembling
 instructions. When using this manual as a guide, the technician should use discretion as to how
 much disassembly is needed to correct any given condition.
 The service technician should become familiar with the operation and construction of each
 component or system KYMCO. This manual will assist the service technician in becoming more
 aware of and efficient with servicing procedures. Such efficiency not only helps build consumer
 confidence but also saves time and labor.
 All KYMCO ATV publications and decals display the words Warning, Caution, Note, and At This
 Point to emphasize important information.
 The symbol                  identifies personal safety-related information.
 Be sure to follow the directive because it deals with the possibility of severe personal injury or even
 death. The symbol                     identifies unsafe practices which may result in ATV-related
 damage. Follow the directive because it deals with the possibility of damaging part or parts of the
 ATV. The symbol  NOTE: identifies supplementary information worthy of particular attention. The
 symbol AT THIS POINT directs the tech- nician to certain and specific procedures to promote
 efficiency and to improve clarity.
 At the time of publication, all information, photographs, and illustrations were technically correct.
 Some photographs used in this manual are used for clarity purposes only and are not designed to
 depict actual conditions. Because KYMCO Inc. constantly refines and improves its products, no
 retroactive obligation is incurred.
 All materials and specifications are subject to change without notice. Keep this manual accessible
 in the shop area for reference.

 Overseas Service Department
 KYMCO Inc.




 2008 KYMCO Inc.                                                        March 2008
TM Trademarks of KYMCO Inc., Taiwan
