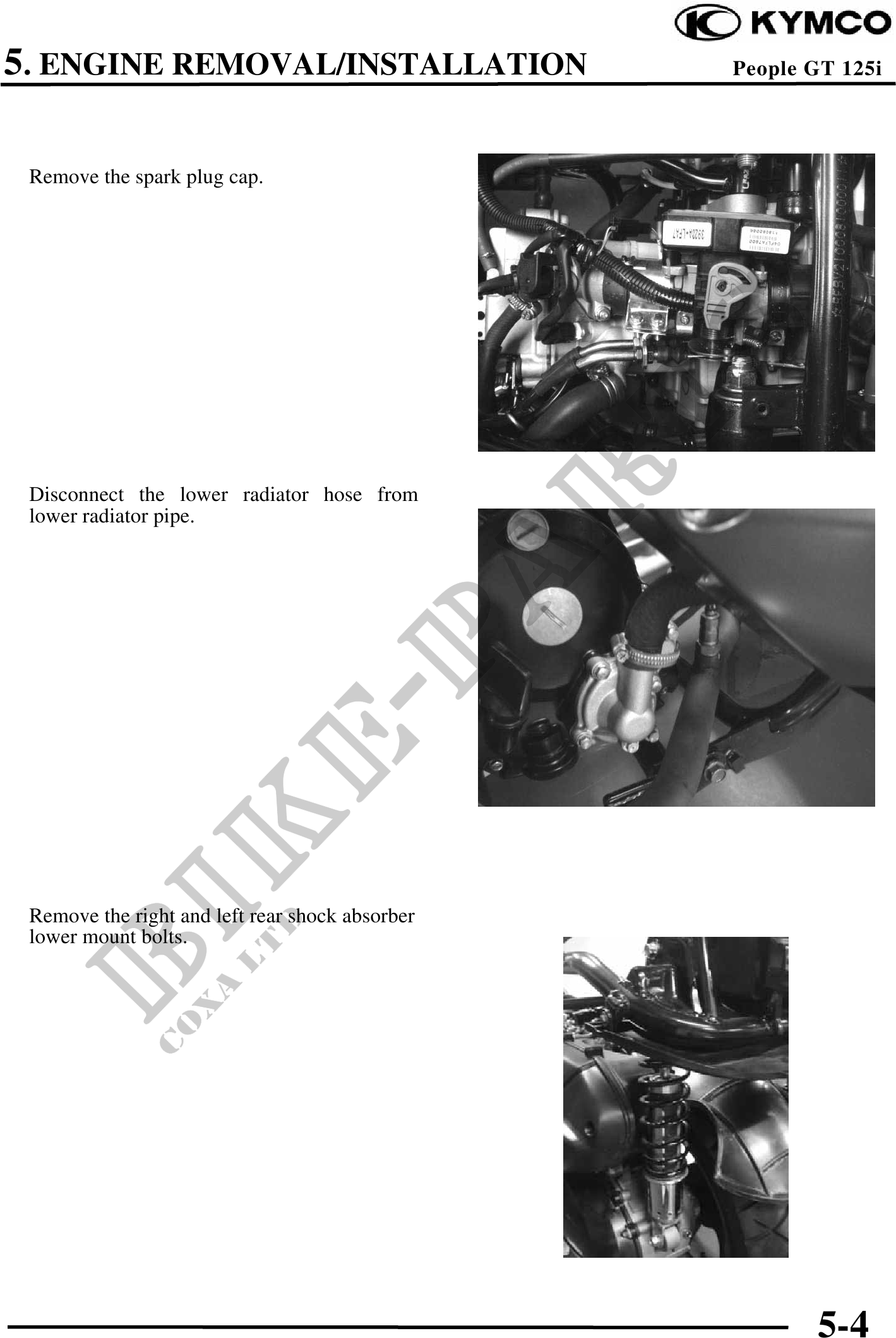

          5. ENGINE REMOVAL/INSTALLATION                   People GT 125i




 Remove the spark plug cap.




 Disconnect the lower radiator hose from
 lower radiator pipe.




 Remove the right and left rear shock absorber
 lower mount bolts.




                                                        5-4
