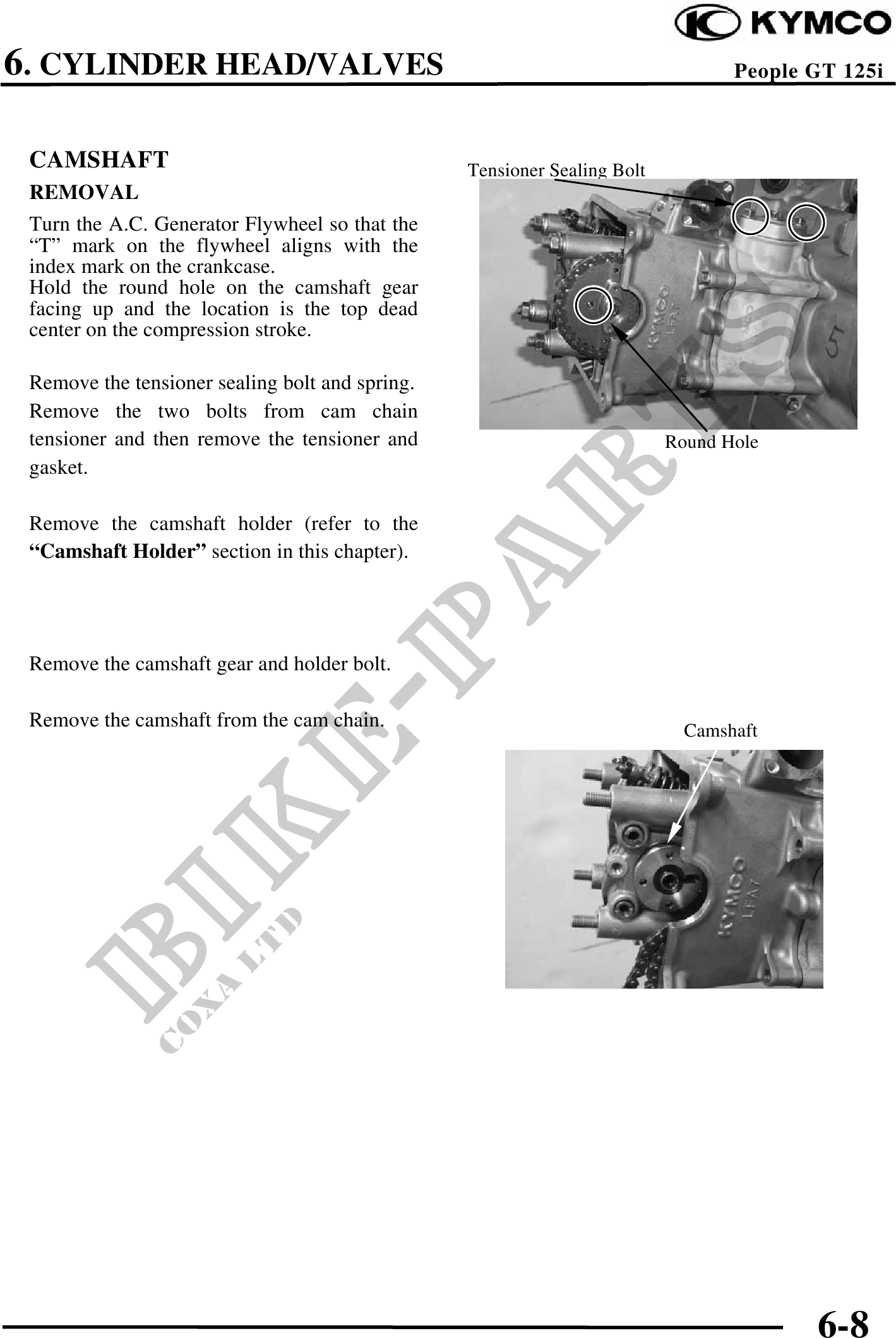

6. CYLINDER HEAD/VALVES People GT 125i
CAMSHAFT Tensioner Sealing Bolt
REMOVAL
Turn the A.C. Generator Flywheel so that the
"T" mark on the flywheel aligns with the
index mark on the crankcase.
Hold the round hole on the camshaft gear
facing up and the location is the top dead
center on the compression stroke.
Remove the tensioner sealing bolt and spring.
Remove the two bolts from cam chain
tensioner and then remove the tensioner and Round Hole
gasket.
Remove the camshaft holder (refer to the
"Camshaft Holder" section in this chapter).
Remove the camshaft gear and holder bolt.
Remove the camshaft from the cam chain. Camshaft
6-8
