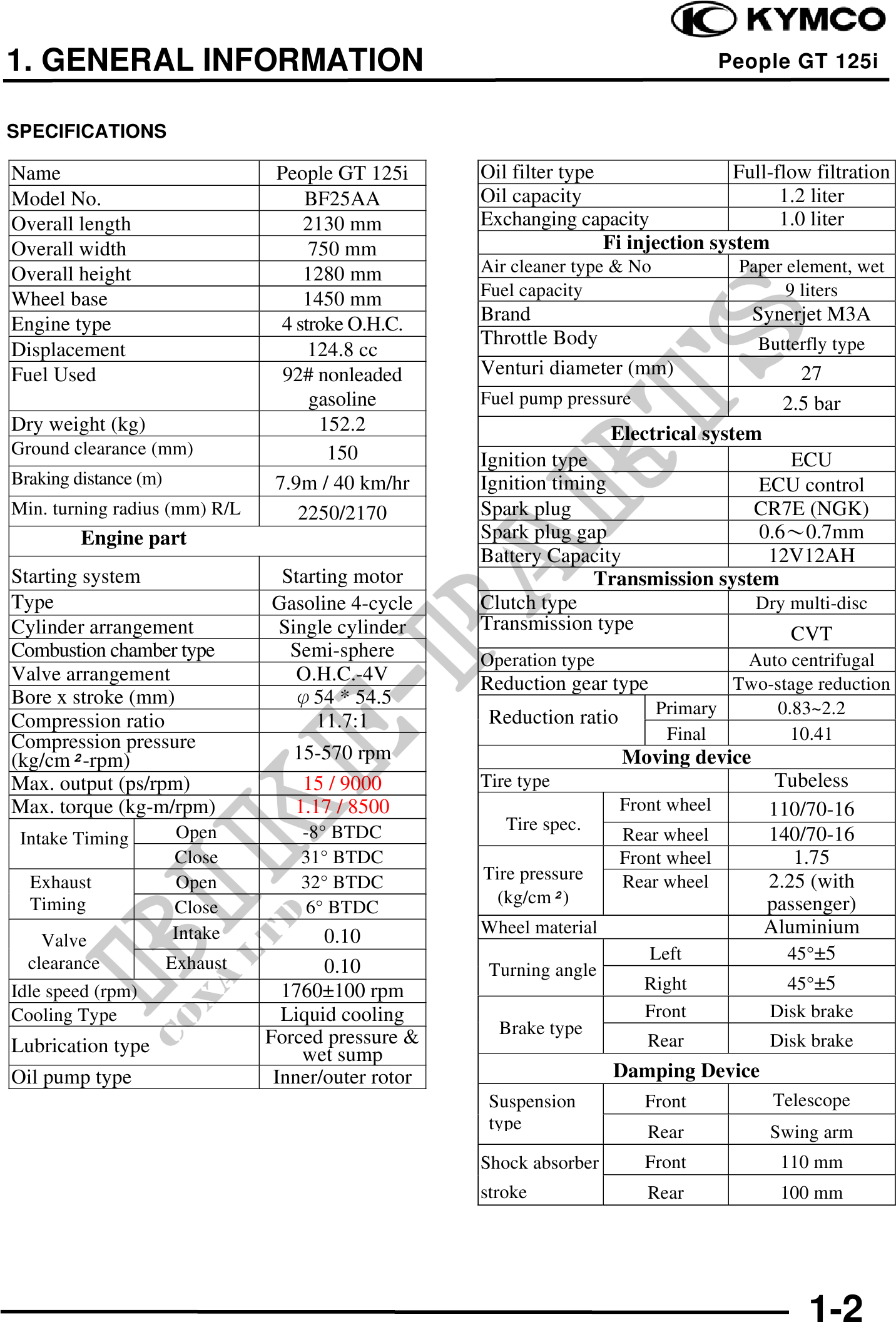

          1. GENERAL INFORMATION                                                                 People GT 125i


SPECIFICATIONS

Name                              People GT 125i      Oil filter type                 Full-flow filtration
Model No.                             BF25AA          Oil capacity                          1.2 liter
Overall length                        2130 mm         Exchanging capacity                   1.0 liter
Overall width                          750 mm                         Fi injection system
Overall height                        1280 mm         Air cleaner type & No             Paper element, wet
                                                      Fuel capacity                           9 liters
Wheel base                            1450 mm
Engine type                        4 stroke O.H.C.    Brand                              Synerjet M3A
                                                      Throttle Body                       Butterfly type
Displacement                           124.8 cc
Fuel Used                          92# nonleaded      Venturi diameter (mm)                    27
                                       gasoline       Fuel pump pressure                     2.5 bar
Dry weight (kg)                         152.2                          Electrical system
Ground clearance (mm)                    150          Ignition type                      ECU
Braking distance (m)              7.9m / 40 km/hr     Ignition timing                 ECU control
Min. turning radius (mm) R/L         2250/2170        Spark plug                     CR7E (NGK)
         Engine part                                  Spark plug gap                  0.60.7mm
                                                      Battery Capacity                 12V12AH
Starting system                   Starting motor                    Transmission system
Type                             Gasoline 4-cycle     Clutch type                    Dry multi-disc
Cylinder arrangement             Single cylinder      Transmission type
                                                                                         CVT
Combustion chamber type            Semi-sphere        Operation type                   Auto centrifugal
Valve arrangement                   O.H.C.-4V         Reduction gear type             Two-stage reduction
Bore x stroke (mm)                 54 * 54.5
                                                       Reduction ratio        Primary     0.83~2.2
Compression ratio                     11.7:1
Compression pressure                                                           Final        10.41
(kg/cm-rpm)                         15-570 rpm                           Moving device
Max. output (ps/rpm)                 15 / 9000        Tire type                             Tubeless
Max. torque (kg-m/rpm)              1.17 / 8500                          Front wheel       110/70-16
                        Open         -8° BTDC            Tire spec.
 Intake Timing                                                           Rear wheel        140/70-16
                       Close         31° BTDC                            Front wheel          1.75
  Exhaust               Open         32° BTDC         Tire pressure      Rear wheel        2.25 (with
  Timing                                               (kg/cm)                             passenger)
                       Close          6° BTDC
                       Intake           0.10          Wheel material                       Aluminium
    Valve
  clearance            Exhaust                                              Left             45°5
                                        0.10           Turning angle
Idle speed (rpm)                   1760100 rpm                             Right             45°5
Cooling Type                       Liquid cooling                          Front           Disk brake
                                 Forced pressure &      Brake type
Lubrication type                                                            Rear           Disk brake
                                     wet sump
Oil pump type                     Inner/outer rotor                    Damping Device
                                                       Suspension           Front           Telescope
                                                       type                 Rear           Swing arm
                                                      Shock absorber        Front            110 mm
                                                      stroke                Rear             100 mm




                                                                                                1-2
