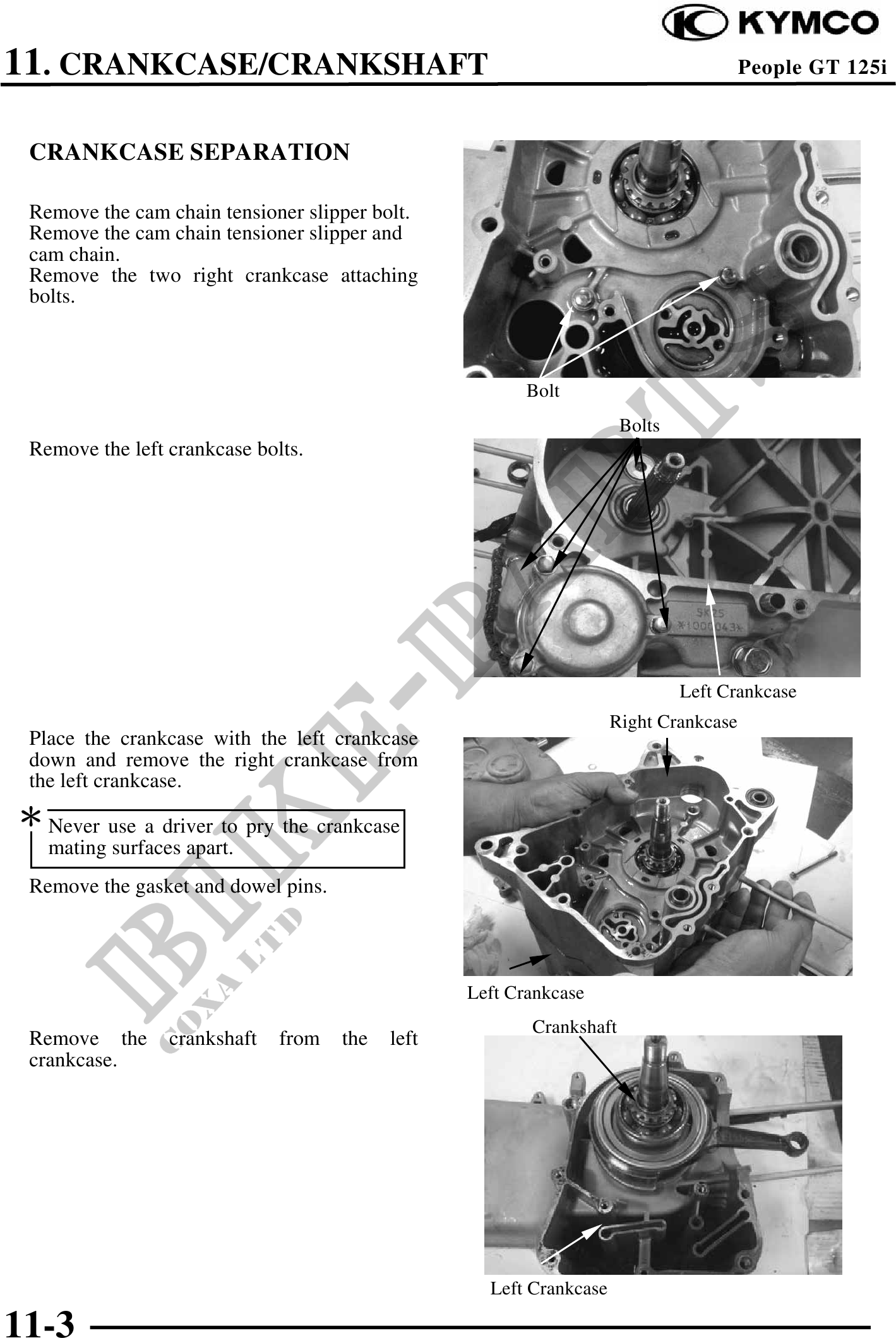

11. CRANKCASE/CRANKSHAFT People GT 125i
CRANKCASE SEPARATION
Remove the cam chain tensioner slipper bolt.
Remove the cam chain tensioner slipper and
cam chain.
Remove the two right crankcase attaching
bolts.
Bolt
Bolts
Remove the left crankcase bolts.
Left Crankcase
Right Crankcase
Place the crankcase with the left crankcase
down and remove the right crankcase from
the left crankcase.
Never use a driver to pry the crankcase
mating surfaces apart.
Remove the gasket and dowel pins.
Left Crankcase
Crankshaft
Remove the crankshaft from the left
crankcase.
Left Crankcase
11-3
