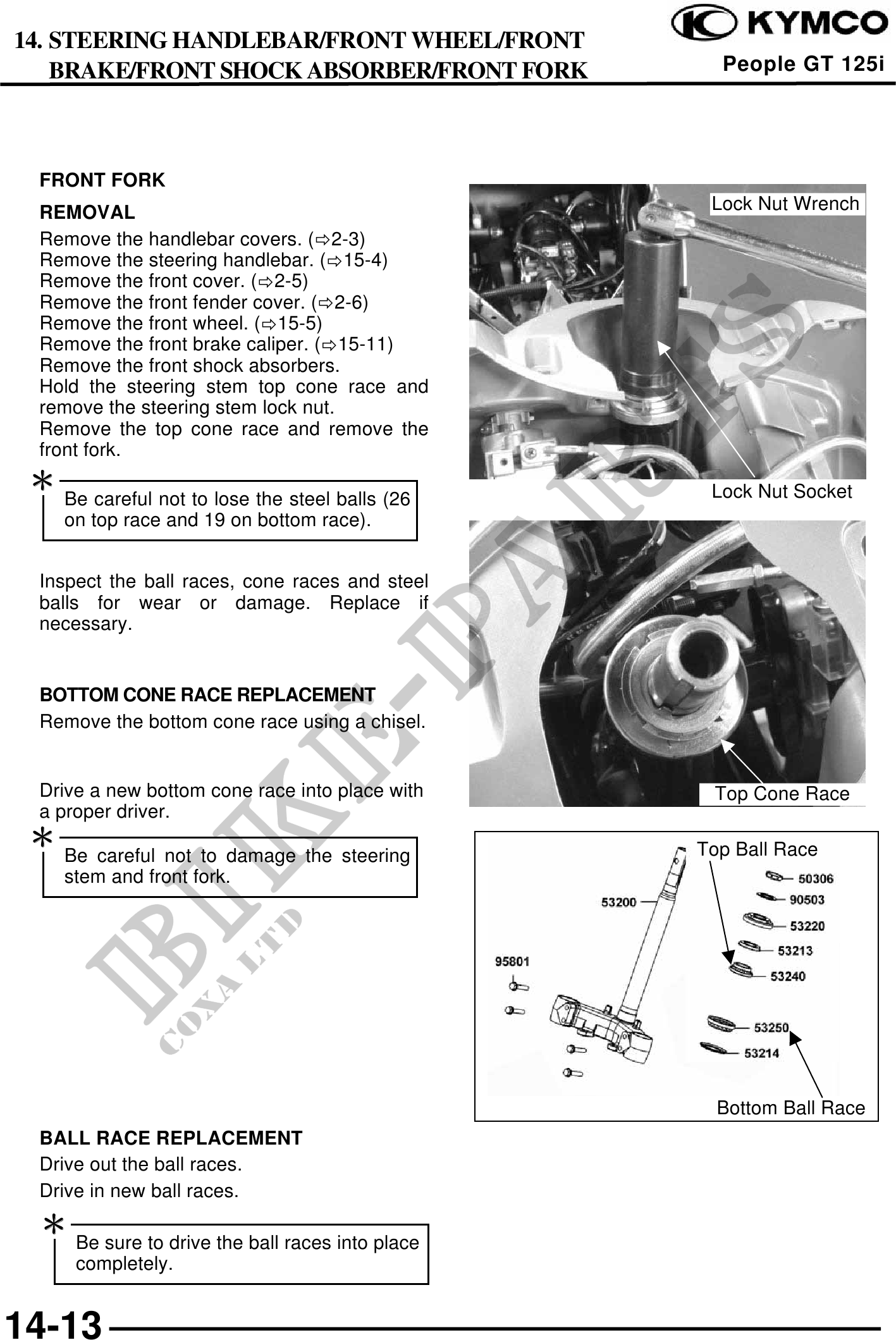

          14. STEERING HANDLEBAR/FRONT WHEEL/FRONT
    BRAKE/FRONT SHOCK ABSORBER/FRONT FORK          People GT 125i




  FRONT FORK
  REMOVAL                                         Lock Nut Wrench
  Remove the handlebar covers. ( 2-3)
  Remove the steering handlebar. ( 15-4)
  Remove the front cover. ( 2-5)
  Remove the front fender cover. ( 2-6)
  Remove the front wheel. ( 15-5)
  Remove the front brake caliper. ( 15-11)
  Remove the front shock absorbers.
  Hold the steering stem top cone race and
  remove the steering stem lock nut.
  Remove the top cone race and remove the
  front fork.
  Be careful not to lose the steel balls (26      Lock Nut Socket
     on top race and 19 on bottom race).


  Inspect the ball races, cone races and steel
  balls for wear or damage. Replace if
  necessary.


  BOTTOM CONE RACE REPLACEMENT
  Remove the bottom cone race using a chisel.


  Drive a new bottom cone race into place with    Top Cone Race
  a proper driver.
  Be careful not to damage the steering          Top Ball Race
     stem and front fork.




                                                   Bottom Ball Race
  BALL RACE REPLACEMENT
  Drive out the ball races.
  Drive in new ball races.
   Be sure to drive the ball races into place
      completely.


14-13
