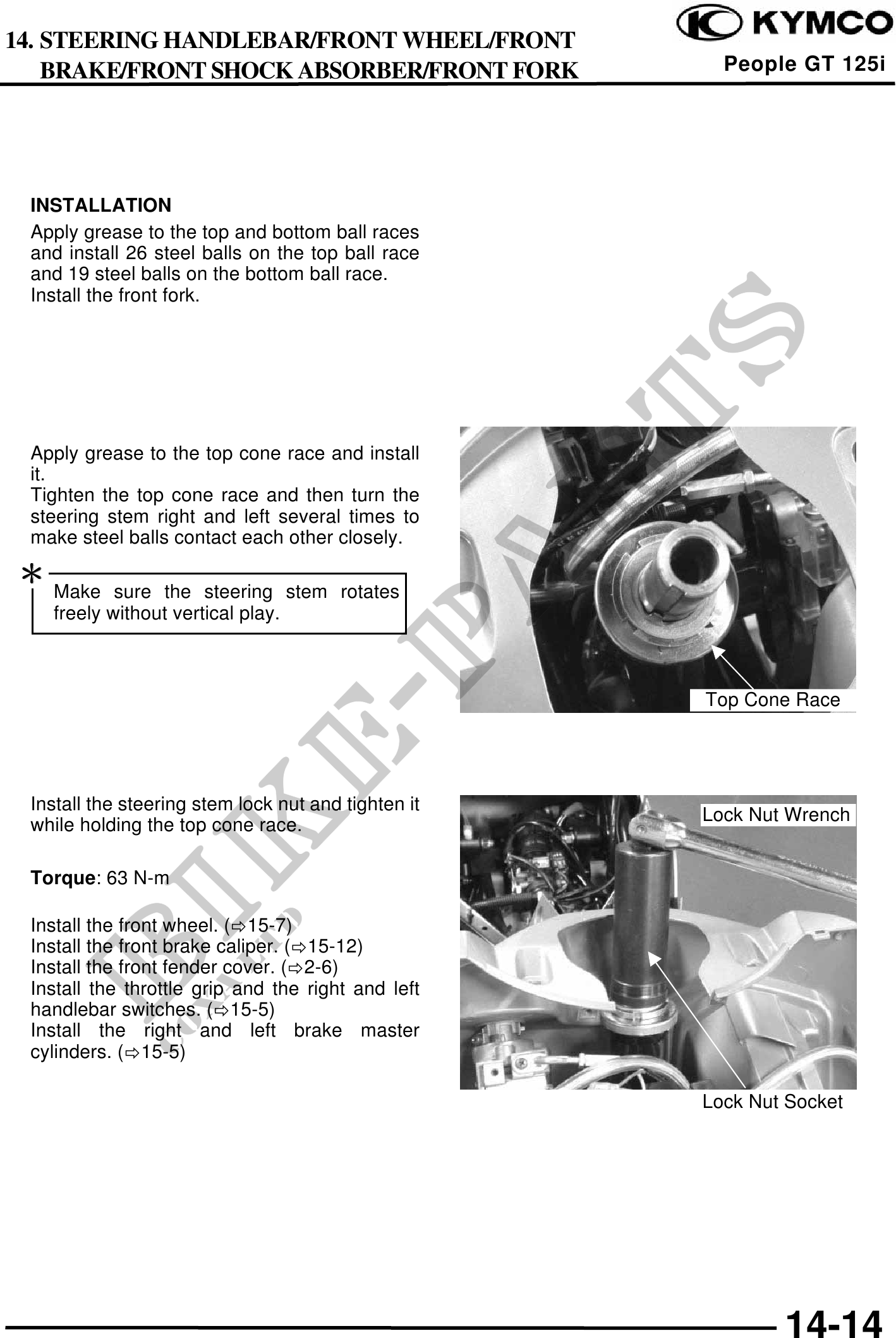

          14. STEERING HANDLEBAR/FRONT WHEEL/FRONT
    BRAKE/FRONT SHOCK ABSORBER/FRONT FORK              People GT 125i




 INSTALLATION
 Apply grease to the top and bottom ball races
 and install 26 steel balls on the top ball race
 and 19 steel balls on the bottom ball race.
 Install the front fork.




 Apply grease to the top cone race and install
 it.
 Tighten the top cone race and then turn the
 steering stem right and left several times to
 make steel balls contact each other closely.

 Make      sure the steering stem rotates
   freely without vertical play.



                                                     Top Cone Race




 Install the steering stem lock nut and tighten it
                                                     Lock Nut Wrench
 while holding the top cone race.

 Torque: 63 N-m

 Install the front wheel. ( 15-7)
 Install the front brake caliper. ( 15-12)
 Install the front fender cover. ( 2-6)
 Install the throttle grip and the right and left
 handlebar switches. ( 15-5)
 Install the right and left brake master
 cylinders. ( 15-5)

                                                     Lock Nut Socket




                                                             14-14
