          4. LUBRICATION SYSTEM                                            People GT 125i

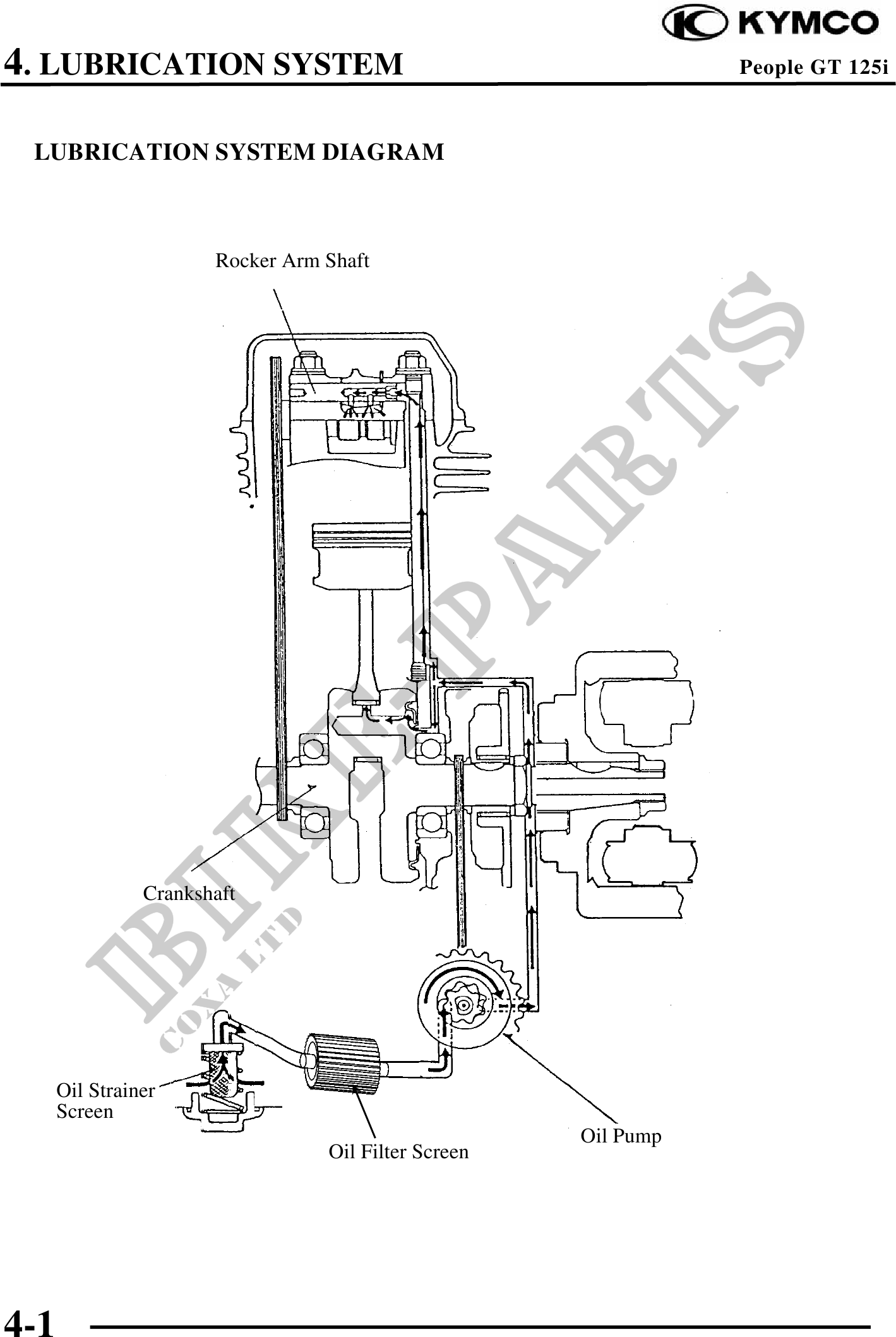

 LUBRICATION SYSTEM DIAGRAM



                       Rocker Arm Shaft




                Crankshaft




      Oil Strainer
      Screen
                                                      Oil Pump
                                  Oil Filter Screen




4-1
