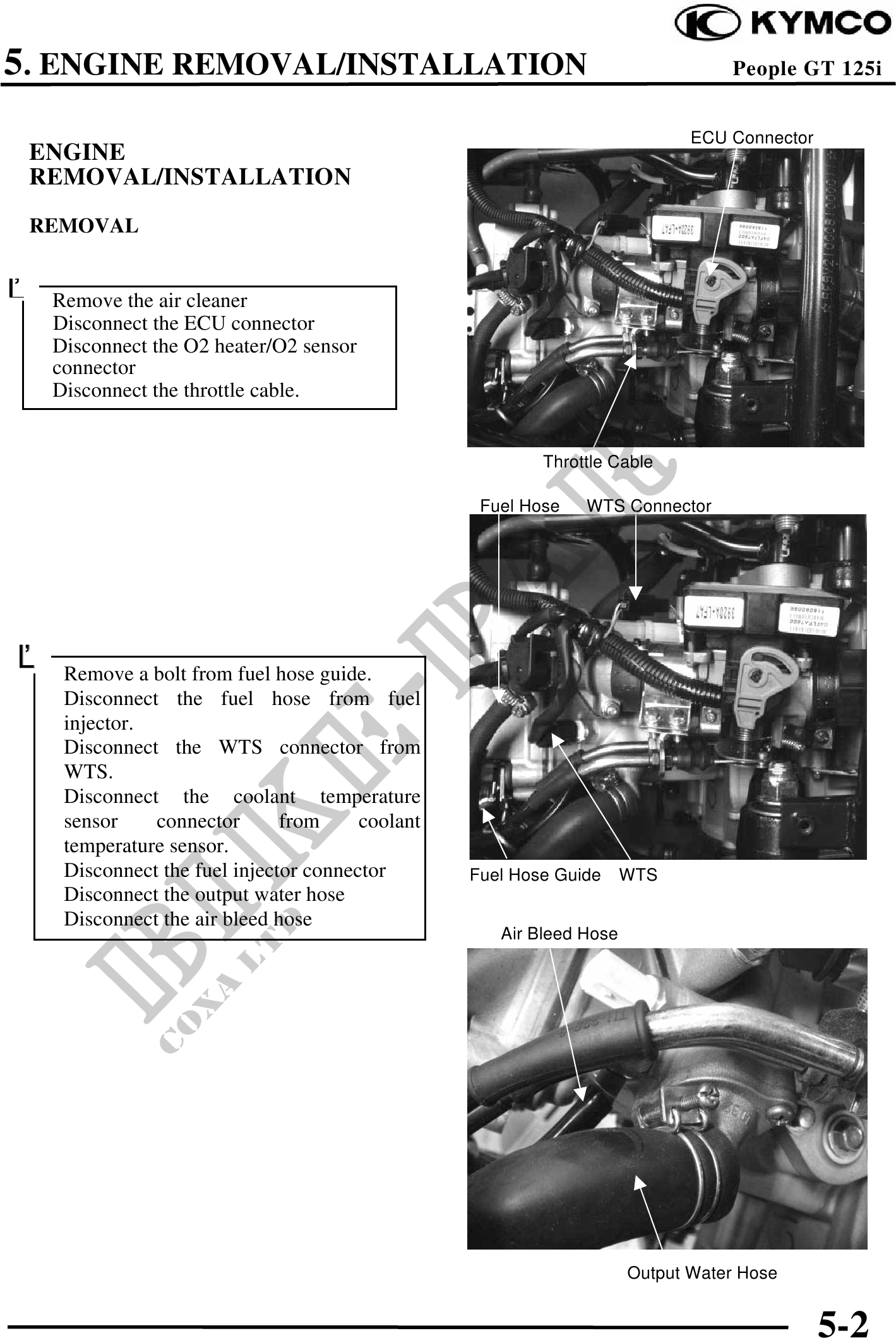

          5. ENGINE REMOVAL/INSTALLATION                                                  People GT 125i


                                                                            ECU Connector
 ENGINE
 REMOVAL/INSTALLATION
 REMOVAL


   Remove the air cleaner
   Disconnect the ECU connector
   Disconnect the O2 heater/O2 sensor
   connector
   Disconnect the throttle cable.


                                                         Throttle Cable

                                                  Fuel Hose   WTS Connector




    Remove a bolt from fuel hose guide.
    Disconnect the fuel hose from fuel
    injector.
    Disconnect the WTS connector from
    WTS.
    Disconnect the coolant temperature
    sensor    connector       from     coolant
    temperature sensor.
    Disconnect the fuel injector connector       Fuel Hose Guide     WTS
    Disconnect the output water hose
    Disconnect the air bleed hose
                                                    Air Bleed Hose




                                                                     Output Water Hose


                                                                                            5-2
