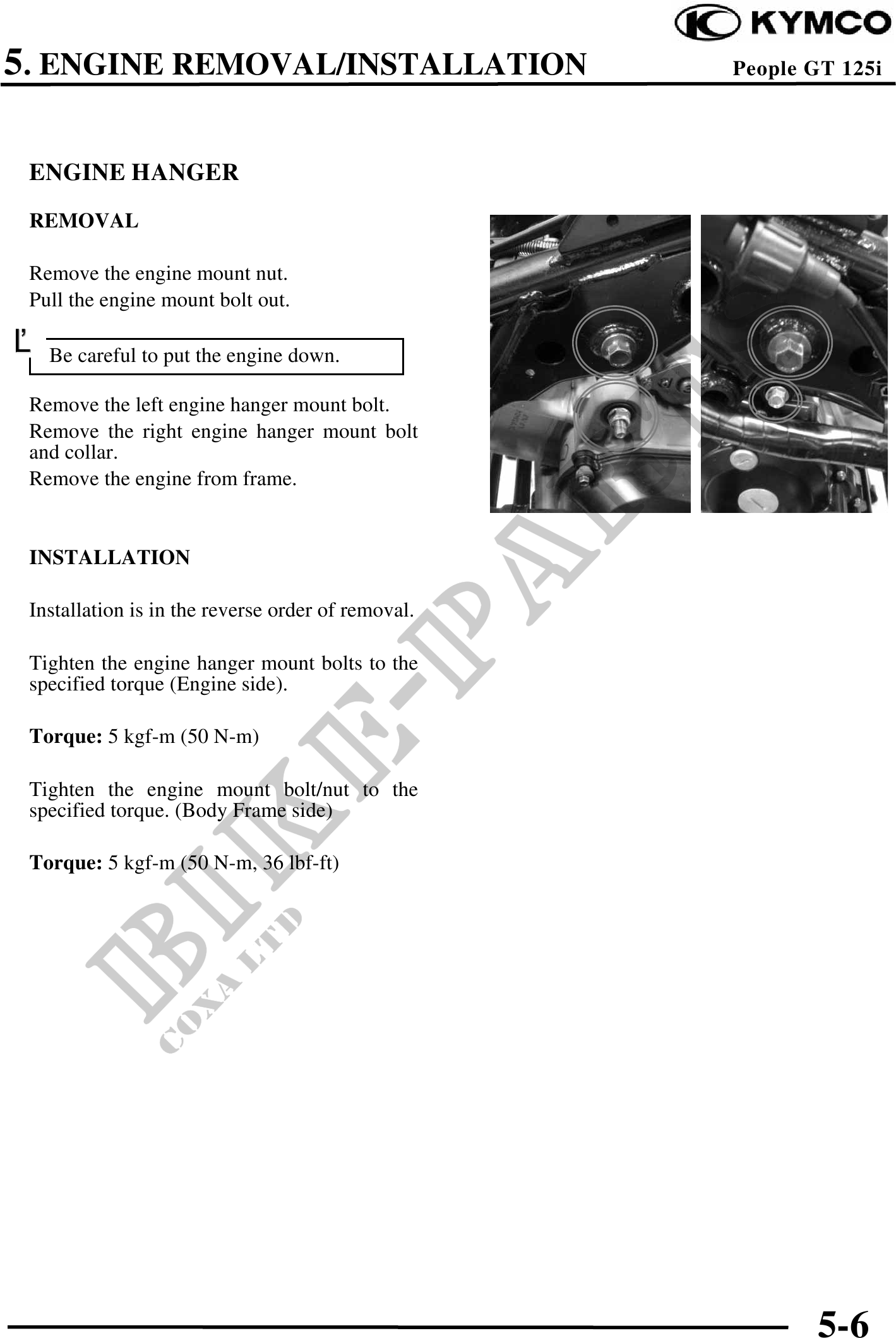

5. ENGINE REMOVAL/INSTALLATION People GT 125i
ENGINE HANGER
REMOVAL
Remove the engine mount nut.
Pull the engine mount bolt out.
Be careful to put the engine down.
Remove the left engine hanger mount bolt.
Remove the right engine hanger mount bolt
and collar.
Remove the engine from frame.
INSTALLATION
Installation is in the reverse order of removal.
Tighten the engine hanger mount bolts to the
specified torque (Engine side).
Torque: 5 kgf-m (50 N-m)
Tighten the engine mount bolt/nut to the
specified torque. (Body Frame side)
Torque: 5 kgf-m (50 N-m, 36 lbf-ft)
5-6
