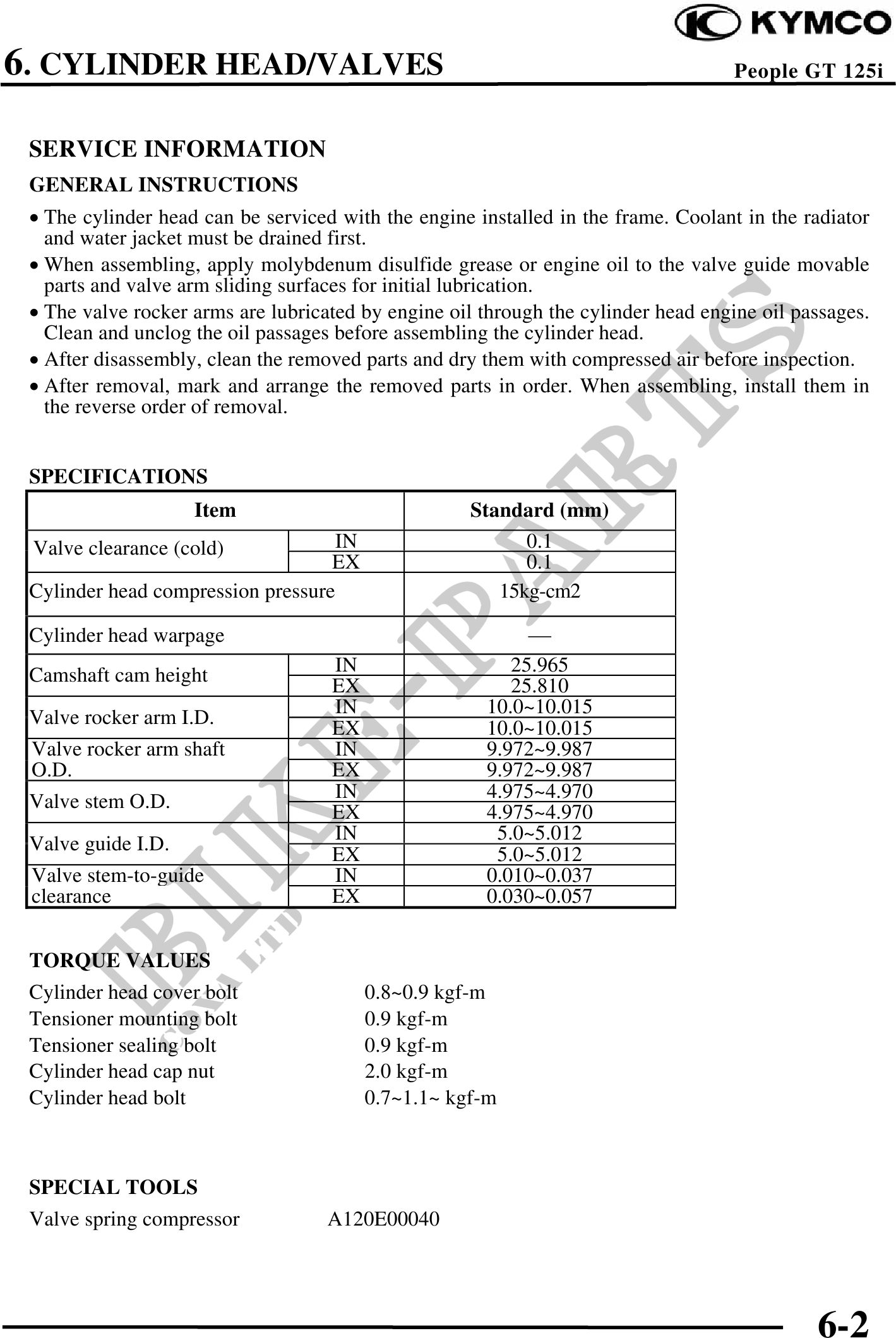

          6. CYLINDER HEAD/VALVES                                                             People GT 125i


 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · The cylinder head can be serviced with the engine installed in the frame. Coolant in the radiator
   and water jacket must be drained first.
 · When assembling, apply molybdenum disulfide grease or engine oil to the valve guide movable
   parts and valve arm sliding surfaces for initial lubrication.
 · The valve rocker arms are lubricated by engine oil through the cylinder head engine oil passages.
   Clean and unclog the oil passages before assembling the cylinder head.
 · After disassembly, clean the removed parts and dry them with compressed air before inspection.
 · After removal, mark and arrange the removed parts in order. When assembling, install them in
   the reverse order of removal.


 SPECIFICATIONS
                    Item                            Standard (mm)
 Valve clearance (cold)            IN                     0.1
                                   EX                     0.1
 Cylinder head compression pressure                    15kg-cm2

 Cylinder head warpage
                                    IN                   25.965
 Camshaft cam height                EX                   25.810
                                    IN                10.0~10.015
 Valve rocker arm I.D.              EX                10.0~10.015
 Valve rocker arm shaft             IN                9.972~9.987
 O.D.                               EX                9.972~9.987
                                    IN                4.975~4.970
 Valve stem O.D.                    EX                4.975~4.970
                                    IN                 5.0~5.012
 Valve guide I.D.                   EX                 5.0~5.012
 Valve stem-to-guide                IN                0.010~0.037
 clearance                          EX                0.030~0.057


 TORQUE VALUES
 Cylinder head cover bolt                0.8~0.9 kgf-m
 Tensioner mounting bolt                 0.9 kgf-m
 Tensioner sealing bolt                  0.9 kgf-m
 Cylinder head cap nut                   2.0 kgf-m
 Cylinder head bolt                      0.7~1.1~ kgf-m



 SPECIAL TOOLS
 Valve spring compressor            A120E00040




                                                                                             6-2
