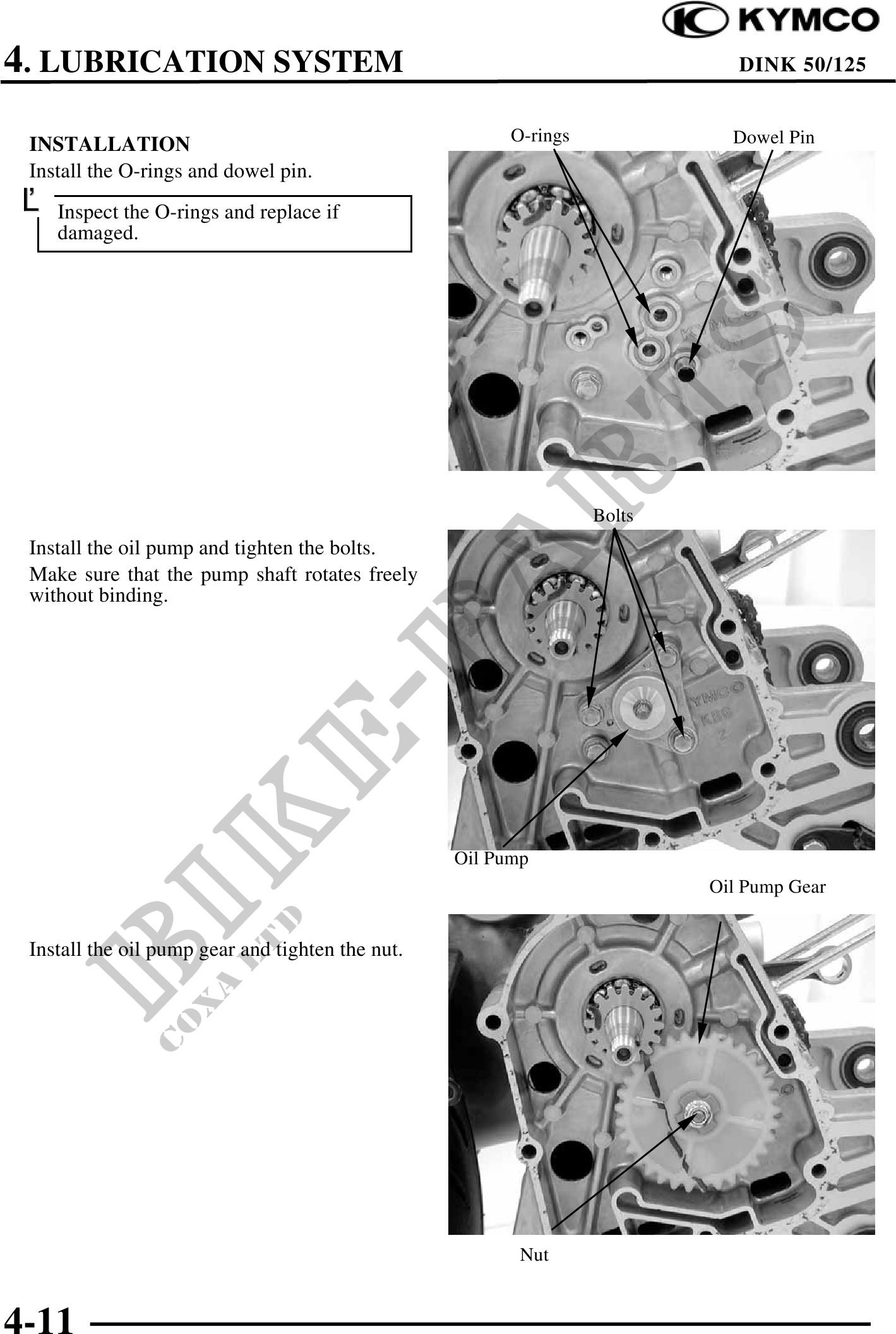

          4. LUBRICATION SYSTEM                                                        DINK 50/125


                                                        O-rings             Dowel Pin
 INSTALLATION
 Install the O-rings and dowel pin.
 Inspect the O-rings and replace if
    damaged.




                                                                  Bolts
 Install the oil pump and tighten the bolts.
 Make sure that the pump shaft rotates freely
 without binding.




                                                  Oil Pump
                                                                          Oil Pump Gear


 Install the oil pump gear and tighten the nut.




                                                         Nut


4-11
