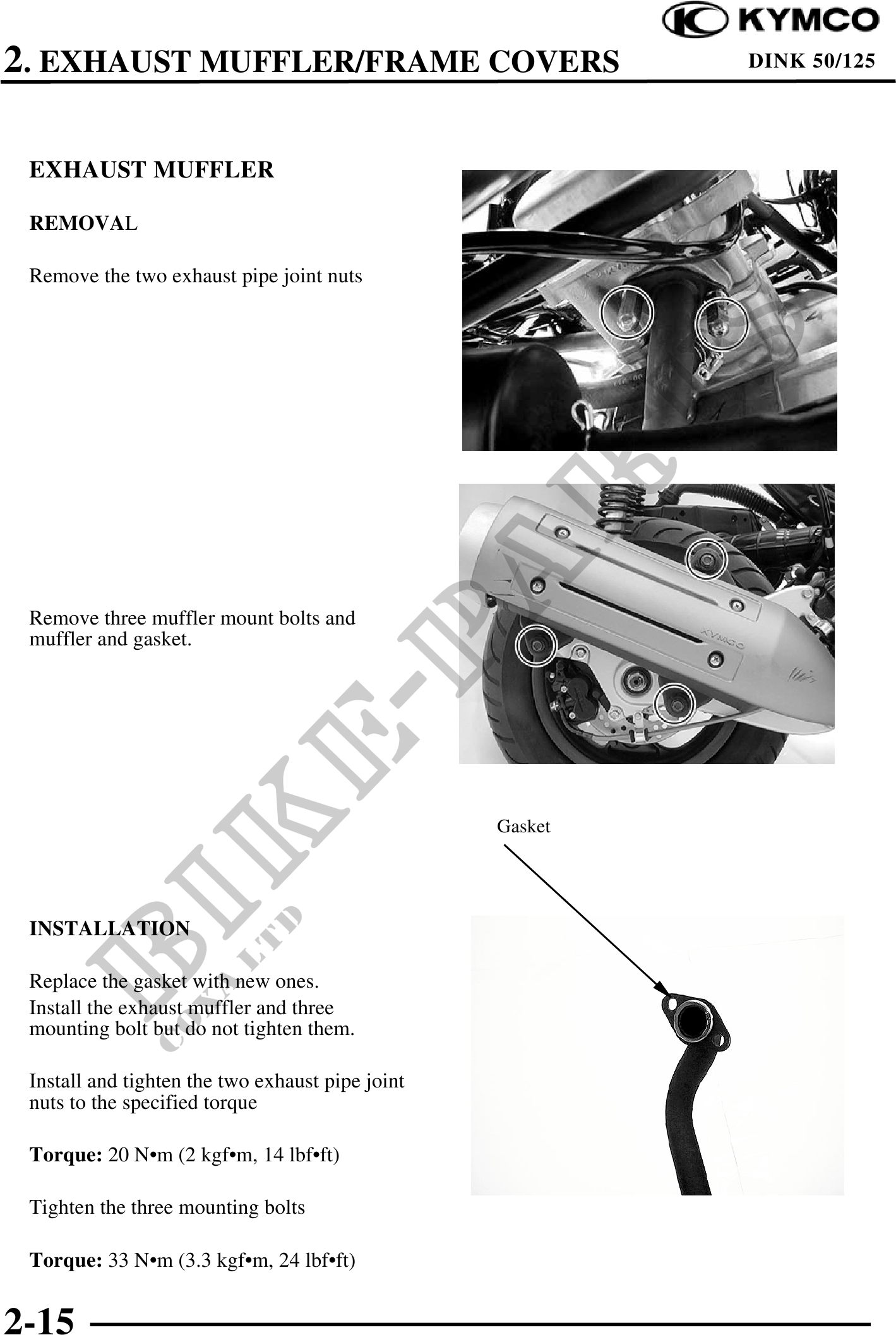

          2. EXHAUST MUFFLER/FRAME COVERS                            DINK 50/125




 EXHAUST MUFFLER

 REMOVAL

 Remove the two exhaust pipe joint nuts




 Remove three muffler mount bolts and
 muffler and gasket.




                                                  Gasket




 INSTALLATION

 Replace the gasket with new ones.
 Install the exhaust muffler and three
 mounting bolt but do not tighten them.

 Install and tighten the two exhaust pipe joint
 nuts to the specified torque

 Torque: 20 N·m (2 kgf·m, 14 lbf·ft)

 Tighten the three mounting bolts

 Torque: 33 N·m (3.3 kgf·m, 24 lbf·ft)
