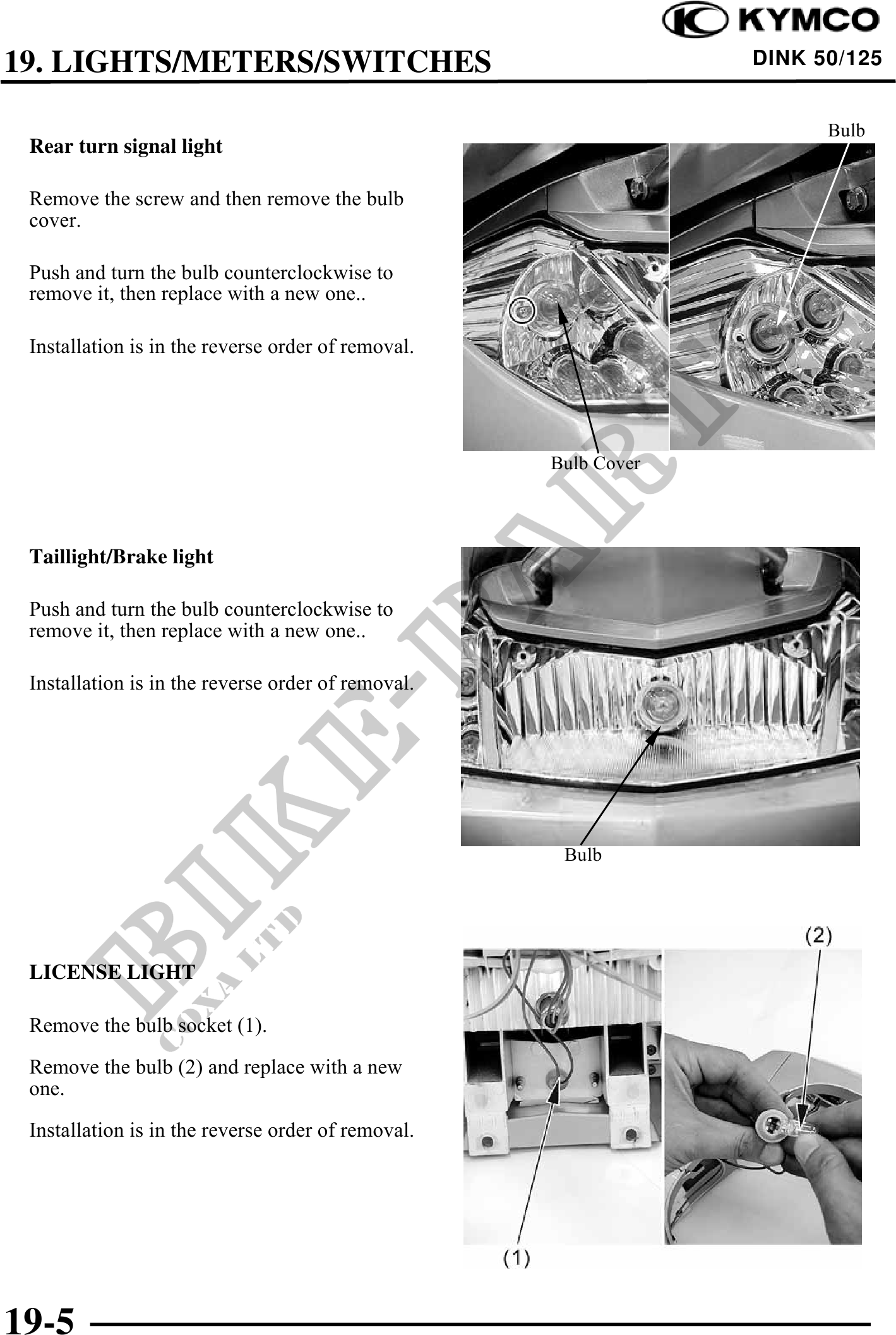

          19. LIGHTS/METERS/SWITCHES                                       DINK 50/125


                                                                       Bulb
 Rear turn signal light

 Remove the screw and then remove the bulb
 cover.

 Push and turn the bulb counterclockwise to
 remove it, then replace with a new one..

 Installation is in the reverse order of removal.




                                                    Bulb Cover



 Taillight/Brake light

 Push and turn the bulb counterclockwise to
 remove it, then replace with a new one..

 Installation is in the reverse order of removal.




                                                     Bulb




 LICENSE LIGHT

 Remove the bulb socket (1).

 Remove the bulb (2) and replace with a new
 one.

 Installation is in the reverse order of removal.
