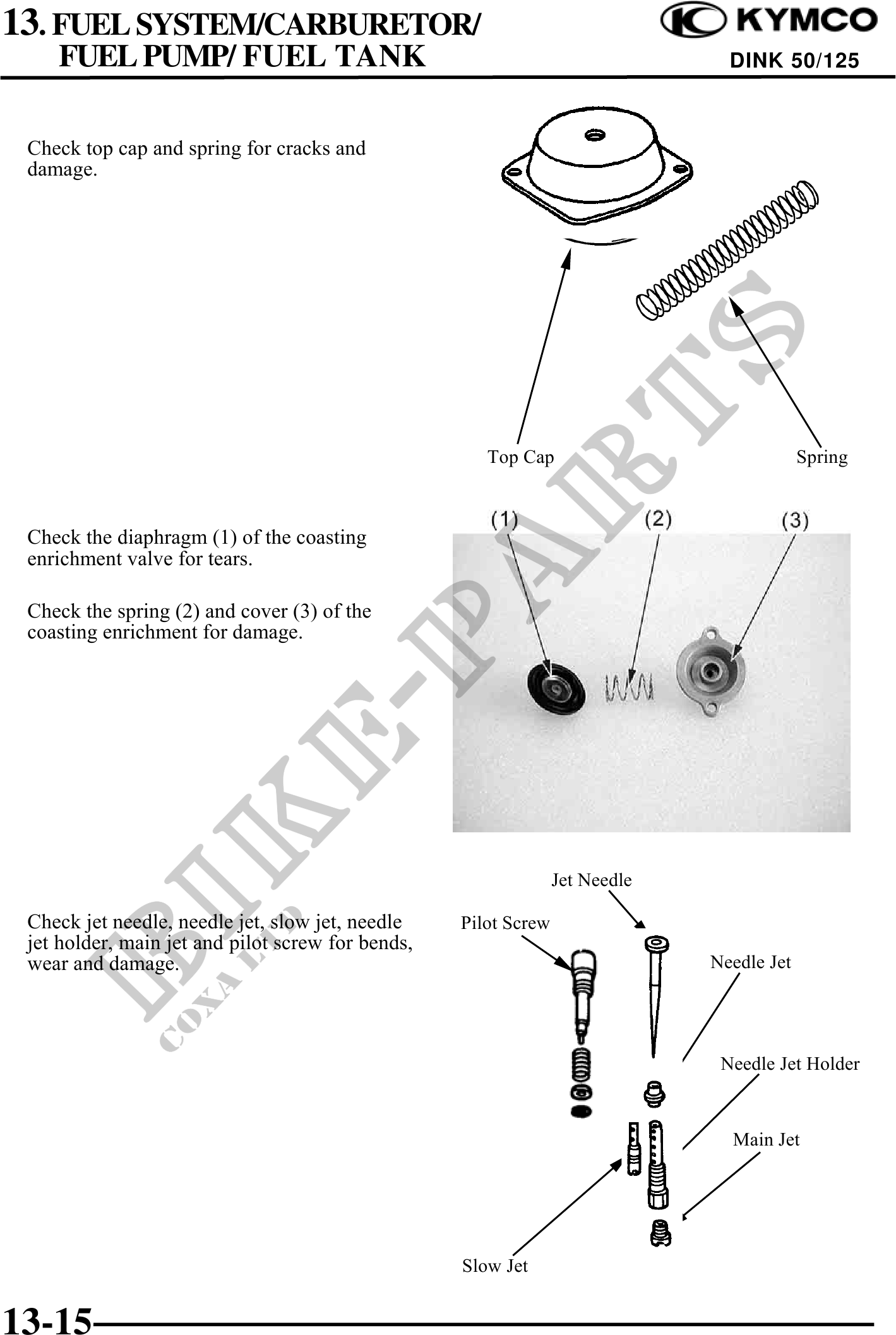

          13. FUEL SYSTEM/CARBURETOR/
    FUEL PUMP/ FUEL TANK                                                        DINK 50/125



 Check top cap and spring for cracks and
 damage.




                                                      Top Cap                              Spring



 Check the diaphragm (1) of the coasting
 enrichment valve for tears.

 Check the spring (2) and cover (3) of the
 coasting enrichment for damage.




                                                                 Jet Needle

 Check jet needle, needle jet, slow jet, needle    Pilot Screw
 jet holder, main jet and pilot screw for bends,
 wear and damage.                                                             Needle Jet




                                                                               Needle Jet Holder


                                                                                Main Jet




                                                   Slow Jet


13-15
