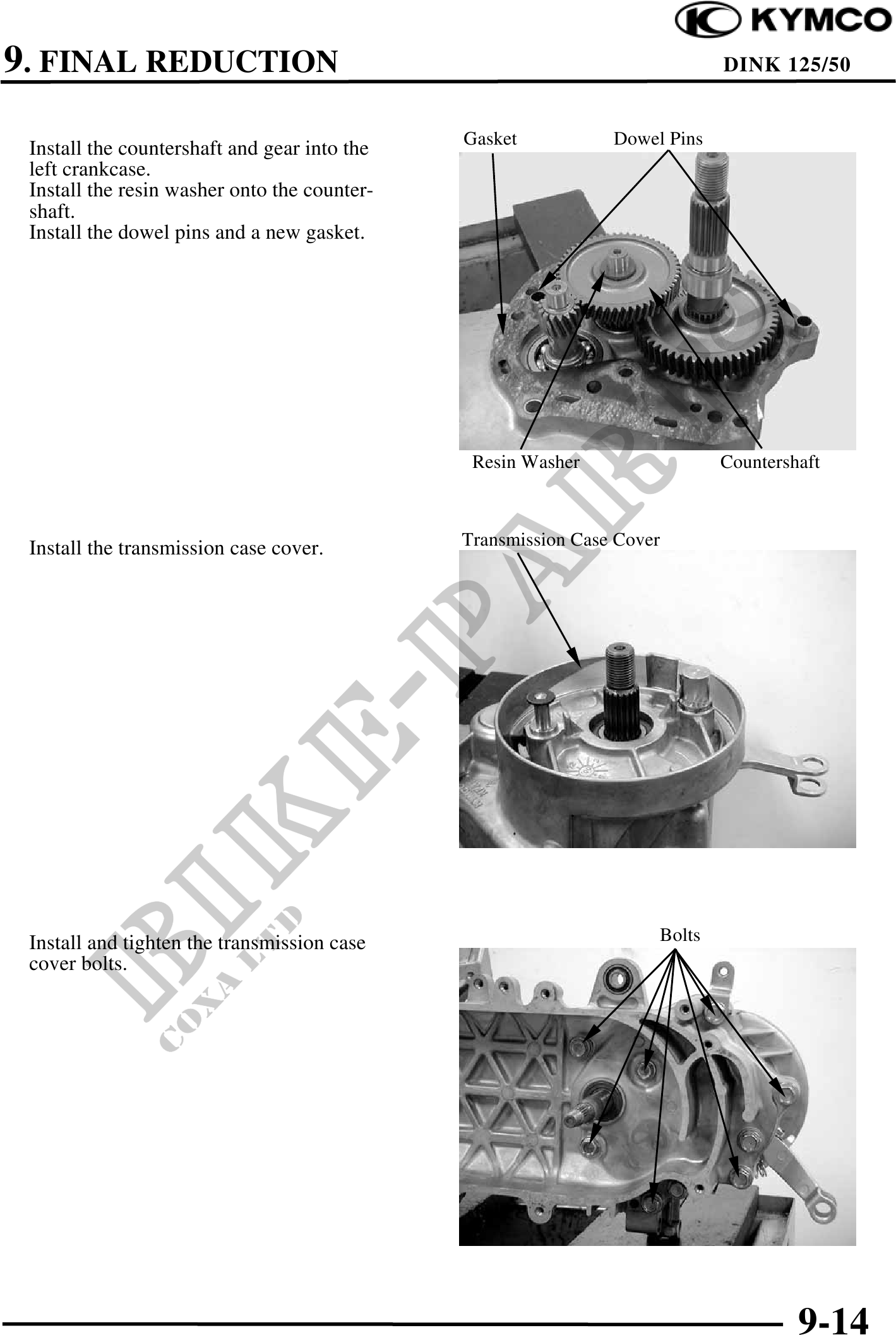

          9. FINAL REDUCTION                                                              DINK 125/50


                                              Gasket           Dowel Pins
 Install the countershaft and gear into the
 left crankcase.
 Install the resin washer onto the counter-
 shaft.
 Install the dowel pins and a new gasket.




                                               Resin Washer                     Countershaft



 Install the transmission case cover.         Transmission Case Cover




 Install and tighten the transmission case                              Bolts
 cover bolts.
