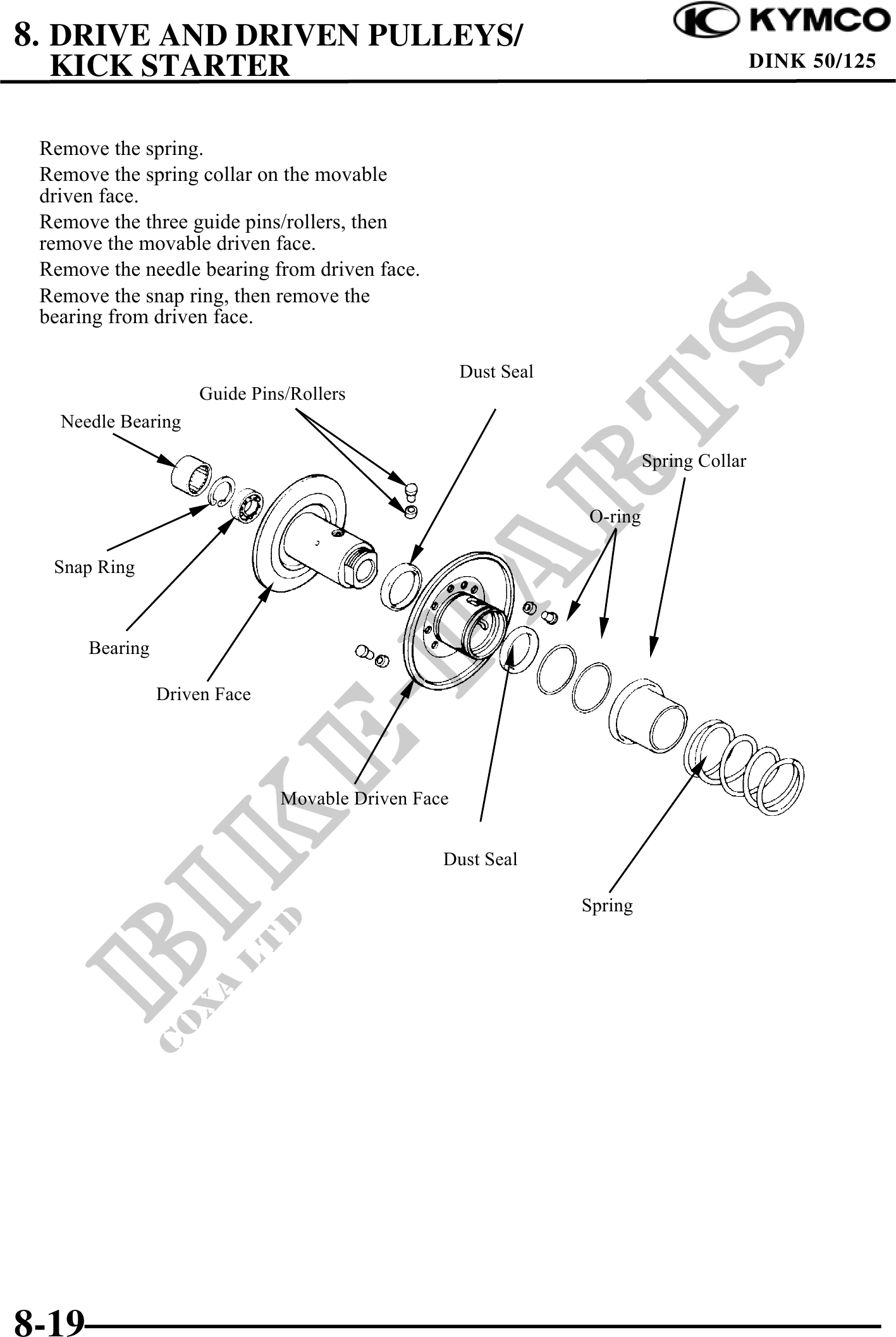

8. DRIVE AND DRIVEN PULLEYS/
KICK STARTER DINK 50/125
Remove the spring.
Remove the spring collar on the movable
driven face.
Remove the three guide pins/rollers, then
remove the movable driven face.
Remove the needle bearing from driven face.
Remove the snap ring, then remove the
bearing from driven face.
Dust Seal
Guide Pins/Rollers
Needle Bearing
Spring Collar
O-ring
Snap Ring
Bearing
Driven Face
Movable Driven Face
Dust Seal
Spring
8-19
